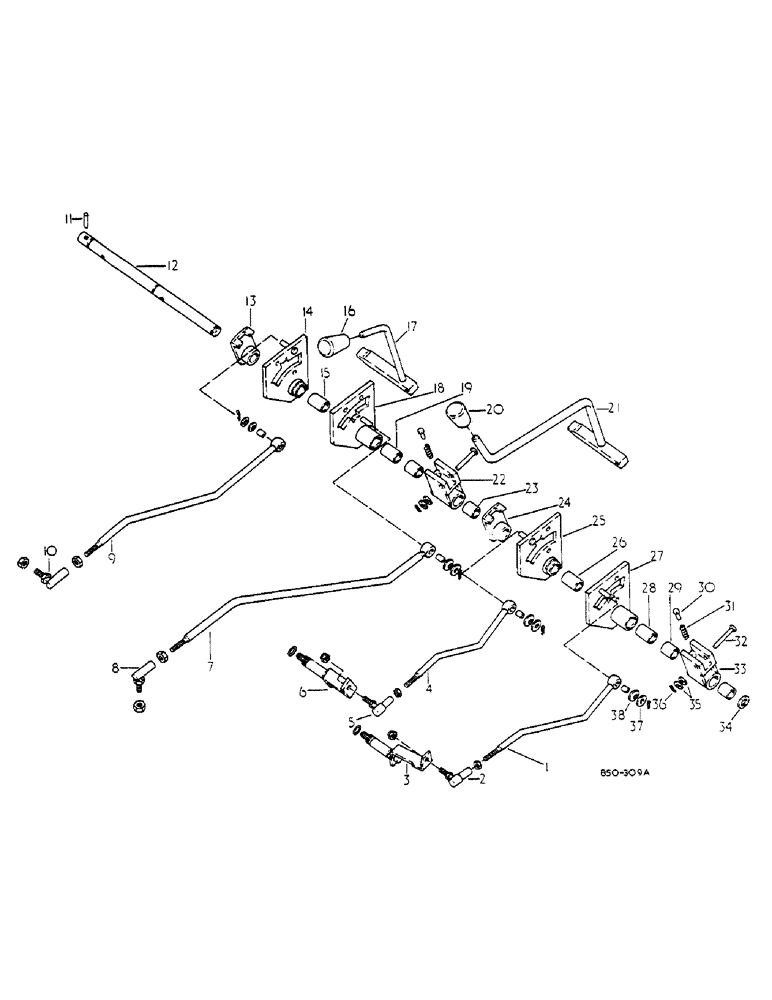

Запчасти Case IH 585 (07-087) - TRANSMISSION CONTROLS, EXTERNAL, 585 SLOW AND FAST SPEED (04) - Drive Train

1

3129228R91

ROD ASSY.

RANGE SHIFT FRONT, INCLUDES BUSHING

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

ROD END EYE

1шт.

2

1500497C1

BALL JOINT

INCLUDES NUTS

1шт.

1500536C1

JAM NUT

7/16-28 HEX JAM

1шт.

231-4617

LOCK NUT,7/16"-20, GB

7/16-20 PREVAILING TORQUE HEX

1шт.

702455

NUT

7/16-20 PREV TORQUE TURRET, OPTIONAL

1шт.

3

405164R3

ARM ASSY.

RANGE SHIFT OUTER FRONT, INCLUDES WASHERS AND O-RING

1шт.

Q3501

WASHER

25/32 X 1-1/4 X 060

2шт.

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 X 3/4 X 3/32

1шт.

4

3129232R91

ROD ASSY.

RANGE SHIFT FRONT, INCLUDES BUSHING

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

ROD END EYE

1шт.

5

1500497C1

BALL JOINT

INCLUDES NUTS

1шт.

1500536C1

JAM NUT

7/16-28 HEX JAM

1шт.

274841

BEARING CONE,2.9528" ID x 0.9843"

7/16-20 PREVAILING TORQUE HEX

1шт.

702455

NUT

7/16-20 PREV TORQUE TURRET, OPTIONAL

1шт.

6

405167R2

ARM

ASSY, RANGE SHIFT OUTER FRONT, INCLUDES WASHERS AND O-RING

1шт.

Q3501

WASHER

25/32 X 1-1/4 X 060

2шт.

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 X 3/4 X 3/32

1шт.

7

3129226R91

ROD ASSY.

SPEED SHIFT 3RD/4TH, FAST SPEED, INCLUDES BUSHING

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

ROD END EYE

1шт.

8

653867C1

BALL JOINT

3/8 IH TYPE G4, INCLUDES NUTS AND WASHERS

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

Q3641

WASHER

13/32 X 3/4 X 020

2шт.

3048059R91

LOCK NUT

3/8-24 HEX

1шт.

9

3129222R91

ROD ASSY.

SPEED SHIFT 1ST/2ND, INCLUDES BUSHING

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

ROD END EYE

1шт.

10

653867C1

BALL JOINT

3/8 IH TYPE GA, INCLUDES NUTS AND WASHERS

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

Q3641

WASHER

13/32 X 3/4 X 020

2шт.

3048059R91

LOCK NUT

3/8-24 HEX

1шт.

11

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

3шт.

12

3129155R1

SHAFT

SHAFT, RANGE TRANS SHIFT LEVER IDLER

1шт.

13

3129218R1

HUB

GATE ASSY, SHIFT

1шт.

14

3129211R91

LEVER ASSY.

SPEED SHIFT 1ST/2ND, INCLUDES PIN

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

15

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

LEVER

1шт.

16

3129267R1

BALL KNOB

SPEED SHIFT LEVER

1шт.

17

3129265R2

LEVER

SPEED SHIFT

1шт.

18

3129265R1

LEVER

SPEED SHIFT

1шт.

19

3129217R91

LEVER ASSY.

SPEED SHIFT 3RD/4TH, FAST SPEED

1шт.

19

3129216R91

LEVER ASSY.

SPEED SHIFT 3RD/4TH, SLOW SPEED, INCLUDES PIN

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

20

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

LEVER

1шт.

21

3129267R1

BALL KNOB

RANGE SHIFT LEVER

1шт.

22

3129268R2

LEVER ASSY.

RANGE SHIFT

1шт.

23

3129214R91

HOUSING

ASSY, SELECTOR ARM

1шт.

24

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

25

3129218R1

HUB

GATE ASSY, SHIFT

1шт.

26

3129210R91

LEVER ASSY.

RANGE REAR, INCLUDES PIN

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

27

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

LEVER

1шт.

28

3129209R91

LEVER ASSY.

RANGE FRONT, INCLUDES PIN

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

29

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

LEVER

1шт.

30

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

31

22938R1

HEADED PIN,5/16" x 1/2"

2шт.

32

71486C1

SPRING

2шт.

33

23225R1

HEADED PIN,3/8" x 2"

2шт.

34

3129214R91

HOUSING

SELECTOR ARM

1шт.

35

454331R1

SNAP RING,#87, Ext

Includes washers

2шт.

615192R1

WASHER

29/32 X 1-1/4 X 027

2шт.

36

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

2шт.

37

103384

COTTER PIN,1/8" x 3/4"

3/8 X 2

2шт.

38

Q3641

WASHER

4шт.

39

83723R1

WAVE WASHER

WAVE

4шт.
