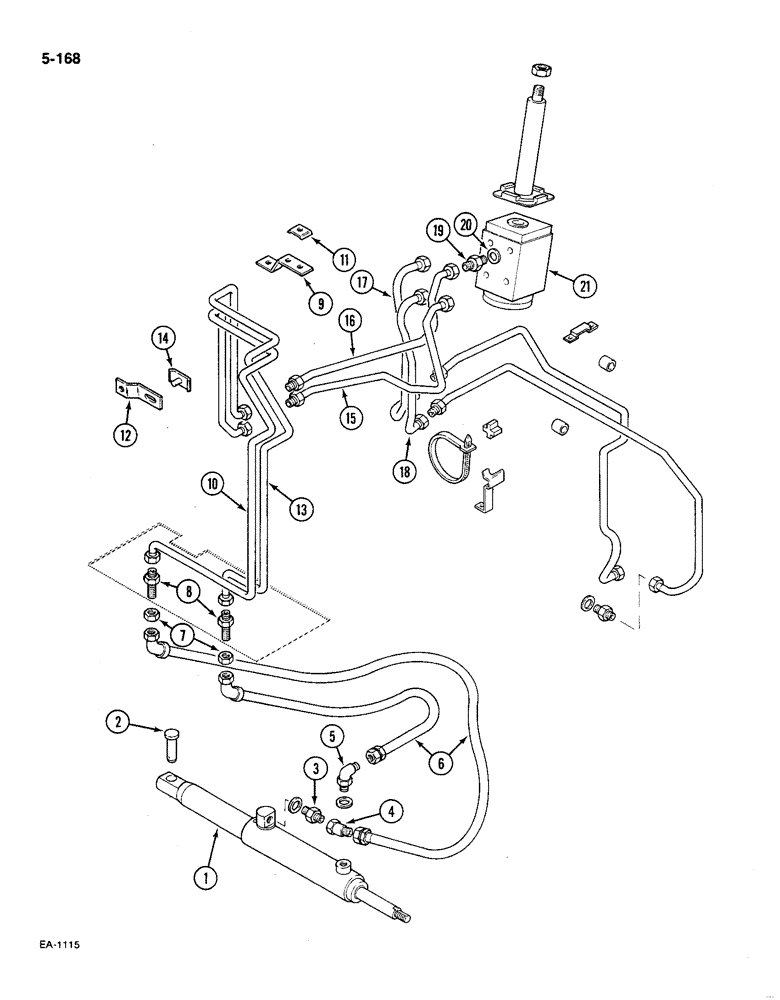

Запчасти Case IH 585 (5-168) - POWER STEERING, PRIOR TO P.I.N. 18001, WITH HEAVY DUTY FRONT AXLE AND FABRICATED BOLSTER (05) - STEERING

1

3118502R93

STEERING CYLINDER

CYLINDER power steering, see Figure 5-192, Includes: Ref. 2

1шт.

536314R92

SERVICE KIT

KIT service, O-ring and seal

1шт.

2

518505R1

HEADED PIN,3/4" x 3"

PIN headed, 3/4 x 3 inch

1шт.

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

3

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION short, 3/8 inch OD tube

1шт.

4

9410254

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

45 degree, swivel, 3/8 inch OD tube

1шт.

Ref #4 - If 90 degree elbow is needed, use 218-980

1шт.

5

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

90 degree adjustable, 3/8 inch OD tube

1шт.

6

3121235R1

HOSE

power steering cylinder

2шт.

7

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT lock, bulkhead union, 3/8 inch

2шт.

8

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION tube, bulkhead, 3/8 inch

2шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

2шт.

9

529646R1

BRACKET

front manifold support

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

1шт.

10

3125265C1

TUBE power steering, right forward

1шт.

11

384891R11

CLAMP

tube

1шт.

179795

TILLAGE BLADE

hex, 1/4 NC x 3/4 inch

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

529642R1

BRACKET

front manifold

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

3125264C1

TUBE power steering, left forward

1шт.

14

529644R1

CLAMP

tube

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex, 1/4 NC x 7/8 inch

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

95-11028

WASHER,1/4"

plain, 0.281 x 0.625 x 0.051 inch

1шт.

15

3116268R3

TUBE ASSY.

TUBE power steering, right rear

1шт.

16

3116267R1

TUBE ASSY.

TUBE power steering, left rear

1шт.

17

3116272R2

TUBE ASSY.

TUBE power steering return, front

1шт.

Rref #17 (P/N 3116272R2) - if 1/2" tubes are needed, see figure 5-178, ref 4 & 5.

1шт.

18

3116271R2

TUBE ASSY.,0.375" OD, 12.44, 4.28" Length

TUBE power steering pressure, front

1шт.

19

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION straight, 3/8 to 1/2 inch

4шт.

20

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6

4шт.

21

67698C93

VALVE

integral power steering, see Figure 5-202

1шт.
