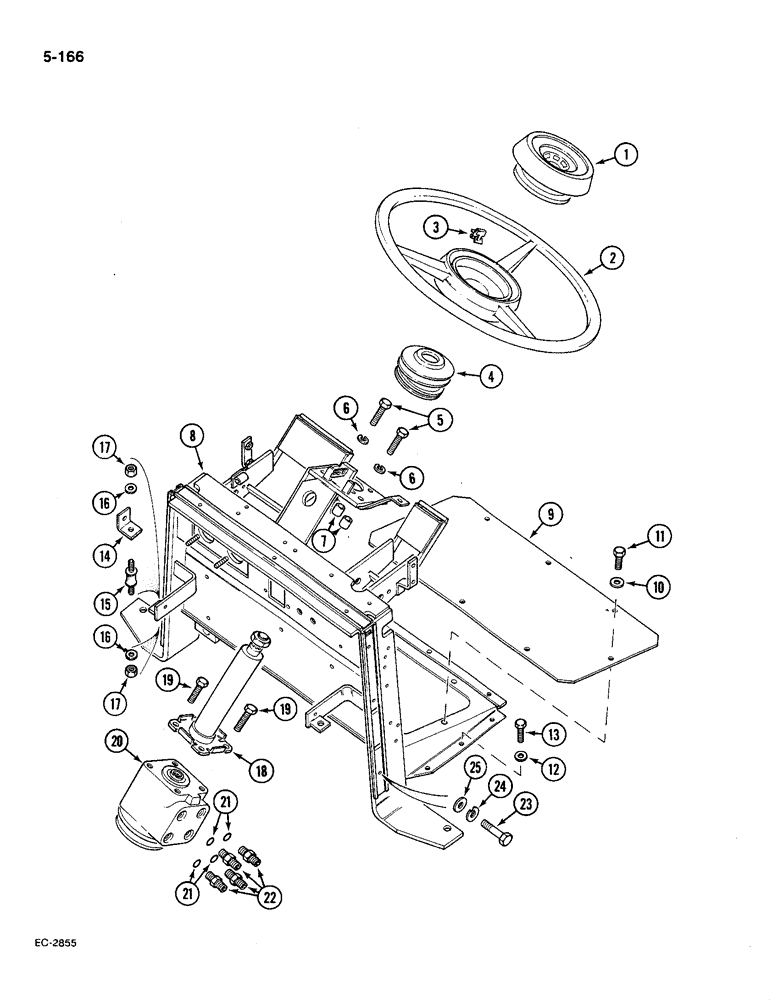

Запчасти Case IH 585 (5-166) - STEERING WHEEL, SUPPORT AND VALVE, WITH CAB (05) - STEERING

1

68837C2

CAP

steering wheel

1шт.

2

3123597R91

HANDWHEEL

WHEEL steering, 408 mm dia., Includes: Ref. 3

1шт.

3

3123598R1

CLIP,ELECTRICAL

CLIP retaining

3шт.

4

3399137R1

BELLOWS

BOOT rubber

1шт.

5

138244

HEX SOC SCREW,3/8" - 16 x 1 1/2"

2шт.

6

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

pipe, 3/8 x 1 inch

2шт.

8

3399466R5

SUPPORT

steering

1шт.

9

3129869R1

PANEL

1шт.

Ref #9 - 1536046R1- Toe Board Panel Assy., 1536047C1- Toe Board Insulation, 1536048C1- Heel Board Insulation, 1536049C1- Foot Well Center Insulation, 1536050C1- Foot Well Left Side Insululation, 1536051C1- Foot Well Right Side Insulation, 1536055C1- Console Insulation

1шт.

10

934675R1

WASHER,M8 x 16 x 1.6

Flat, ZND M8 x 16 x 1.6

8шт.

11

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8шт.

12

934673R1

WASHER,M8.4 x 25 x 2

plain, M8

10шт.

13

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8шт.

13

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

14

3129867R1

SUPPORT

BRACKET hood suppport

2шт.

15

3129866R1

SHOCK ABSORBER

BLOCK isolating

2шт.

16

934948R1

WASHER,M6

flat, 6.4 x 12.5 x 1.6 mm

4шт.

17

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

4шт.

18

3129610R91

STEERING COLUMN

POST power steering

1шт.

19

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

20

67698C3

VALVE integral, power steering, see Figure 5-202, Serial Range: -18001

1шт.

20

86107C91

VALVE integral, power steering, see Figure 5-204, Start Serial: 18001

1шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6

4шт.

22

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION straight, 3/8 to 1/2 inch

4шт.

23

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

hex, M10 x 20 mm, class 8.8, ZND

4шт.

24

933965R1

LOCK WASHER,M10

2шт.

25

934674R1

WASHER,M10.5 x 30 x 2.5

flat, M10

4шт.
