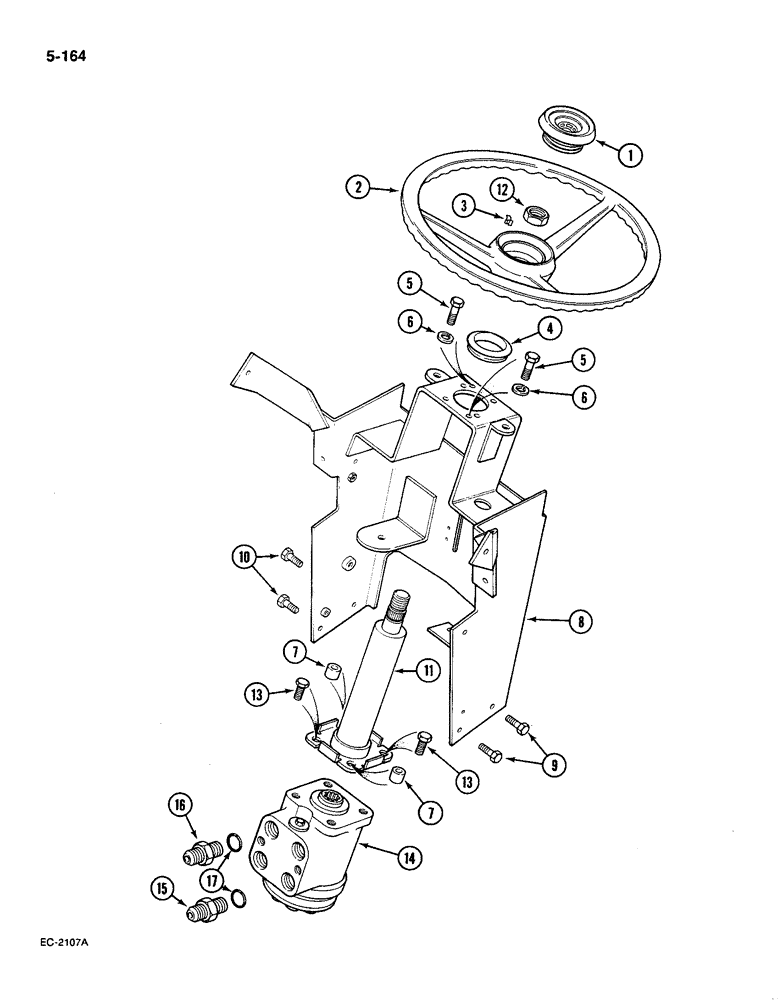

Запчасти Case IH 585 (5-164) - STEERING WHEEL, SUPPORT AND VALVE, WITHOUT CAB (05) - STEERING

1

68837C2

CAP

steering wheel

1шт.

2

3123597R91

HANDWHEEL

WHEEL steering, 408 mm dia

1шт.

2

3123302R91

HANDWHEEL

WHEEL steering, 408 mm dia, low dish, low profile tractor, Includes: Ref. 3

1шт.

3

3123598R1

CLIP,ELECTRICAL

CLIP retaining

1шт.

4

3123366R1

PLUG

rubber

1шт.

5

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8"-16 NC x 1-1/4", G5

2шт.

6

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

pipe, 3/8 x 1 inch

2шт.

8

3121632R2

SUPPORT ASSY.

SUPPORT steering, Serial Range: -18001

1шт.

8

99968C1

STEERING SUPPORT

SUPPORT steering, Start Serial: 18001

1шт.

8

3121632R2

SUPPORT ASSY.

SUPPORT steering, tractors with forward and reverse

1шт.

8

1333059C1

SUPPORT

steering (orchard tractor)

1шт.

9

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

hex, 3/8 NC x 3/4 inch, grade 5

2шт.

11

3121187R91

SHAFT

steering, with nut, Includes: Ref. 12

1шт.

12

F19646

LOCK NUT,13/16"-20, Thin

NUT hex, steering shaft, 13/16 inch

1шт.

13

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

14

67698C93

VALVE

integral power steering, see Figure 5-202, Serial Range: -18001

1шт.

14

88107C91

PUMP

VALVE integral, power steering, see Figure 5-204, Start Serial: 18001

1шт.

15

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION straight, 3/8 to 1/2 inch

2шт.

16

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION straight, 3/8 to 1/2 inch, Serial Range: -18001

2шт.

16

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION short, 1/2 inch OD tube, Start Serial: 18001

2шт.

17

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6

4шт.
