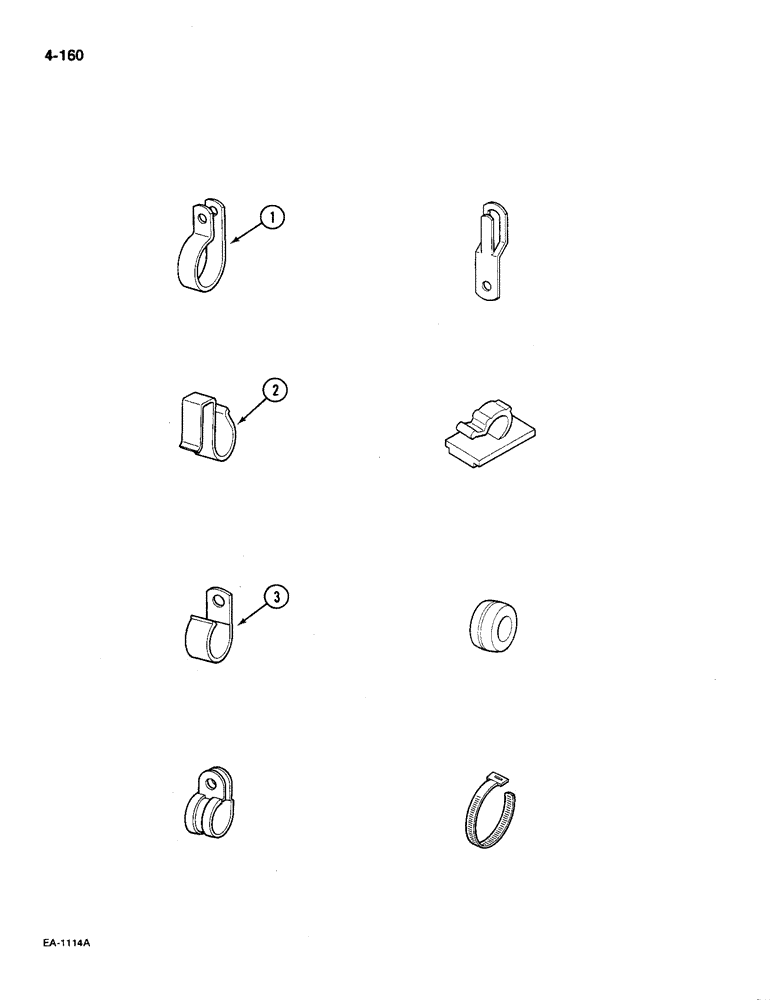

Запчасти Case IH 585 (4-160) - ELECTRICAL CLIPS, STRAPS AND GROMMETS (04) - ELECTRICAL SYSTEMS

1

3116240R1

CLIP

0.56 diameter closed, battery cable

1шт.

450643

SCREW,Hex Hd, #8-32 x 3/8"

BOLT hex, No. 8 x 3/8 inch

1шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

1шт.

225-10108

NUT,#8-32

1шт.

2

3116918R1

CABLE CLIP

CLIP 0.25 max diameter, edge, air cleaner bracket top

1шт.

2

3123109R1

CABLE CLIP

CLIP 0.35 max diameter, edge, temperature sender cable

1шт.

2

3125873R1

CLIP

0.374 max diameter, edge, front grille cable

2шт.

2

537024R1

CLIP

0.46 max diameter, edge (front harness to grille support, left - qty 1) (Park brake to seat deck, left - qty 1) (Battery tray support - qty 2)

1шт.

2

537025R1

CLIP

0.55 max diameter, edge (harness to battery support - qty 1) (brake cylinder bracket - qty 1)

1шт.

2

3113490R1

CLIP

0.55 max diameter, edge (steering support - qty 1) (master cylinder bracket - qty 1)

1шт.

2

539015R1

CLIP

0.75 max diameter edge, park brake flasher

1шт.

2

535303R1

CABLE CLIP

CLIP 0.95 max diameter, edge (rear cable on battery tray - qty 1) (park brake to seat deck, left - qty 1)

1шт.

3

366460R1

CABLE CLIP

CLIP 0.25 diameter, open (front cover right rear - qty 1) (park brake to seat deck, left - qty 1) (battery tray support - qty 2)

1шт.

3

100770H

CLIP

0.31 diameter, open (grille shroud left - qty 1, tractors without cab) (grille tie bar left - qty 1, tractors without cab)

1шт.

3

316433C1

CLAMP

CLIP, 0.50 diameter, open (main harness - qty1) (grille tie bar left - qty 1, tractors with cab) (grille shroud - qty 2, tractors with cab) (tachometer cable - qty 1, tractors with cab)

1шт.

3

1500151C1

CLAMP

CLIP, 0.75 diameter, open, front harness to engine, tractors with cab

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

hex, 5/16 n x 1/2 inch

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
