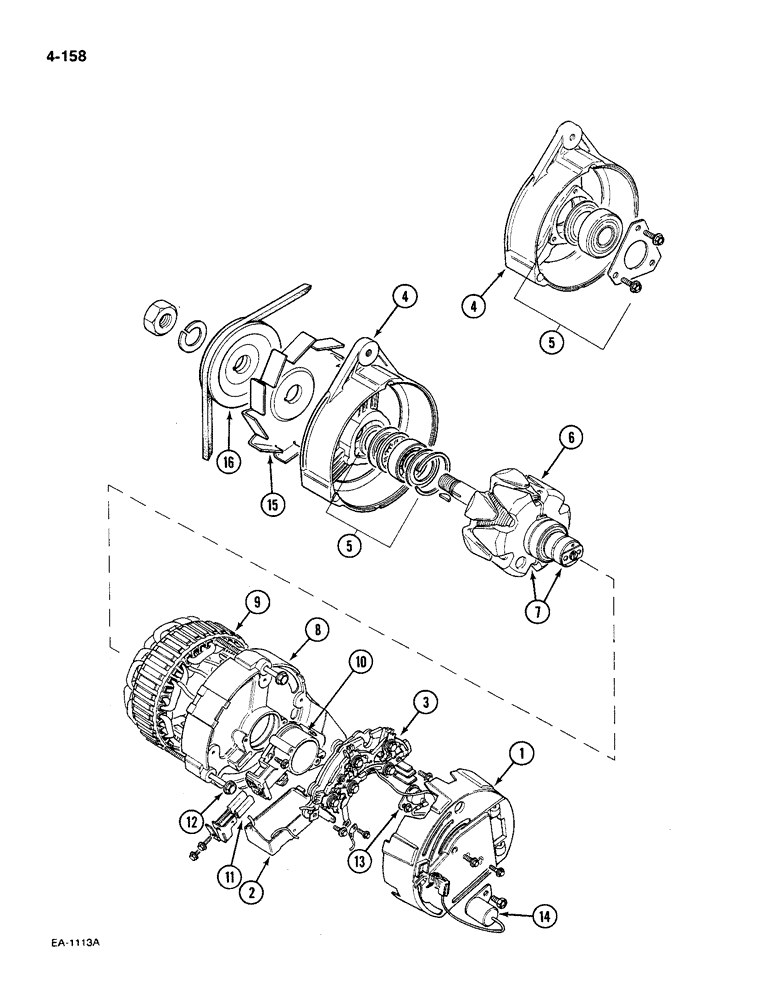

Запчасти Case IH 585 (4-158) - ALTERNATOR - LUCAS (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

92293C1

ALTERNATOR

ALTERNATOR Lucas, a127-45, without fan and pulley (Replaces 92294C1)

1шт.

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

92293C1GV

ALTERNATOR

Value

1шт.

84149C91

GENERATOR

ALTERNATOR Lucas, a133-75, with fan, Includes: Ref. 1-15, P/N 84150C1, tractors with Sims cab, Start Serial: 18001

1шт.

1

92294C1

ALTERNATOR

ALTERNATOR Lucas, a127-45, without fan and pulley

1шт.

1

84105C1

COVER

COVER 75 amp alterantor

1шт.

2

245536C1

REGULATOR

REGULATOR 45 amp alternator

1шт.

2

84106C1

REGULATOR

REGULATOR 75 amp alternator

1шт.

3

245537C1

RECTIFIER

RECTIFIER 45 and 75 amp alternator

1шт.

4

3116096R91

BEARING ASSY

BRACKET drive end, 45 amp alternator

1шт.

4

84107C1

BRACKET

SPARE PART BRACKET drive end, 75 amp alternator

1шт.

5

3116096R91

BEARING ASSY

KIT drive end bearings, 45 amp alterantor

1шт.

5

84108C1

PACKAGE

KIT, 75 amp alternator

1шт.

6

245540C1

ROTOR ASSY.

ROTOR 45 amp alternator

1шт.

6

84109C1

ROTOR

SPARE PART ROTOR 75 amp alternator

1шт.

7

245541C1

WHEEL BEARING KIT

KIT bearing and slip ring, 45 and 75 amp alternators

1шт.

7

245542C1

RING

RING slip

2шт.

8

245543C1

BRACKET

BRACKET slip ring end, 45 amp alternator

1шт.

8

84110C1

BRACKET

SPARE PART BRACKET slip ring end, 75 amp alternator

1шт.

9

245544C1

STATOR

STATOR 45 amp alternator, 15 mm bore

1шт.

9

84111C1

STATOR

STATOR 75 amp alternator

1шт.

10

245545C1

BRUSH HOLDER

HOLDER, BRUSH BOX , 45 and 75 amp alternators

1шт.

11

245546C1

BRUSH SET

BRUSH SET 45 amp alternator

1шт.

11

84112C1

BRUSH SET

BRUSH SET 75 amp alternator

1шт.

12

245547C1

BOLT

SPARE PART BOLT fixing, 45 amp alternator

3шт.

12

3122941R1

BOLT

BOLT fixing, 75 amp alternator

3шт.

13

245886C1

RECTIFIER

RECTIFIER surge protection, 45 amp alternator

1шт.

14

84115C1

ARMATURE

SPARE PART CAPACITOR suppression, 75 amp alternator

1шт.

245548C1

PACKAGE

KIT sundry parts, 45 and 75 amp alternators, Not illustrated

1шт.

245549C1

PACKAGE

KIT screw, 45 and 75 amp alternators, Not illustrated

1шт.

245550C1

PACKAGE

KIT spacer, 45 amp alternator, Not illustrated

1шт.

84114C1

PACKAGE

KIT, 75 amp alternator, Not illustrated

1шт.

84113C1

PACKAGE

KIT, 75 amp alternator, Not illustrated

1шт.

15

84051C1

FAN

FAN 75 amp alternator

1шт.

84150C1

SPACER

WASHER fan, 75 amp alternator, Not illustrated

1шт.

15

245533C1

FAN

KIT fan, with spacer, 45 amp alternator

1шт.

16

1970879C1

PULLEY

KIT pulley, with washer, 45 amp alternator, 17 mm bore

1шт.

16

91426C1

PULLEY

PULLEY, 75 amp alternator

1шт.

Выбрано товаров: 39
