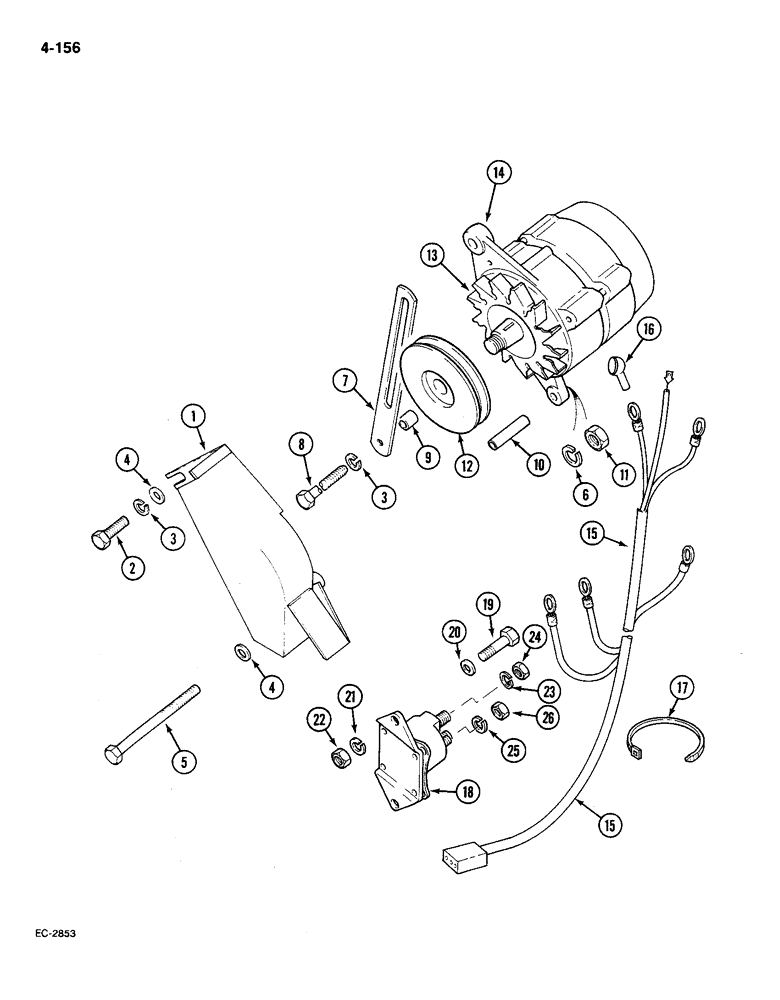

Запчасти Case IH 585 (4-156) - ALTERNATOR AND SHIELD (04) - ELECTRICAL SYSTEMS

1

3129852R7

SHIELD

SHIELD alternator

1шт.

1

84037C2

SHIELD

SHIELD alternator, tractors with Sims cab, Start Serial: 18001

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT hex, head, M8 x 25 mm, class 8.8 ZND

1шт.

2

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

BOLT hex, M8 x 20 mm, grade 8.8, tractors with Sims cab, Start Serial: 18001

1шт.

3

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

120393

BEARING WASHER,5/16", SAE

WASHER flat, 0.344 x 0.688 x 0.051 inch

2шт.

5

413-576

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

BOLT hex, 5/16 NC x 4-3/4 inch

1шт.

6

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

3113336R1

BRACE

BRACE alternator

1шт.

8

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

BOLT - hex, 5/16"-18 NC x 4-1/2", grade 5

1шт.

8

186273

BOLT,Hex, 5/16" - 18 x 4 1/4", Gr 5

BOLT - hex, 5/16 NC x 4-1/8 inch, grade 5, Tractors with Sims cab, Start Serial: 18001

1шт.

9

65881H

SPACER,1/4" Pipe x 1 1/4"

SPACER standard pipe, 1/4 x 1-1/4 inch

1шт.

9

190123C1

SPACER,1/2" Tube x 1"

SPACER tube, 1/2 x 1 inch, tractors with Sims cab, Start Serial: 18001

1шт.

10

3113678R1

SPACER

SPACER, tractors with Sims cab, Start Serial: 18001

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

NUT hex, 5/16 inch NC, grade 5

1шт.

12

1970879C1

PULLEY

KIT pulley, with washer

1шт.

12

91426C1

PULLEY

PULLEY, tractors with Sims cab, Start Serial: 18001

1шт.

13

245533C1

FAN

KIT fan, with spacer, for 45 and 65 amp alternators

1шт.

14

92294C1

ALTERNATOR

ALTERNATOR Lucas, a127-45, without fan and pulley, see Figure 4-158

1шт.

14

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92294C1

1шт.

14

92293C1C

CORE-ALTERNATOR

Return Part Number

1шт.

14

92292C1

ALTERNATOR

ALTERNATOR Lucas, a127-65, without fan and pulley

1шт.

14

87800219R

REMAN-ALTERNATOR

Reman For New PN 92292C1

1шт.

14

87800219C

CORE-ALTERNATOR

Return Part Number

1шт.

14

84149C91

GENERATOR

ALTERNATOR Lucas a133-75, with fan, see Figure 4-158, tractors with Sims cab, Start Serial: 18001

1шт.

15

84027C1

HARNESS

HARNESS adapter, Includes: Ref. 16, tractors with Sims cab, Start Serial: 18001

1шт.

16

399470R1

BOOT

BOOT rubber

2шт.

17

702093C1

CABLE TIE

CABLE STRAP STRAP cable, tractors with Sims cab, Start Serial: 18001

15шт.

18

107655C1

SOLENOID SWITCH

RELAY cab, tractors with Sims cab, Start Serial: 18001

1шт.

19

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

BOLT, Hex, M6 x 12, 8.8

2шт.

20

934948R1

WASHER,M6

WASHER flat, 6.4 x 12.5 x 1.6 mm

2шт.

21

30480R1

LOCK WASHER,Ext Tooth, M6

WASHER lock, 6 mm

2шт.

22

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

NUT M6, zinc plated, class 8

2шт.

23

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

120376

NUT,5/16"-18, G5

NUT, 5/16"-18, G5

2шт.

25

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

26

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.
