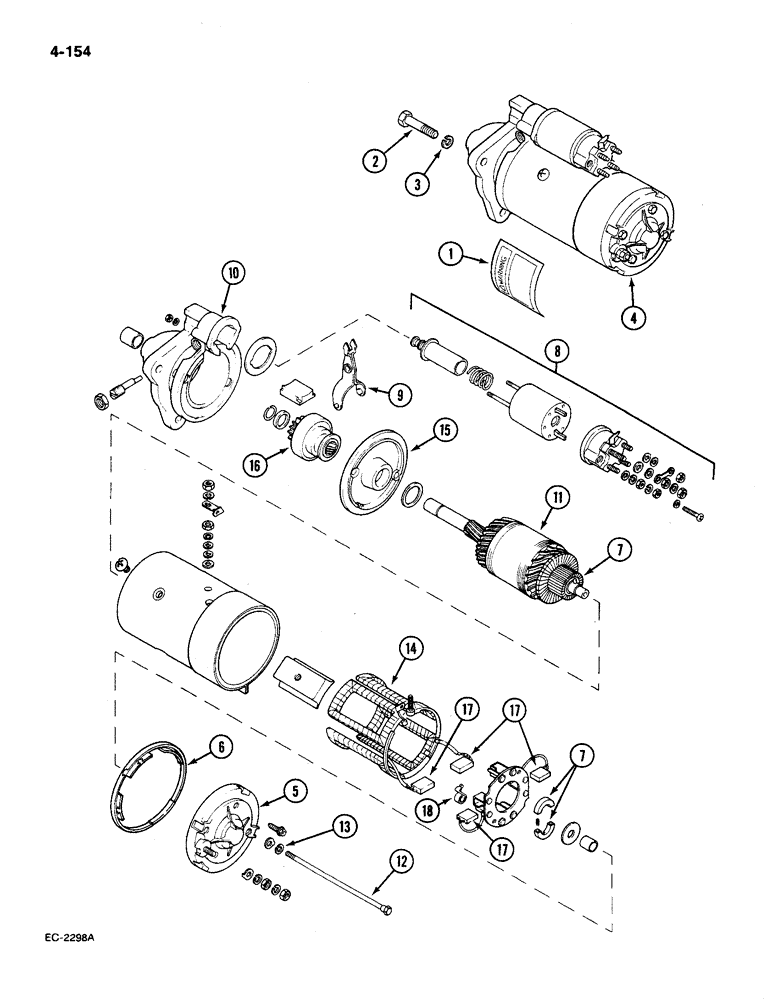

Запчасти Case IH 585 (4-154) - STARTER MOTOR, LUCAS (04) - ELECTRICAL SYSTEMS

1

321-3709

DECAL

warning, starter motor, English

1шт.

2

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8"-16 NC x 1-1/4", G5

3шт.

3

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

537140R95

STARTER MOTOR

MOTOR starting, Lucas No. 27508, Includes: Ref. 5-18 and P/N's 3206529R91, 78986C1, and 3206528R91

1шт.

5

3206511R91

BRACKET

KIT bracket

1шт.

6

3113026R91

PLATE ASSY.

PLATE brush mounting

1шт.

7

3206531R91

BRAKE PACKAGE

KIT brakes

1шт.

8

84060C1

SOLENOID SWITCH

SWITCH solenoid

1шт.

9

84061C1

KIT

LEVER solenoid engaging

1шт.

10

NSS

NOT SOLD SEPARAT

BRACKET end mounting

1шт.

11

84059C1

ARMATURE

1шт.

12

3129088R1

BOLT

through

2шт.

13

3129089R1

WASHER

spring

2шт.

14

84058C1

KIT

field coils

1шт.

15

3119902R91

SUPPORT

BRACKET intermediate

1шт.

16

84209C1

DRIVE ASSY.

DRIVE complete assembly

1шт.

17

3118371R91

BRUSH, COMMUTATOR

KIT brushes

1шт.

18

3206523R91

SPRING KIT

KIT brush springs

1шт.

3206529R91

KIT

sundry parts, Not illustrated

1шт.

78986C1

PACKAGE

KIT retention, Not illustrated

1шт.

3206528R91

SEAL KIT

KIT sealing, Not illustrated

1шт.
