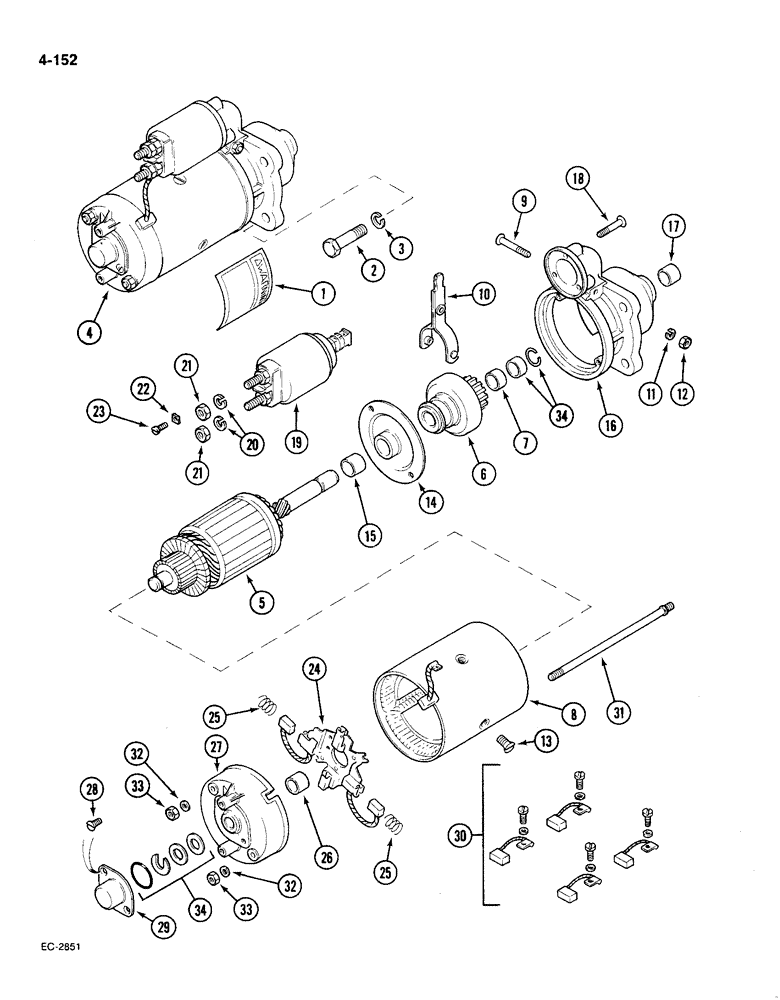

Запчасти Case IH 585 (4-152) - STARTER MOTOR, BOSCH (04) - ELECTRICAL SYSTEMS

1

321-3709

DECAL

warning, starter motor, English

1шт.

2

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8"-16 NC x 1-1/4", G5

3шт.

3

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

529965R93

STARTING MOTOR

MOTOR starting, Bosch, Includes: Ref. 5-34

1шт.

5

3079252R1

ARMATURE

1шт.

6

3129631R1

DRIVE ASSY.

DRIVE complete

1шт.

7

3079254R1

BUSHING

drive

1шт.

8

3079356R1

COIL

field winding, 1 to 4 complete

1шт.

9

3079251R1

BOLT

engaging lever pivot

1шт.

10

3078965R1

LEVER

FORK clutch drive engaging lever

1шт.

11

3079166R1

SPRING WASHER,M8.4 ID x 15 OD x .8 Thk

WASHER lock, 8 mm

1шт.

12

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Engaging lever

1шт.

13

3129639R1

SCREW

field coil retaining

4шт.

14

3079253R1

BALL BEARING

intermediate

1шт.

15

3078967R1

BUSHING

bearing

1шт.

16

3129633R1

HOUSING

drive end

1шт.

17

3055738R1

BUSHING

drive end bearing

1шт.

18

3078974R1

SCREW

solenoid switch retaining

3шт.

19

3078963R1

SOLENOID SWITCH

SWITCH solenoid

1шт.

20

934075R1

LOCK WASHER,M10

2шт.

21

100016

NUT,M10 x 1.5, Cl 8

(Solenoid Terminal) M10, Cl 8

2шт.

22

3132763R1

TERMINAL CONNECTOR

terminal

1шт.

23

931342R1

SCREW,Slotted Cheese, M4 x 0.7 x 6mm, Cl 8.8

machine, slotted, M4 x 6 mm

1шт.

24

3079174R1

HOLDER

brush

1шт.

25

3079420R1

SPRING

compression, brush

4шт.

26

3079170R1

BUSHING

commutator end

1шт.

27

3129632R91

END ASSY.

FRAME commutator end

1шт.

28

3079426R1

SCREW

fillister head, 5/16 inch

2шт.

29

3079177R1

CAP

commutator end frame

1шт.

30

3079359R1

KIT

brush set

1шт.

31

3079172R1

STUD

thru fixing

2шт.

32

3079176R1

WASHER

plain, thru fixing stud

2шт.

33

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6, zinc plated, class 8

2шт.

34

3079173R91

KIT

terminal parts

1шт.
