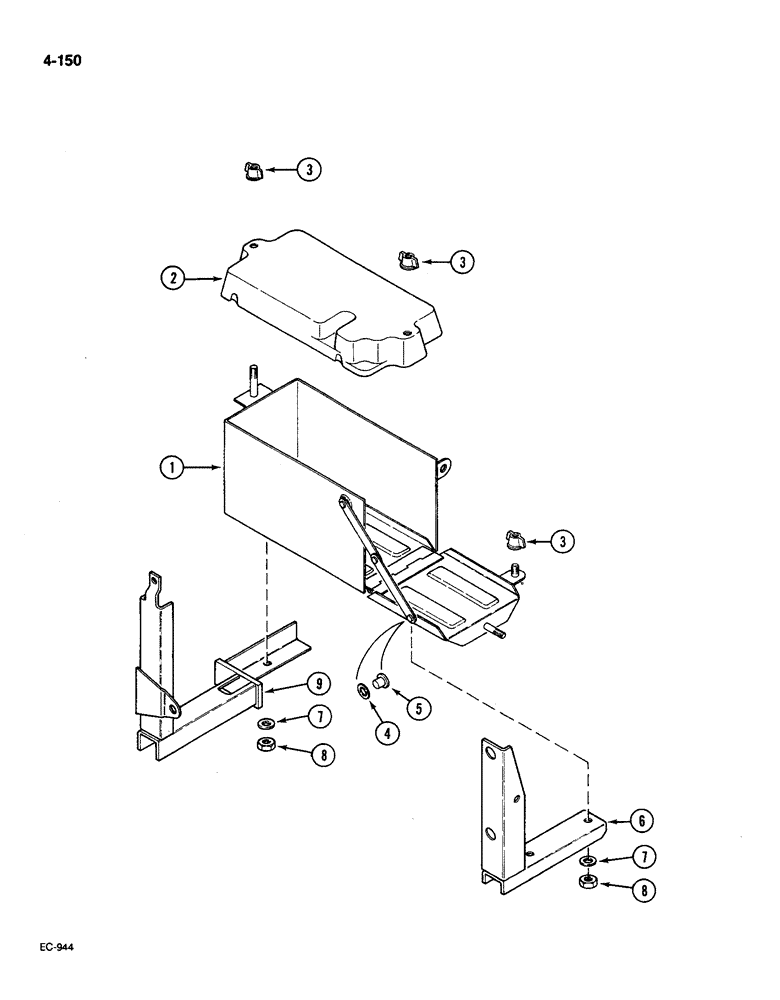

Запчасти Case IH 585 (4-150) - BATTERY MOUNTING, WITH CAB (04) - ELECTRICAL SYSTEMS

1

82700C1

BATTERY BOX

BOX battery

1шт.

2

1330754C1

COVER

battery, with decal, Includes: P/N 321-6714

1шт.

321-6714

DECAL

battery jump start

1шт.

3

3129887R1

WING NUT

wing, M8

3шт.

4

82999C1

RING

self locking

3шт.

5

89345C1

PIN

headed

3шт.

6

82709C1

SUPPORT

BRACKET battery box

1шт.

7

934675R1

WASHER,M8 x 16 x 1.6

Flat, ZND M8 x 16 x 1.6

3шт.

8

30167R1

NUT,M8, Cl 10

hex, M8, class 10

3шт.

9

82941C1

CHANNEL

SUPPORT fuel tank and battery box

1шт.
