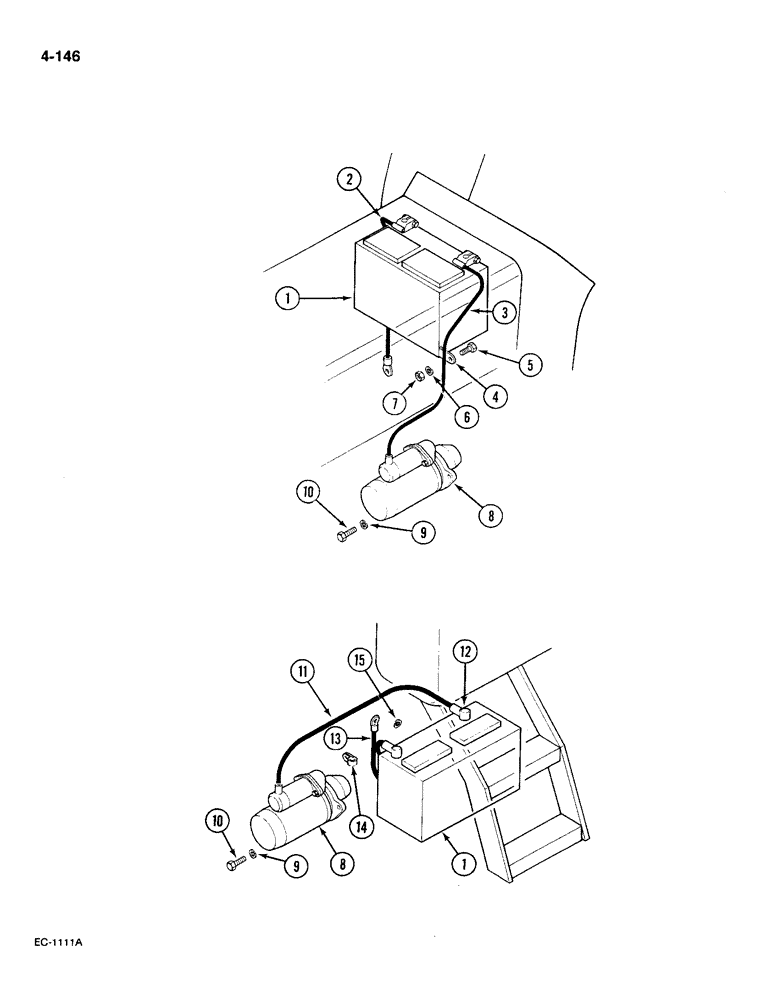

Запчасти Case IH 585 (4-146) - BATTERY AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

A186026

BATTERY, DRY

dry charge, maintenance free, 12 volt

1шт.

A187592 Heavy Duty Battery 950 cranking amp Exide Battery

1шт.

Ref #1 - B2772, Battery Upgrade to 650 cranking amp Exide Battery

1шт.

2

537504R1

CABLE ASSY.

CABLE battery to ground, tractor without cab

1шт.

3

528301R1

CABLE ASSY.

CABLE battery to starter, tractor without cab

1шт.

Ref #3 - 1537299C1 New Cable

1шт.

4

3116240R1

CLIP

0.56 diameter closed, tractor without cab

1шт.

5

450643

SCREW,Hex Hd, #8-32 x 3/8"

BOLT hex, No. 8 x 3/8 inch, tractor without cab

1шт.

6

492-11008

LOCK WASHER,#8

Washer, Lock, , Tractor without cab #8

1шт.

7

225-10108

NUT,#8-32

Tractor w/o cab #8-32

1шт.

8

529965R93

STARTING MOTOR

MOTOR starting, Bosch (see Figure 4-152)

1шт.

8

537140R95

STARTER MOTOR

MOTOR starting, Lucas No. 27508 (see Figure 4-154)

1шт.

9

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

10

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8"-16 NC x 1-1/4", G5

3шт.

11

82985C1

CABLE ASSY.

CABLE battery to starter, tractor with cab

1шт.

12

3125853R1

PROTECTOR

BOOT rubber, starter cable, tractor with cab

1шт.

13

K917372

CABLE

battery to ground, tractor with cab (Replaces 82986C1)

1шт.

14

3229714R1

CLAMP

CLIP cable, battery box, tractor with cab

1шт.

15

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER ext. lock, 3/8 ZND

1шт.
