(4-144) - WORKLIGHTS, WITH CAB

Запчасти Case IH 585 (4-144) - WORKLIGHTS, WITH CAB (04) - ELECTRICAL SYSTEMS

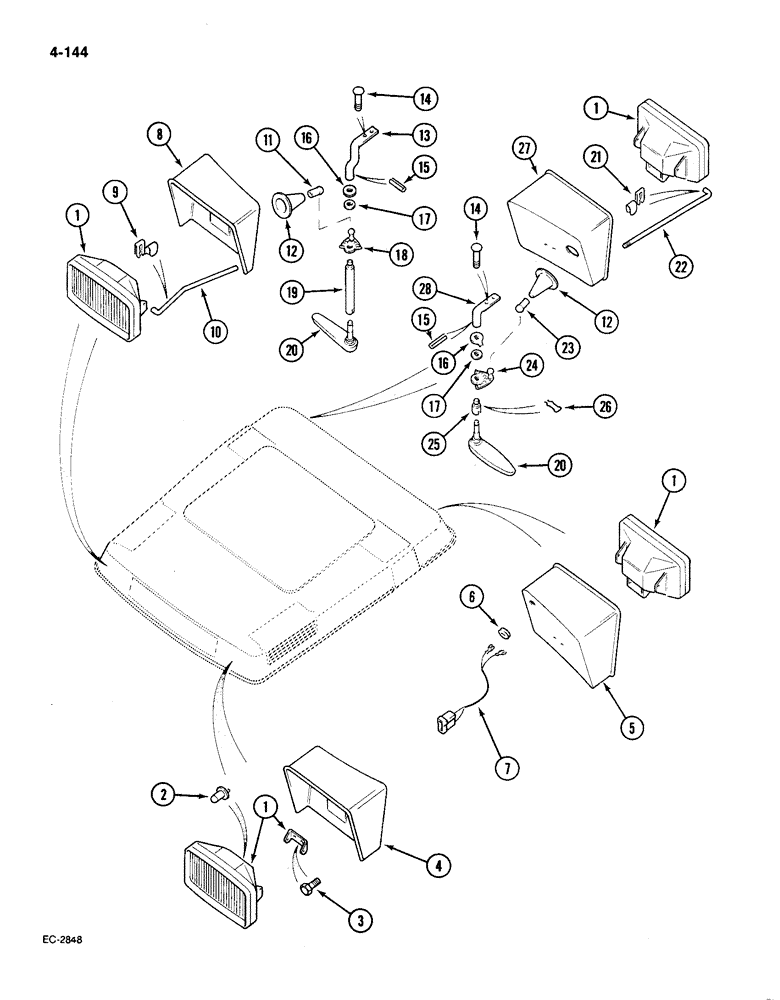

Схема запчастей Case IH 585 - (4-144) - WORKLIGHTS, WITH CAB (04) - ELECTRICAL SYSTEMS
25
8
15
1
14
7
9
13
4
1
20
1
5
26
6
3
22
15
20
16
12
24
12
11
23
16
14
19
21
18
1
27
2
17
17
10
28
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1328615C1

LAMP, WORK

LIGHT spot

4шт.

2

3217310R1

BULB,H3, 12V, 55W

LAMP halogen, YC 12V/55W

1шт.

3

3234404R1

SCREW

hi-lo, 6.3 x 30 mm

8шт.

4

3233558R3

BASE

light, front left

1шт.

5

3233556R3

BASE

light, rear left

1шт.

6

3234152R1

GROMMET

4шт.

7

3399341R1

CABLE

spotlight

4шт.

8

3233559R3

BASE

light, front right

1шт.

9

3234397R1

CLIP

left hand

1шт.

10

3234385R91

ROD ASSY.

ROD right, front light, Includes: Ref. 11

1шт.

11

3233279R1

BALL JOINT

JOINT ball

1шт.

12

3234153R1

GROMMET

INSULATOR bellow

2шт.

13

3234401R1

SUPPORT

right, front light

1шт.

14

24407R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Cross Pan Hd, 1/4" x 1/2"

4шт.

15

30786R1

LOCK PIN,M2 x 14, Slotted

PIN slotted spring 2 x 14 mm

2шт.

16

3234405R1

WASHER, LOCK

SHIM

2шт.

17

3233281R1

WASHER,M14 ID x 20 OD x 1 Thk

WASHER flat

2шт.

18

3234383R1

SEGMENT

weldment

1шт.

19

3234403R1

PIN

front right worklight

1шт.

20

3234375R91

HANDLE

front and rear worklight

2шт.

21

3234398R1

CLIP

right hand

1шт.

22

3234387R91

ROD ASSY.

ROD rear right worklight, Includes: Ref. 23

1шт.

23

3233279R1

BALL JOINT

JOINT ball

1шт.

24

3234389R1

BRACKET

SEGEMENT weldment

1шт.

25

3234406R1

PIN

rear right worklight

1шт.

26

3234400R1

CLIP

PIN spring

1шт.

27

3233557R3

BASE

light, rear right

1шт.

28

3234402R1

SUPPORT

rear right light

1шт.
