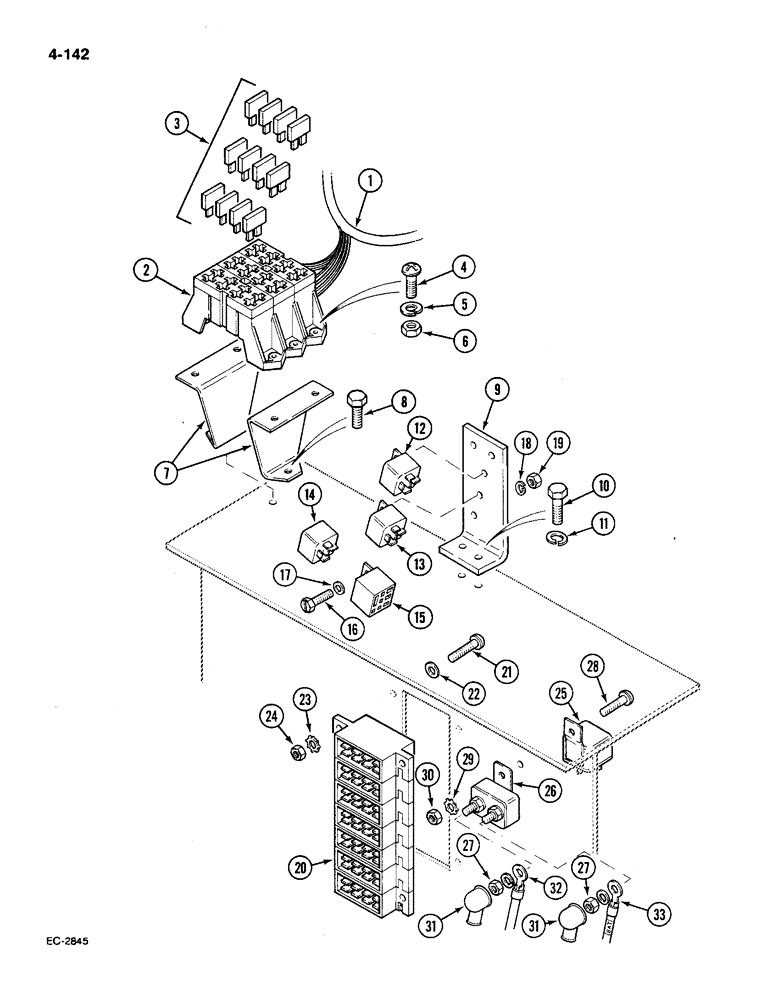

Запчасти Case IH 585 (4-142) - ELECTRICS, CAB BULKHEAD (04) - ELECTRICAL SYSTEMS

1

91850C4

HARNESS

instrument panel, Includes: Ref. 2

1шт.

1a

1536001C3

HARNESS

1шт.

2

NSS

NOT SOLD SEPARAT

BLOCK fuse holder

1шт.

3

A149796

FUSE

auto type, 3 amp. (violet)

1шт.

3

A149798

FUSE

auto type, 5 amp. (tan)

1шт.

3

A149800

FUSE,10 Amp

auto type, 10 amp. (red)

1шт.

3

A149801

FUSE,Lt Blue, 15 Amp

auto type, 15 amp. (light blue)

1шт.

3

A149802

FUSE

auto type, 20 amp. (yellow)

1шт.

4

30277R1

SCREW,Cross Pan Hd, M4 x 14

pan head, M4 x 14 mm

4шт.

5

933832R1

LOCK WASHER,M4

WASHER lock, 4 mm, ZND

4шт.

6

30267R1

NUT,M4, Cl 8

hex, M4

4шт.

7

91844C1

SUPPORT

BRACKET fuse box

2шт.

8

814-4016

BOLT,Hex, M4 x 0.7 x 16mm, Cl 8.8, Full Thd

SCREW pan head, M4 x 16 mm, class 4.8

2шт.

9

3129809R1

SUPPORT

BRACKET reservoir support

1шт.

10

930105R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

hex, M6 x 20 mm, grade 8.8

2шт.

11

933833R1

LOCK WASHER,M6

WASHER lock, M6

2шт.

12

3146359R1

RELAY

miniature, with bracket (rear lights)

1шт.

13

3146359R1

RELAY

miniature, with bracket (cab power)

1шт.

14

3221235R2

RELAY

miniature, without bracket (4wd) (mfd)

1шт.

15

NSS

NOT SOLD SEPARAT

BLOCK relay mounting

1шт.

16

931340R1

SCREW,Slotted Cheese, M5 x 0.8 x 12mm, Cl 4.8

pan head slotted, M5 x 12 mm

1шт.

17

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

flat, 5 mm

1шт.

18

933844R1

LOCK WASHER,M5

WASHER lock, 5 mm

1шт.

19

933972R1

NUT

hex, M5

1шт.

20

3399527R2

CONNECTOR, ELEC

CONNECTOR bulkhead

1шт.

21

30479R1

SCREW,Cross Pan Hd, M5 x 16

pan head cross recess, M5 x 16 mm

4шт.

22

933672R1

WASHER,M5 x 10 x 1

plain, 5.5 x 10.0 x 1.0 mm

4шт.

23

30659R1

LOCK WASHER,Ext Tooth, M5

WASHER lock, 5 mm

4шт.

24

934871R1

NUT,M5, Cl 5

hex, m5, class 5, ZND

4шт.

25

3146359R1

RELAY

miniature, with bracket (front work lights)

1шт.

26

403069R1

CIRCUIT-BREAKER,30A

BREAKER circuit, 30 amp, Includes: Ref. 27

1шт.

27

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

28

30278R1

SCREW,Cross Pan Hd, M5 x 14

M5 x 14 mm, pan head, cross recess

1шт.

29

30659R1

LOCK WASHER,Ext Tooth, M5

WASHER lock, 5 mm

1шт.

30

934871R1

NUT,M5, Cl 5

hex, m5, class 5, ZND

1шт.

31

1333006C1

BOOT

rubber

2шт.

32

1328852C2

HARNESS

cab

1шт.

33

92348C1

HARNESS

front

1шт.

33a

1536960C1

HARNESS

front, used with MTA fuse box instead of Rists.

1шт.

33b

1536961C1

HARNESS

front, used with new digital dash

1шт.
