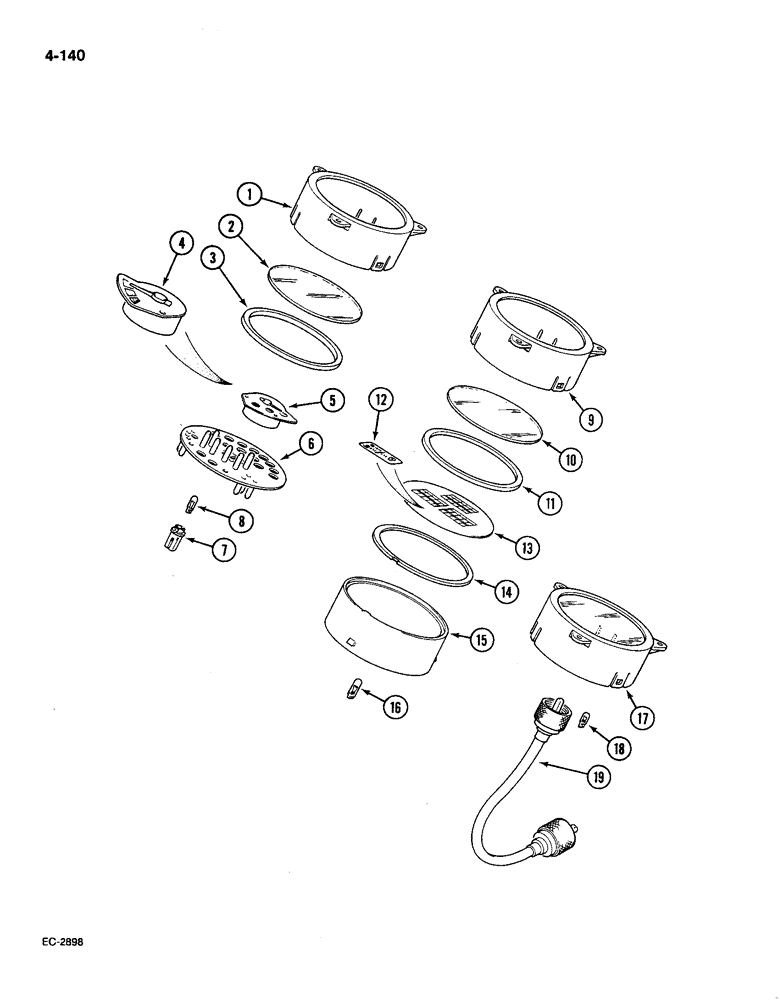

Запчасти Case IH 585 (4-140) - INSTRUMENTS, WITH CAB (04) - ELECTRICAL SYSTEMS

1

107444C2

CLUSTER

gauges and warning lights, Includes: Ref. 2-8

1шт.

2

1502004C1

LENS

glass

1шт.

3

1500499C1

GASKET

deco plate module

1шт.

4

1502009C1

FUEL GAUGE

GAUGE fuel

1шт.

5

1502008C1

GAUGE ASSY.

GAUGE temperature

1шт.

6

1502010C1

BOARD, PRINTED CIRCU

BOARD printed circuit

1шт.

7

1502007C1

HOLDER

SOCKET lamp

14шт.

8

3141107R1

BULB,W5/1.2, 12V, 1.2W

14шт.

9

1500498C1

BEZEL

deco plate module

1шт.

10

1502004C1

LENS

glass

1шт.

11

1500499C1

GASKET

deco plate module

1шт.

12

1093098R1

PRODUCT GRAPHIC

DECAL I.P.T.O overspeed, 540/1000 rpm

1шт.

13

1093221R1

DECAL

speed chart mph (use with 16.9-30 rear tires)

1шт.

14

1502005C1

SPACER

1шт.

15

1500500C1

HOUSING

deco plate module

1шт.

16

1500502C1

LAMP

12V/1.5W, wedge base

1шт.

17

1500485C2

TACHOMETER

1шт.

18

529233R1

LAMP

12v/3w, wedge type, capless

1шт.

19

1970911C1

FLEXIBLE DRIVE SHAFT

CABLE tachometer, 57" long

1шт.
