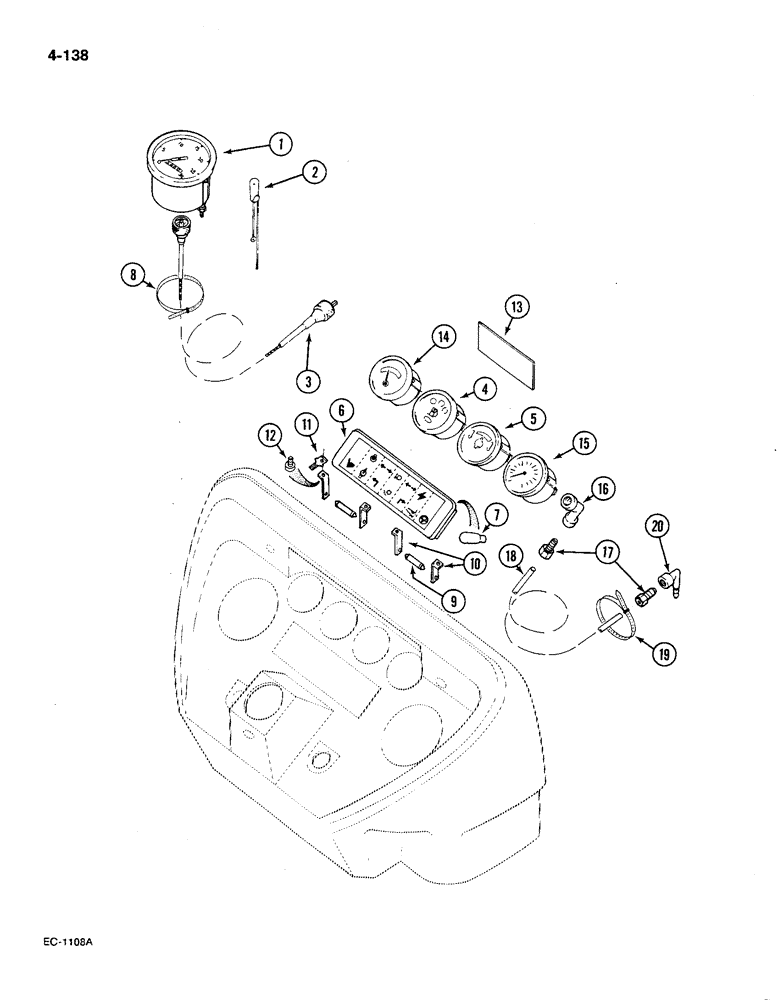

Запчасти Case IH 585 (4-138) - INSTRUMENTS, WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

3125106R92

TACHOMETER

1шт.

2

3123661R1

HOLDER

lamp, 10 mm wedge

1шт.

3

529234R1

CABLE,1480.32mm L

CABLE tractormeter drive

1шт.

4

3121239R1

FUEL GAUGE

GAUGE fuel, AC Delco (use only with AC Delco sending unit 529790R1)

1шт.

4

3129840R1

FUEL GAUGE

GAUGE fuel, Icknield (use only with Icknield sending unit 3129841R1)

1шт.

5

3121240R1

ELECTRICAL GAUGE

GAUGE water temperature, AC Delco (use only with AC Delco sending unit 3073787R1)

1шт.

5

3127959R1

ELECTRICAL GAUGE

GAUGE water temperature, Icknield (use only with Icknield sending unit 3127959R1)

1шт.

6

1502006C2

HOUSING

HOLDER warning light lamp

1шт.

7

529233R1

LAMP

12v/3w, wedge type, capless

7шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP cable, 1.75 max bundle

2шт.

9

710196R1

BULB,C5W, 12V, 5W

Festoon C11, 12Vm 5W

2шт.

10

3121705R1

CONTACT HOUSING

lamp

4шт.

11

3121703R1

TERMINAL CONNECTOR

TERMINAL 1/4 inch blade

4шт.

12

3121704R1

SCREW

slotted, No. 4 x 5/16 inch, stainless steel

4шт.

13

3125816R1

LENS

green, translucent

1шт.

14

1332882C1

AMMETER

GAUGE, Icknield (when fitted)

1шт.

15

1332883C1

OIL PRESSURE GAUGE

GAUGE oil pressure, Icknield (when fitted)

1шт.

16

19717R1

ELBOW,90 Degree x 1/8" NPT x 5/16"-20, Fem

90 degree male, No. 89-LB (when fitted) (Replaces 36637D)

1шт.

17

222-500

TUBE NUT,5/16" - 24 NPT

NUT tube, No. 81-LB (when fitted)

2шт.

18

1332949C1

TUBE,0.096" ID, 0.125" OD

oil pressure gauge (when fitted)

1шт.

19

289862C1

CABLE TIE,3/16" x 7"

STRAP cable, 1.75 max bundle (when fitted)

2шт.

20

36637D

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

90 degree hi-duty female, No. 90-LB (when fitted) (Replaces 19717R1)

1шт.

1536455C1

CLUSTER, INSTR.

CLUSTER new instrument

1шт.
