(4-136) - FOUR WHEEL DRIVE CONTROL, P.I.N. 18001 AND AFTER

Запчасти Case IH 585 (4-136) - FOUR WHEEL DRIVE CONTROL, P.I.N. 18001 AND AFTER (04) - ELECTRICAL SYSTEMS

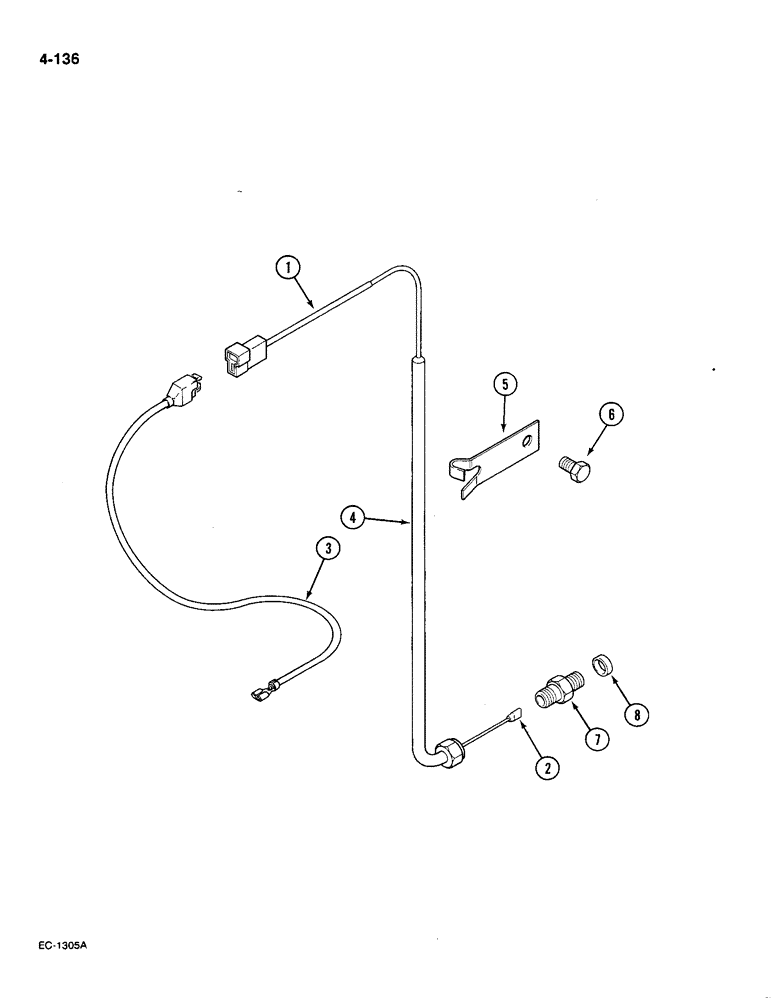

Схема запчастей Case IH 585 - (4-136) - FOUR WHEEL DRIVE CONTROL, P.I.N. 18001 AND AFTER (04) - ELECTRICAL SYSTEMS
8
3
4
5
2
6
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82634C1

CABLE

4 wheel drive solenoid

1шт.

2

905694R1

ELEC. TERMINAL PIN

TERMINAL

1шт.

3

92118C1

CABLE

4WD, Serial Range: solenoid-bulkhead

1шт.

4

82635C1

TUBE ASSY.,8 mm OD, 370, 40 mm Length

TUBE harness protection

1шт.

5

99842C2

CLAMP

1шт.

6

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

hex, 3/8 NC x 1/2 inch, grade 5

1шт.

7

3056174R1

HYD CONNECTOR,M12 x 1.5 x M14 x 1.5

UNION hydraulic tube

1шт.

8

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.
