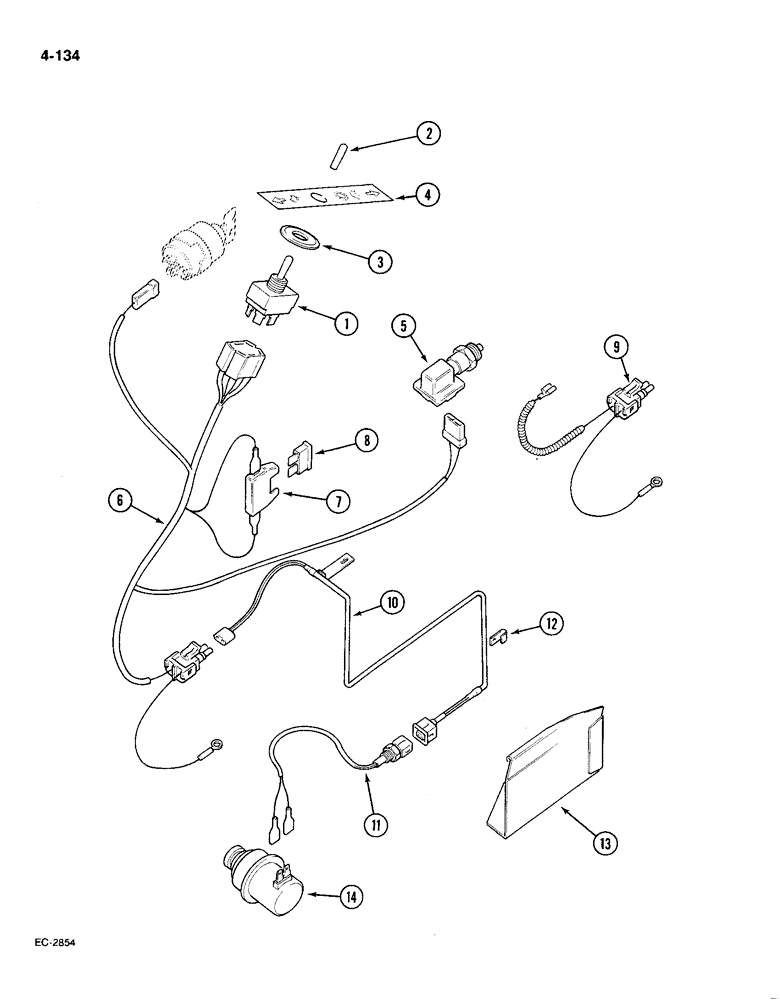

Запчасти Case IH 585 (4-134) - ELECTRICAL CONTROL, 2 SPEED POWER SHIFT, P.I.N. 18001 AND AFTER (04) - ELECTRICAL SYSTEMS

1

1536154C1

TOGGLE SWITCH

SWITCH toggle (2 speed power shift control) (Replaces 91858C1)

1шт.

2

91833C1

BUTTON

KNOB toggle switch

1шт.

3

91920C2

ADAPTER

2 speed power shift switch, tractors without cab

2шт.

4

98098C1

DECAL

2 speed power shift, tractors with cab

1шт.

4

1330901C1

DECAL

2 speed power shift, tractors without cab

1шт.

5

1964885C2

SWITCH

plunger (2 SPS safety start)

1шт.

6

91850C4

HARNESS

instrument panel, tractors with cab

1шт.

6

92218C2

HARNESS

CABLE 2 speed power shift solenoid, tractors without cab, Includes: Ref. 7 and 8

1шт.

7

1970917C1

HOLDER

fuse, tractors without cab

1шт.

8

A149800

FUSE,10 Amp

auto type, 10 amp (red)

1шт.

9

91917C2

CABLE

2 speed power shift solenoid, tractors with cab

1шт.

10

99992C2

CABLE

2 speed power shift, tractors without cab

1шт.

10

99991C1

CABLE

2 speed power shift, tractors with cab

1шт.

11

99990C1

HARNESS

CABLE solenoid

1шт.

12

92071C1

CLAMP

CLIP solenoid cable

1шт.

13

99952C2

SHIELD

solenoid cable

1шт.

14

1958120C1

SOLENOID VALVE

VALVE solenoid (see Figure 8-438)

1шт.

1536155C1

WASHER

cover, key

1шт.
