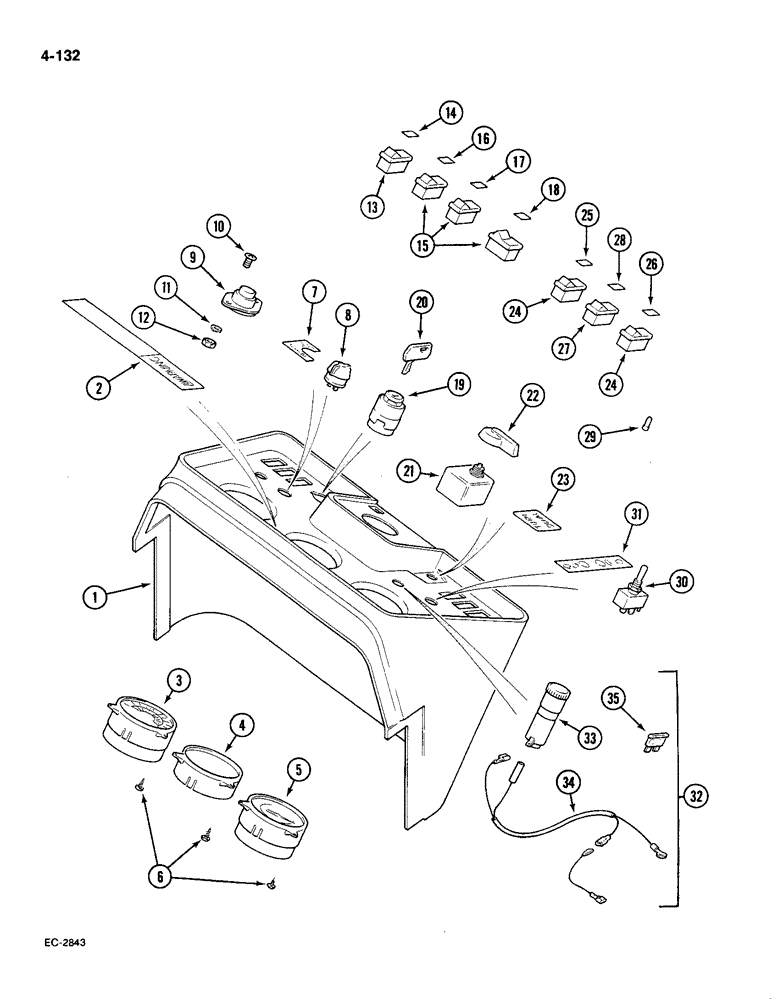

Запчасти Case IH 585 (4-132) - INSTRUMENTS AND SWITCHES, WITH CAB (04) - ELECTRICAL SYSTEMS

1

1330755C1

PANEL

instrument rear (with decal 321-6770) (see Figure 9-506) Includes: Ref. 2

1шт.

2

321-6770

DECAL

warning, PTO overspeed, English

1шт.

3

107444C2

CLUSTER

gauges and warning lights (see Figure 4-140)

1шт.

4

NSS

NOT SOLD SEPARAT

MODULE deco plate (see Figure 4-140)

1шт.

5

1500485C2

TACHOMETER

(see Figure 4-140)

1шт.

6

905363R1

SELF-TAP SCREW,Pan Hd, M3.5 x 13

SCREW phillips round head, 3.5 x 13 mm

9шт.

7

1265116C1

PRODUCT GRAPHIC

DECAL light switch, English

1шт.

8

107200C2

LIGHT SWITCH

SWITCH rotary

1шт.

9

397940R93

SWITCH

push button

1шт.

10

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW pan head, No. 10 x 3/8 inch

2шт.

11

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER lock, external tooth, No. 10

2шт.

12

26303R1

HARDWARE,#10-24

NUT hex, machine, No. 10

2шт.

13

91855C1

SWITCH

1шт.

14

91856C1

SYMBOLS

DECAL, high beam, blue

1шт.

15

245909C1

SWITCH ASSY

SWITCH rocker

3шт.

16

245913C1

DECAL

DECAL, rear worklight, green

1шт.

17

245912C1

LENS,GREEN

DECAL, front worklight, green

1шт.

18

82525C1

DECAL

DECAL, 4WD switch, green

1шт.

19

3399520R1

IGNITION SWITCH

SWITCH ignition, with key, Includes: Ref. 20

1шт.

1536292C1 is handwritten in Tech's book and can be seen in the 385 book

1шт.

20

107392C1

KEY

ignition switch

1шт.

21

131066C91

SWITCH

turn signal and flasher, Includes: Ref. 22

1шт.

22

71485C1

PACKAGE

KIT switch handle and hardware

1шт.

23

98099C1

DECAL

turn signal

1шт.

24

245911C1

TOGGLE SWITCH

SWITCH rocker

2шт.

25

1328477C1

LENS

DECAL symbol, rear windscreen wipe/wash, green

1шт.

26

245915C1

DECAL

DECAL, windscreen wiper and washer

1шт.

27

3231782R1

SWITCH

rocker

1шт.

28

91857C1

SYMBOLS

DECAL, ether start switch, yellow

1шт.

29

3141107R1

BULB,W5/1.2, 12V, 1.2W

Rocker switch illumination W5/1.2, 12V, 1.2W

1шт.

30

91858C1

TOGGLE SWITCH

SWITCH toggle (2 speed power shift: see Figure 4-134)

1шт.

31

98098C1

DECAL

2 speed power shift

1шт.

32

81465C91

KIT

cigar lighter parts, Includes: Ref. 33-35

1шт.

33

3121407R92

LIGHTER, CIGARETTE

LIGHTER cigar

1шт.

34

91896C1

HARNESS

cigar lighter

1шт.

35

A149800

FUSE,10 Amp

auto type, 10 amp. (red)

1шт.

1536858C1

HARNESS new wiring, instrument panel

1шт.

1536959C1

HARNESS

new wiring, instrument panel

1шт.
