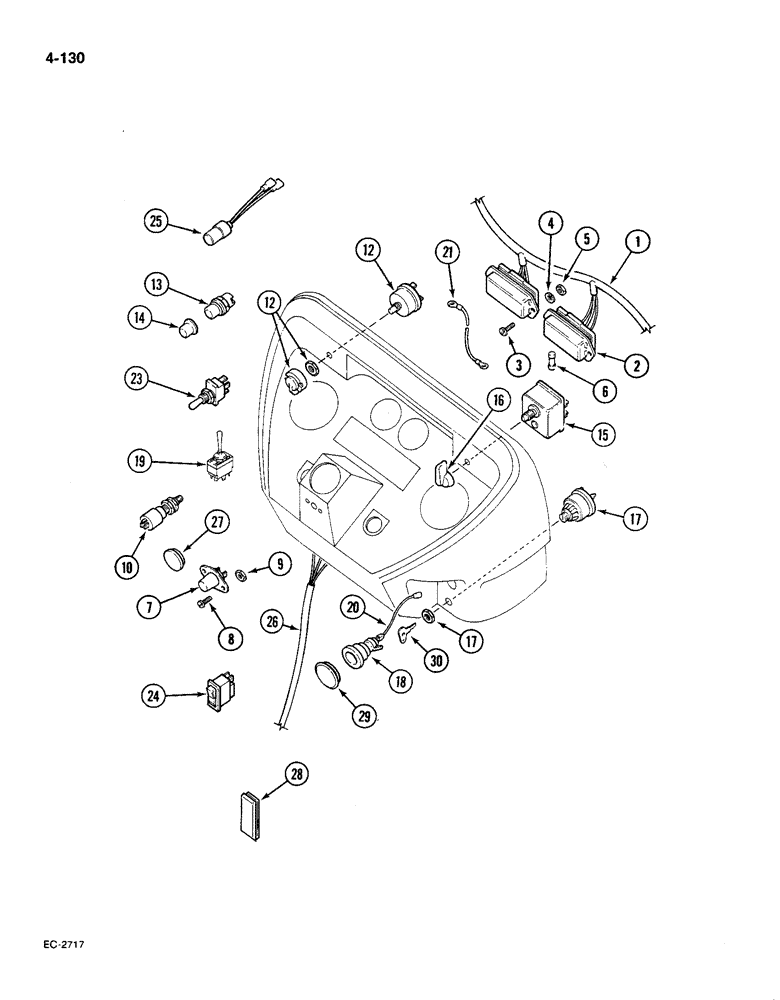

Запчасти Case IH 585 (4-130) - INSTRUMENT PANEL WIRING, SWITCHES AND FUSE BOX, TRACTOR WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

1500563C95

HARNESS

main cable

1шт.

Refer to SB 5075 for repair of fuse box.

1шт.

3123158R1

PACKAGE

alternator plug connections

1шт.

3129948R1

BOX, FUSE

PACKAGE fuse box, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

BOX fuse

2шт.

3123157R1

COVER

fuse box

2шт.

3

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

4шт.

4

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

5

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

6

3115813R1

FUSE

35 amp

6шт.

6

3121403R1

FUSE

35 amp, Serial Range: (Optional-3115813R1)

6шт.

6

3118918R1

FUSE

3AG 5 amps

4шт.

6

3118918R1

FUSE

10 amp, Serial Range: (Optional-142630)

4шт.

7

397940R93

SWITCH

push button

1шт.

8

436730

LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"

SCREW pan slotted, No. 10 x 3/8 inch

2шт.

9

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

10

92161C2

PARK BRAKE SWITCH

SWITCH push button

1шт.

12

107200C2

LIGHT SWITCH

SWITCH rotary

1шт.

13

705266R1

SWITCH

horn, Includes: Ref. 14

1шт.

14

1288026C1

COVER

horn switch

1шт.

15

1536292C1

KIT

SWITCH new style, 6 terminal, turn signal and flasher. Replaces 131066C91, Includes: Ref. 16

1шт.

16

71485C1

PACKAGE

KIT switch handle and hardware

1шт.

17

3107556R92

SWITCH ASSY

SWITCH ignition key (m.f.d. switch)

1шт.

Includes a total of 5 blades; two wide 35 amp blades and 3 narrow 17.5 amp blades. If looking for a switch with 6 blades that are all narrow the P/N is 529800R91.

1шт.

534211R1

SPRING WASHER

spring

1шт.

18

3121407R92

LIGHTER, CIGARETTE

LIGHTER cigar

1шт.

19

NSS

NOT SOLD SEPARAT

NOT USED IN THIS APPLICATION

1шт.

20

92090C1

HARNESS

CABLE cigar lighter

1шт.

21

3123431R1

CABLE

tachometer to fuel gauge ground

1шт.

23

1536091C1

FLASHER UNIT

SWITCH headlight dip, heavy duty flasher box. Replaces 3125854R1. P/N 1536654C1 is the 3 wire harness.

1шт.

23

3121406R1

SWITCH

headlight dip, Serial Range: (Optional-3125854R1)

1шт.

120395

WASHER

plain, 3/8 inch

1шт.

24

245909C1

SWITCH ASSY

SWITCH rocker, Start Serial: 18001

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

82525C1

DECAL

DECAL, 4WD switch, green

1шт.

25

3125984R1

FLASHER UNIT

UNIT flasher, park brake warning

1шт.

26

1500963C1

HARNESS

instrument panel

1шт.

27

3113429R1

PLUG

blanking (t.a. control)

1шт.

28

245918C1

LENS

PLUG blanking (m.f.d switch)

1шт.

29

538240R1

PLUG

blanking (Cigarette lighter)

1шт.

30

92388C1

KEY

ignition switch

1шт.
