Запчасти Case IH 585 (4-128) - ROPS CANOPY WIRING AND LIGHTS (04) - ELECTRICAL SYSTEMS

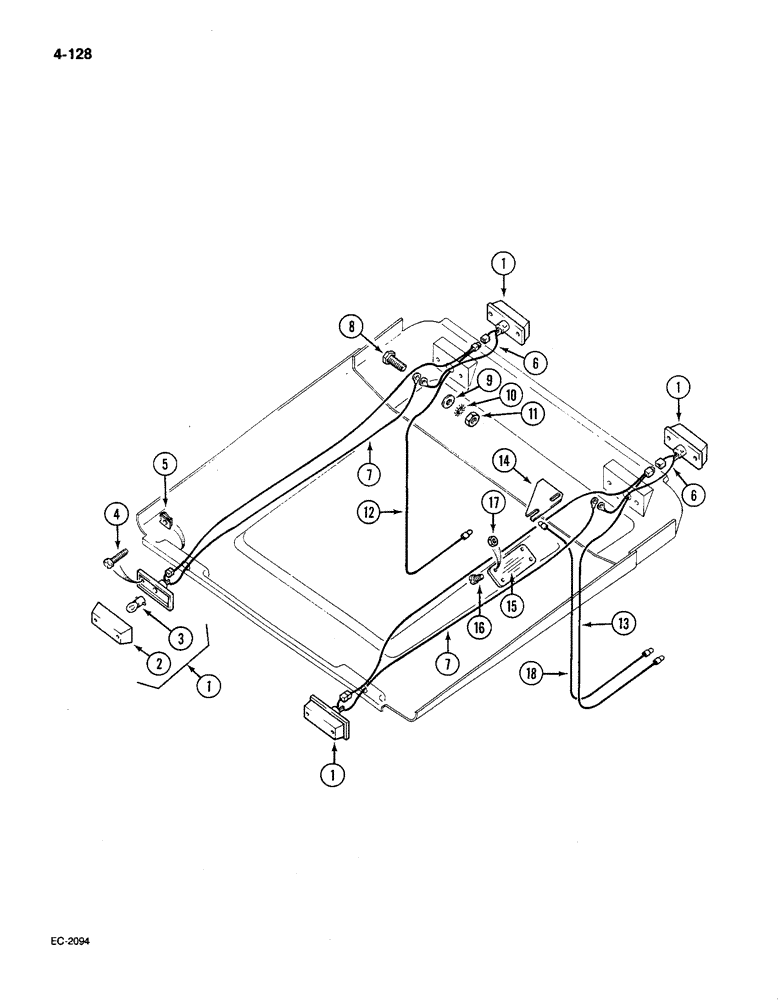

Схема запчастей Case IH 585 - (4-128) - ROPS CANOPY WIRING AND LIGHTS (04) - ELECTRICAL SYSTEMS
1
9
15
6
18
16
6
3
7
1
11
7
10
14
1
5
12
1
4
13
8
2
17

Артикул

Название

Примечание

Количество

1

130882C91

LAMP

LIGHT warning, Includes: Ref. 2 and 3

4шт.

2

130883C1

LENS

amber

1шт.

3

9417866

BULB,C6, #1156, 12.8V

LAMP type C-6, trade No. 1156

1шт.

4

27619R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/2"

SCREW pan, cross recess tapping, No. 10 x 2-1/2 inch

8шт.

5

684322R1

SPRING NUT

U-type spring

8шт.

6

111264C3

CABLE

ground, rear lights

2шт.

7

118219C1

CABLE

ground, front lights

2шт.

8

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

2шт.

9

120391

WASHER,#10

flat, 0.219 x 0.5 x 0.036 inch

2шт.

10

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER lock, external tooth, No. 10

2шт.

11

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

12

118384C1

CABLE

warning light, right

1шт.

13

118383C1

CABLE

warning light, left

1шт.

14

118522C1

BRACKET

radio mounting

1шт.

174878

WASHER

lock, 1/4 inch

1шт.

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120396

WASHER

flat, 0.531 x 1.063 x 0.074 inch

2шт.

15

118258C1

PANEL

GRILLE speaker

2шт.

16

28058R1

SCREW

oval, cross recess machine No. 8 x 3/4 inch

8шт.

17

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

hex, No. 8, with lock washer

8шт.

18

118523C2

CABLE

radio power

1шт.

Выбрано товаров: 22
