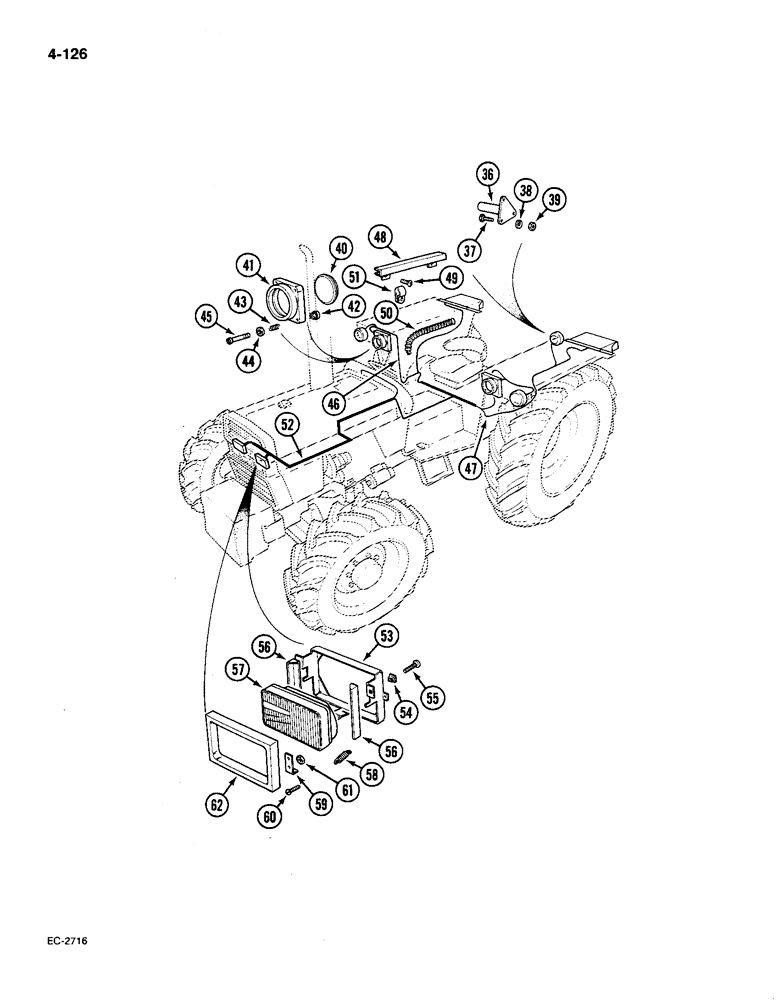

Запчасти Case IH 585 (4-126) - LIGHTING AND CONNECTIONS, WITHOUT CAB, WITH FLAT TOP FENDERS CONTD (04) - ELECTRICAL SYSTEMS

36

401471R1

POST

combination light

1шт.

37

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

hex, 3/8 NC x 5/8 inch, type 5

3шт.

38

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

39

120377

NUT,3/8" - 16, Gr 5

3шт.

40

390756R91

LAMP

sealed beam (work light)

2шт.

40

A42294

SEALED BEAM UNIT

LAMP flood, sealed beam (Replaces 390756R91)

2шт.

Case does not offer a 3 prong sealed beam lamp, The wiring is for 2 prong.

1шт.

41

3121674R1

HOUSING

headlight unit

2шт.

42

537014R1

INSERT

headlight housing

8шт.

43

528533R1

SPRING

mounting

8шт.

44

21870R1

WASHER

plain, 0.266 x 0.750 x 0.054 inch

8шт.

45

436740

SCREW,Slotted Pan Hd, #10-24 x 2"

pan head slotted, No. 10 x 2 inch

8шт.

46

1536337C1

HARNESS

new, R.H. with double sided direction lamps. Replaces 3123680R3

1шт.

47

1536336C1

HARNESS

new, L.H. with double sided direction lamps. Replaces 3123679R3

1шт.

48

3123182R2

CABLE SHEATH

CONDUIT fender, right (tractors without R.O.P.S)

1шт.

48

3123179R1

CABLE SHEATH

CONDUIT fender, left (tractors without R.O.P.S)

1шт.

49

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"

4шт.

50

1280346C2

CONDUIT

CHANNEL convolute conduit (tractors with R.O.P.S)

1шт.

51

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP harness (tractors with R.O.P.S)

6шт.

52

1500563R95

HARNESS main cable

1шт.

53

K304824

SUPPORT

HOUSING headlight

2шт.

54

K617503

NUT

nylon

4шт.

55

K603641

SCREW

adjusting

4шт.

56

K304832

MOLDING

rubber

4шт.

57

K300280

BEAM

LAMP head

2шт.

57

1536601C1

LAMP head, new fixed beam (Replaces K300280 and A139458)

2шт.

58

K658240

SPRING

lamp retaining

4шт.

59

94353C1

BRACKET

spring

4шт.

60

99997C1

SELF-TAP SCREW,Cross Pan Hd, #10-24 x 3/4"

SCREW pan head polyseal, No. 10 x 3/4 inch

4шт.

61

26303R1

HARDWARE,#10-24

NUT hex, machine No. 10

4шт.

62

K304831

RUBBER INSULATOR

SHROUD headlight, Serial Range: -18001

2шт.

62

99791C2

GUARD

SHROUD headlight, lined with adhesive foam, N.S.S., Start Serial: 18001

2шт.
