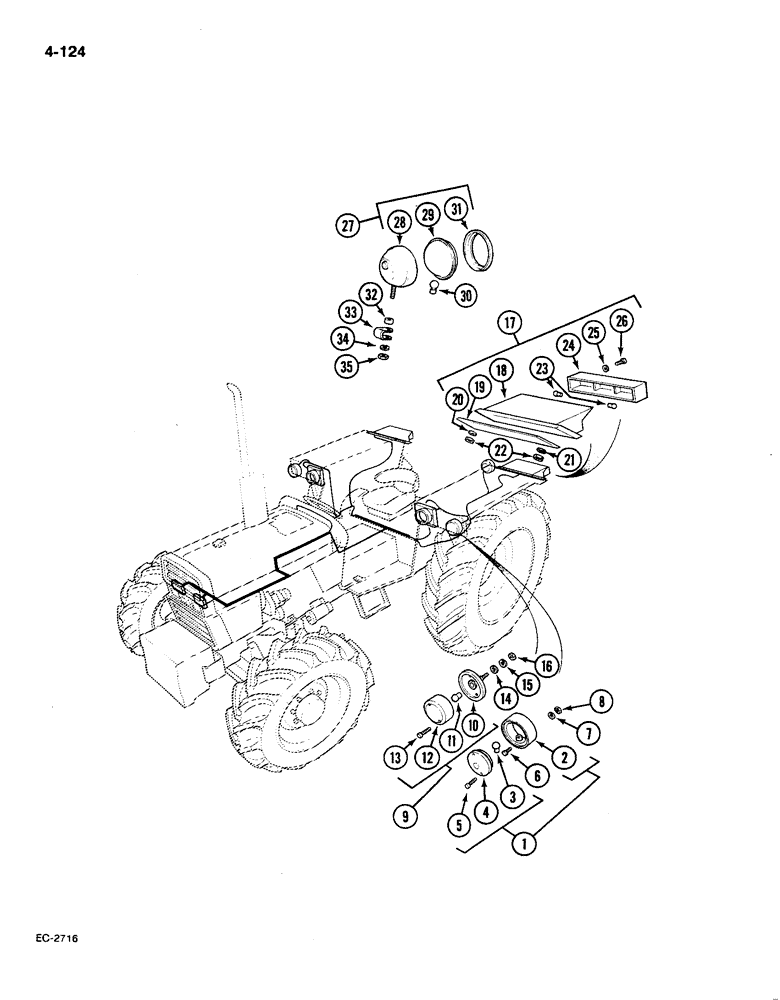

Запчасти Case IH 585 (4-124) - LIGHTING AND CONNECTIONS, WITHOUT CAB, WITH FLAT TOP FENDERS (04) - ELECTRICAL SYSTEMS

1

3123883R91

LIGHT

front flasher, Includes: Ref. 2-5

2шт.

2

NSS

NOT SOLD SEPARAT

HOUSING front flasher

1шт.

3

3025210R91

BULB

LAMP 12V/21W scc

1шт.

4

3125166R1

LENS

amber

1шт.

5

3125167R1

SCREW

lens mounting

2шт.

6

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT carriage, 1/4 NC x 1/2 inch

4шт.

7

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

8

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

9

3129500R91

INDICATOR LIGHT

LIGHT front flasher (Optional to 3123883R91), Includes: Ref. 10-13

2шт.

10

NSS

NOT SOLD SEPARAT

HOUSING front flasher

1шт.

11

3025210R91

BULB

LAMP 12V/21W scc

1шт.

12

3129540R1

LENS

amber

1шт.

13

3129541R1

SCREW

steel, M4 x 45 mm

2шт.

14

934948R1

WASHER,M6

flat, 6.4 x 12.5 x 1.6 mm

4шт.

15

933833R1

LOCK WASHER,M6

WASHER lock, M6

4шт.

16

30218R1

NUT hex, M6, grade 10

4шт.

17

3123872R91

INDICATOR LIGHT

LIGHT rear flasher, left

1шт.

17

3123873R91

INDICATOR LIGHT

LIGHT rear flasher, right, Includes: Ref. 18-26

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING flasher light

1шт.

19

3125154R1

CUSHION

rubber mounting, left light

1шт.

19

3125155R1

CUSHION

rubber mounting, right light

1шт.

20

3125157R1

WASHER

clinch bolt

2шт.

21

121801

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

22

3125158R1

NUT

clinch bolt

3шт.

23

3025210R91

BULB

LAMP 12V/21W scc

2шт.

24

3125161R1

LENS

amber, and reflector

1шт.

25

3112786R1

WASHER

lens screw

2шт.

26

3125156R1

SCREW

lens mounting

2шт.

27

387729R92

LIGHT ASSY.

LIGHT combination, rear and tail, Includes: Ref. 28-31

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING combination light

1шт.

29

80627C1

LIGHT ASSY.

LIGHT with bulb, Includes: Ref. 30

1шт.

30

NLS

NO LONGER SERVICED

LAMP type C-6, trade No. 1141

1шт.

31

676078R1

RETAINER

light, shockproof

1шт.

32

365503R1

SPACER

combination light

1шт.

33

350920R1

CLAMP

combination light

1шт.

34

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

35

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.
