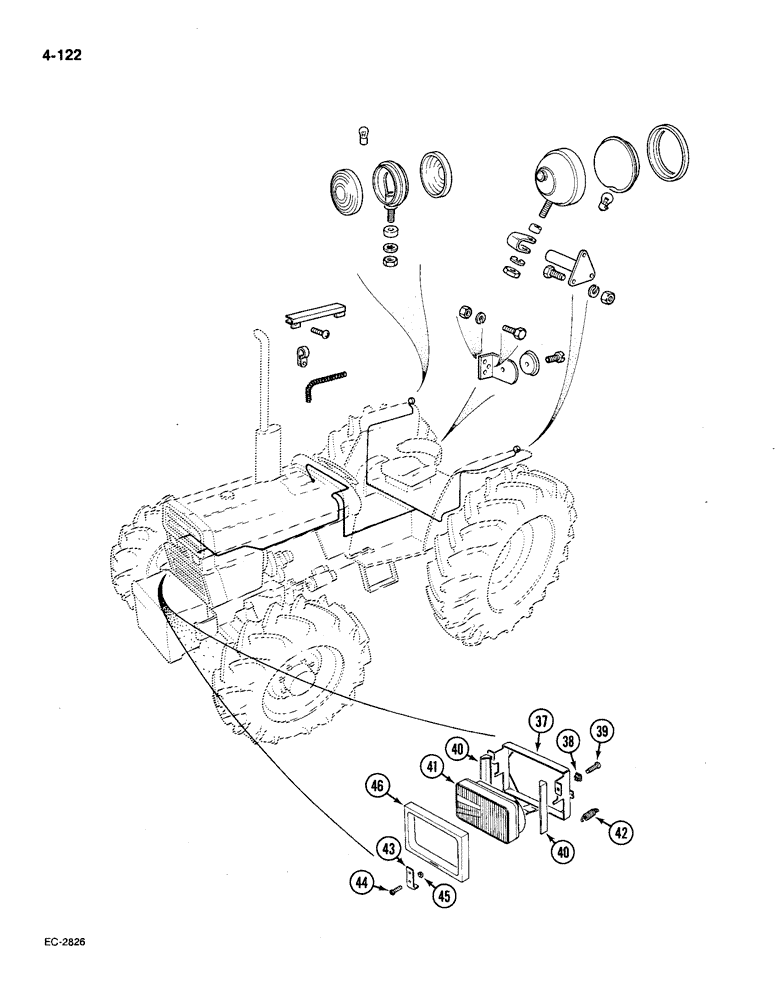

Запчасти Case IH 585 (4-122) - LIGHTING AND CONNECTIONS, WITHOUT CAB, WITH CROWN TOP FENDERS CONTD (04) - ELECTRICAL SYSTEMS

37

K304824

SUPPORT

HOUSING headlight

2шт.

38

K617503

NUT

nylon

4шт.

39

K603641

SCREW

adjusting

4шт.

40

K304832

MOLDING

rubber

4шт.

41

K300280

BEAM

LAMP head (Replaces by A139458)

2шт.

41

A139458

LAMP

head, vertical low (Replaces k300280)

2шт.

42

K658240

SPRING

lamp retaining

4шт.

43

94353C1

BRACKET

spring

4шт.

44

99997C1

SELF-TAP SCREW,Cross Pan Hd, #10-24 x 3/4"

SCREW pan head polyseal, No. 10 x 3/4 inch

4шт.

45

26303R1

HARDWARE,#10-24

NUT hex, machine No. 10

4шт.

46

K304831

RUBBER INSULATOR

SHROUD headlight, Serial Range: -18001

2шт.

46

99791C2

GUARD

SHROUD headlight, lined with adhesive foam, N.S.S., Start Serial: 18001

2шт.
