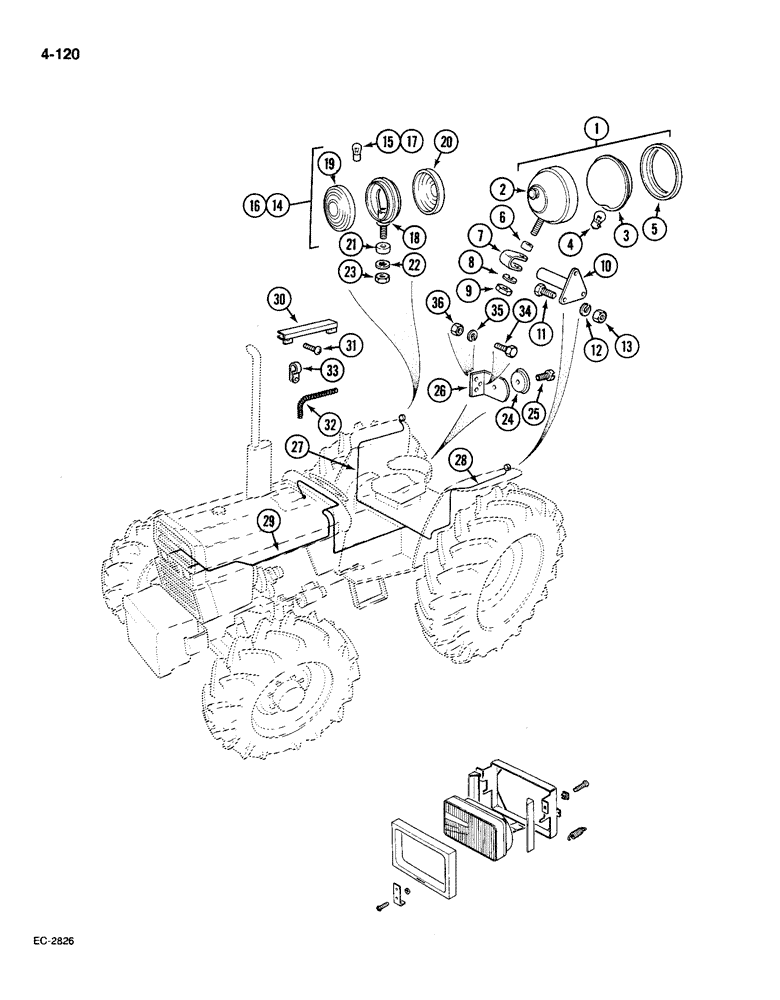

Запчасти Case IH 585 (4-120) - LIGHTING AND CONNECTIONS, WITHOUT CAB, WITH CROWN TOP FENDERS (04) - ELECTRICAL SYSTEMS

1

387729R92

LIGHT ASSY.

LIGHT combination, rear and tail, Includes: Ref. 2-5

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING combination light

1шт.

3

80627C1

LIGHT ASSY.

LIGHT with bulb, Includes: Ref. 4

1шт.

4

142456

BULB

LAMP type C-6, trade No. 1141

1шт.

5

676078R1

RETAINER

light, shockproof

1шт.

6

365503R1

SPACER

combination light

1шт.

7

350920R1

CLAMP

combination light

1шт.

8

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

9

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

10

401471R1

POST

combination light

1шт.

10

1333098C1

POST

combination light (orchard tractor)

1шт.

11

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

hex, 3/8 NC x 5/8 inch, type 5

3шт.

12

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

13

120377

NUT,3/8" - 16, Gr 5

3шт.

14

67538C92

HEADLIGHT

LIGHT flasher, Includes: Ref. 15

2шт.

15

9417866

BULB,C6, #1156, 12.8V

LAMP type C-6, trade No. 1156

1шт.

16

3123675R93

HEADLIGHT

LIGHT flasher (Optional to 67538C92) Includes: Ref.17-23

2шт.

17

3025210R91

BULB

LAMP, 12V/21W scc

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING flasher light

1шт.

19

3112682R1

LENS

amber, rear

1шт.

20

3112683R1

LENS

amber, front

1шт.

21

899282R1

O-RING

rubber sealing

2шт.

22

493-21046

LOCK WASHER,Int Tooth, 7/16"

lock, internal tooth, 7/16 inch

1шт.

23

425-117

NUT,7/16"-20, G5

hex, 7/16 inch NF (Replaces 272128)

1шт.

24

3118665R1

REFLECTOR

red

2шт.

25

260-5458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW tapping, phillips recess, No. 10 x 1/2 inch

2шт.

26

3125247R3

BRACKET

reflector

2шт.

26

1333043C1

BRACKET

reflector (orchard tractor)

2шт.

27

3123678R2

HARNESS

fender, right

1шт.

28

3123677R1

HARNESS

fender, left

1шт.

29

1500563C95

HARNESS

main cable

1шт.

30

3123182R2

CABLE SHEATH

CONDUIT fender, right (tractors without R.O.P.S)

1шт.

30

3123179R1

CABLE SHEATH

CONDUIT fender, left (tractors with R.O.P.S)

1шт.

31

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"

4шт.

32

1280346C2

CONDUIT

CHANNEL convolute conduit (tractors with R.O.P.S)

1шт.

33

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP harness (tractors with R.O.P.S)

6шт.

34

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

35

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

36

120376

NUT,5/16"-18, G5

2шт.

1536292C1

KIT

PACKAGE turn signal and flasher

1шт.
