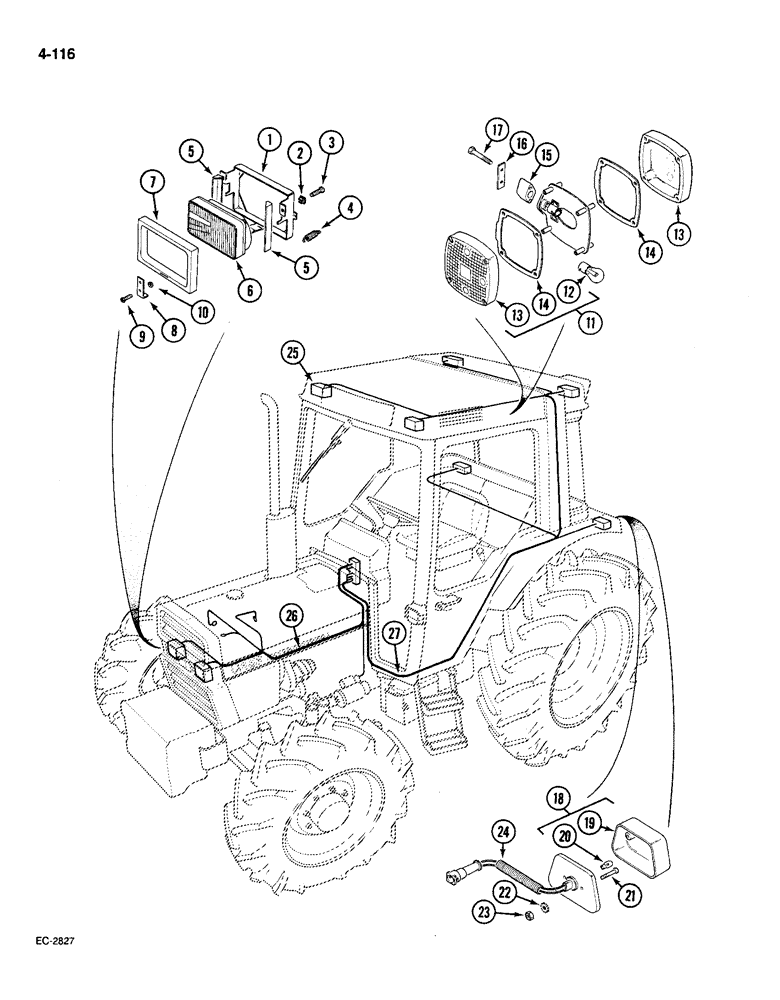

Запчасти Case IH 585 (4-116) - LIGHTING AND CONNECTIONS, WITH CAB (04) - ELECTRICAL SYSTEMS

1

K304824

SUPPORT

HOUSING headlight

2шт.

2

K617503

NUT

nylon

4шт.

3

K603641

SCREW

adjusting

4шт.

4

K658240

SPRING

4шт.

5

K304832

MOLDING

rubber

4шт.

6

A139458

LAMP

head, vertical low

2шт.

7

K304831

RUBBER INSULATOR

SHROUD headlight, Serial Range: -18001

2шт.

7

99791C1

GUARD

SHROUD headlight, Start Serial: 18001

2шт.

8

94353C1

BRACKET

spring

4шт.

9

26667R1

SCREW

pan head, cross recess, No. 10 x 3/4 inch

4шт.

10

26303R1

HARDWARE,#10-24

4шт.

11

91887C91

LIGHT ASSY.

LIGHT warning, double face, complete, Includes: Ref. 12-14

2шт.

12

A41264

BULB,#1156, 12V

1шт.

13

F63434

LENS

amber

2шт.

14

A43731

GASKET

lens

2шт.

15

98005C1

SPACER

warning light, left

1шт.

15

98006C1

SPACER

warning light, right

1шт.

16

1330757C1

PLATE

light mounting

2шт.

17

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

4шт.

18

91805C91

LAMP

LIGHT tail, complete, Includes: Ref. 19 and 20

2шт.

19

91929C1

LENS

red, tail

1шт.

20

26617R1

BULB,C2F, #168, 14V

1шт.

21

31108R1

SCREW,Cross Pan Hd, M5 x 30

2шт.

22

30659R1

LOCK WASHER,Ext Tooth, M5

2шт.

23

934871R1

NUT,M5, Cl 5

2шт.

24

91860C3

HARNESS

tail light

2шт.

25

1328615C1

LAMP, WORK

LIGHT working spot (see Figure 4-144)

4шт.

26

92109C2

HARNESS

front

1шт.

26

92348C1

HARNESS

front

1шт.

27

245662C5

HARNESS

rear, cab

1шт.
