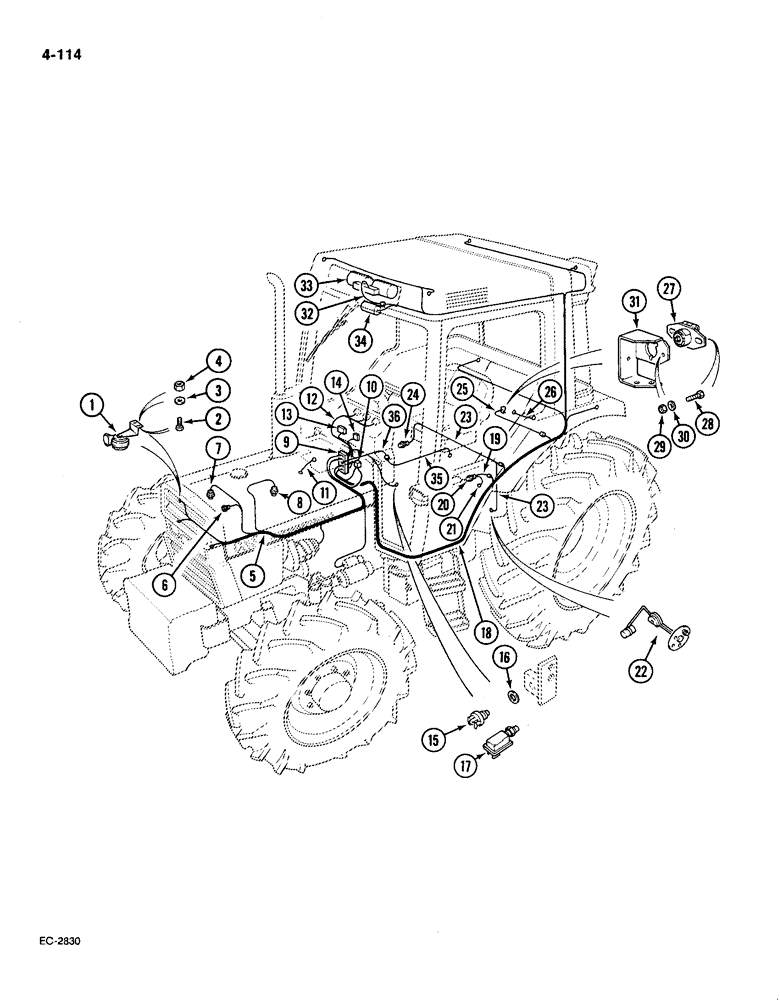

Запчасти Case IH 585 (4-114) - CHASSIS WIRING AND SWITCHES, WITH CAB (04) - ELECTRICAL SYSTEMS

1

1536115C1

HORN

new, replaces 3121205R91

1шт.

2

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

3

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

2шт.

4

3119440R1

LOCK NUT

self-locking, 1/4 inch NC

2шт.

5

92109C2

HARNESS

front (25a in-line fuse), Serial Range: -21700

1шт.

5

92348C1

HARNESS

front (Auto-reset cicuit breaker), Start Serial: 21700

1шт.

6

3224405R91

RESTRICTION SWITCH

SWITCH air cleaner restriction indicator

1шт.

7

3127956R1

TEMPERATURE SENDER

TRANSMITTER water temperature, Icknield

1шт.

8

91450C1

SWITCH, PRESSURE

SWITCH engine oil pressure, oil sending unit

1шт.

9

3399527R2

CONNECTOR, ELEC

CONNECTOR bulhead (see Figure 4-142)

1шт.

10

403069R1

CIRCUIT-BREAKER,30A

BREAKER circuit, 30 amp (see Figure 4-142)

1шт.

11

1500152C1

CABLE ASSY.

CABLE earth

1шт.

12

91850C4

HARNESS

instrument panel

1шт.

13

NSS

NOT SOLD SEPARAT

BLOCK fuse (see Figure 4-142)

1шт.

14

NSS

NOT SOLD SEPARAT

BLOCK mounting, relay (see Figure 4-142)

1шт.

15

3114409R91

SWITCH

plunger, (tractor without 2sps)

1шт.

16

Q3476

WASHER

flat, 0.594 x 0.938 x 0.21 inch

1шт.

17

1964885C2

SWITCH

plunger, 2 SPS neutral starting (see Figure 4-118)

1шт.

18

245662C5

HARNESS

rear, cab, Serial Range: -21700

1шт.

18

1328852C2

HARNESS

cab, Start Serial: 21700

1шт.

19

1500156C2

CABLE flying lead

1шт.

20

92161C2

PARK BRAKE SWITCH

SWITCH push button, park brake

1шт.

21

1536293C1

CABLE

new, flying lead, replaces 1500157C1

1шт.

22

1500494C91

FUEL GAUGE

TRANSMITTER sender, fuel level

1шт.

23

1500495C1

HARNESS

diff lock/fuel tank sender

1шт.

24

3147137R1

SWITCH

SWITCH differential lock, park brake warning light

1шт.

25

91919C3

HARNESS

7 pin socket

1шт.

26

92114C1

CABLE

flying lead, 7 pin socket

1шт.

27

121645C1

MULTIPOLE CONNECTOR,7 Pin

SOCKET , with boot 7 Pin

1шт.

28

931417R1

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

29

30208R1

NUT,M6, Cl 10

hex, M6, class 10

2шт.

30

933833R1

LOCK WASHER,M6

WASHER lock, M6

2шт.

31

98052C1

SUPPORT ASSY.

SUPPORT 7 pin socket

1шт.

32

1987425C1

HARNESS

wire, new, air conditioning, replaces 245493C4

1шт.

33

1280294C92

HEATER

BLOWER H.V.A.C (see Figure 9-594)

1шт.

34

3401302R93

WIPER MOTOR

MOTOR windscreen wiper (see Figure 9-534)

1шт.

35

82634C1

CABLE

4 wheel drive solenoid (see Figure 4-136)

1шт.

36

92118C1

CABLE

4WD, Serial Range: solenoid-bulkhead

1шт.
