Запчасти Case IH 585 (3-110) - FUEL TANK MOUNTINGS, WITH CAB (03) - FUEL SYSTEM

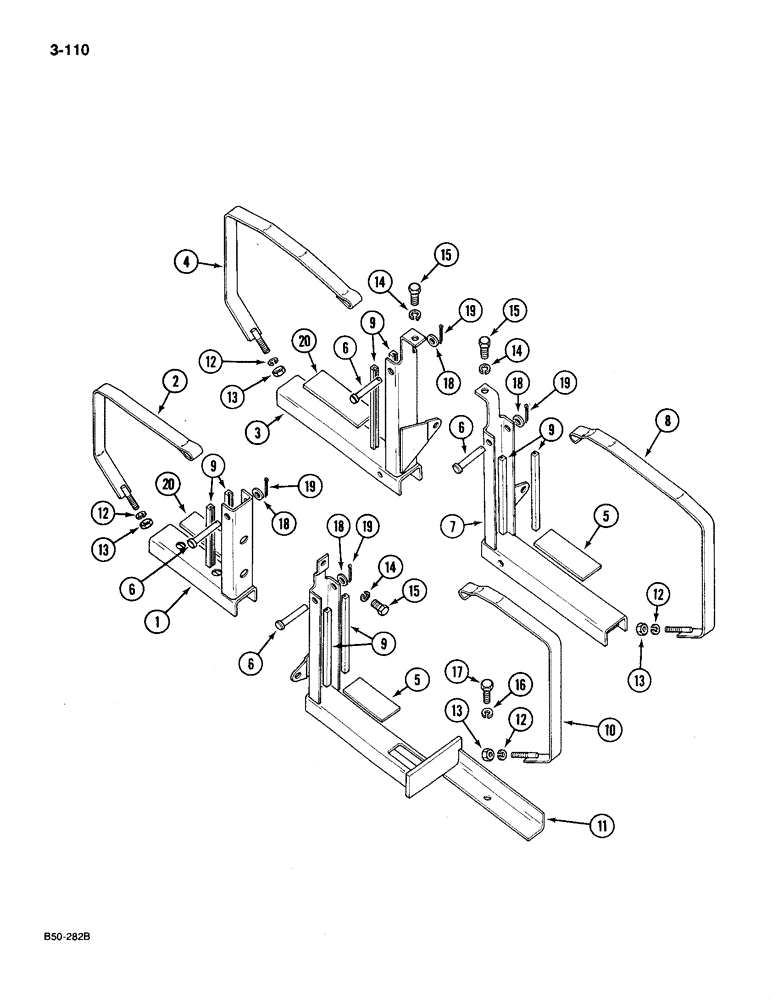

Схема запчастей Case IH 585 - (3-110) - FUEL TANK MOUNTINGS, WITH CAB (03) - FUEL SYSTEM
18
20
19
16
2
19
5
6
12
15
10
13
9
18
19
17
19
18
7
9
12
12
20
14
13
15
6
8
5
4
9
14
1
6
11
13
12
13
15
14
9
6
3
18

Артикул

Название

Примечание

Количество

1

1500265C2

SUPPORT ASSY.

SUPPORT front right

1шт.

2

1500275C1

STRAP

complete

1шт.

3

1500268C2

SUPPORT ASSY.

SUPPORT rear right

1шт.

4

1500281C1

STRAP

complete

1шт.

5

NSS

NOT SOLD SEPARAT

STRIP rubber, left (Cut from 1500482C1)

2шт.

5

1500482C1

STRIP

rubber, bulk length (100 foot)

1шт.

6

1500270C1

HEADED PIN

PIN headed

4шт.

7

1500262C2

SUPPORT ASSY.

SUPPORT rear left

1шт.

8

1500278C1

STRAP

SRAP complete

1шт.

9

1502167C1

CHANNEL

STRIP edging

8шт.

10

1500271C1

STRAP

complete

1шт.

11

82941C1

CHANNEL

SUPPORT fuel tank and battery box

1шт.

12

934309R1

LOCK WASHER,M8

WASHER lock, M8

4шт.

13

30167R1

NUT,M8, Cl 10

hex, M8, class 10

4шт.

14

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

15

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch, grade 5

3шт.

16

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

18

933587R1

WASHER,M12 x 24 x 2.5

flat, 13 mm

4шт.

19

934792R1

COTTER PIN,M3.2 x 20

PIN cotter, 3.2 x 20 mm

4шт.

20

NSS

NOT SOLD SEPARAT

STRIP rubber, right (Cut from 1500482C1)

2шт.

20

1500482C1

STRIP

rubber, bulk length (100 foot)

1шт.
