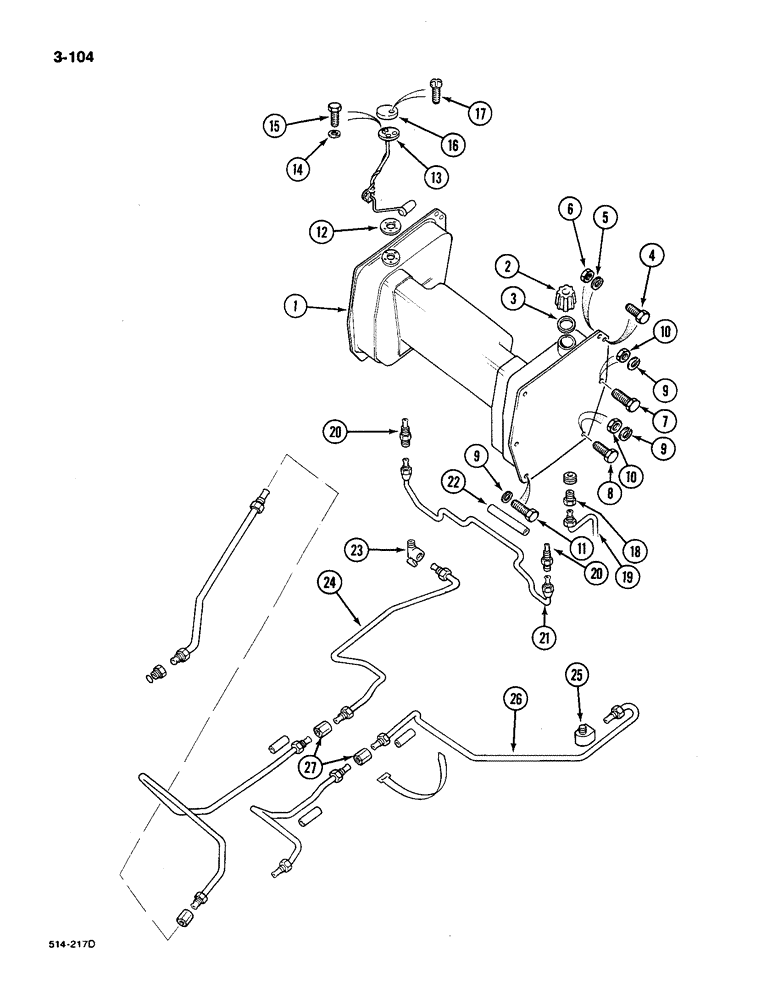

Запчасти Case IH 585 (3-104) - FUEL TANK AND PIPING, WITHOUT CAB (03) - FUEL SYSTEM

1

1333074C1

TANK

fuel, with filler cap (Orchard tractor)

1шт.

1

536035R93

FUEL TANK

TANK fuel, with filler cap, Includes: Ref. 2 and 3

1шт.

2

536845R1

PLUG

CAP fuel tank filler

1шт.

2

538063R1

PLUG

CAP filler, Serial Range: (Optional-536845R1)

1шт.

Similar to Radiator Cap w/ 2 teeth

1шт.

3

23977DD

GASKET,47.5mm ID x 65.89mm OD x 2.39mm Thk

fuel tank filler cap

1шт.

4

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

hex, 3/8 NC x 5/8 inch, type 5

4шт.

5

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

120377

NUT,3/8" - 16, Gr 5

4шт.

7

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

hex, 5/16 NC x 1 inch, class 5

2шт.

8

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

hex, 5/16 NC x 5/8 inch

6шт.

9

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

10

120376

NUT,5/16"-18, G5

8шт.

11

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex 5/16 NC x 3/4 inch

2шт.

12

528359R1

GASKET

sending unit

1шт.

13

529790R1

SENDER UNIT

TRANSMITTER fuel gauge, AC Delco (Use with AC Delco gauge 3121239R1)

1шт.

13

3129841R91

FUEL GAUGE

TRANSMITTER fuel gauge, Icknield (Use with Icknield gauge 3129840R1)

1шт.

14

533199R1

SEALING WASHER

sending unit cover

4шт.

14

796002R1

COPPER WASHER

WASHER copper

1шт.

15

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

BOLT hex, machine No. 10 x 1/2 inch,Course threads

4шт.

15

451625

SCREW

hex, machine No. 10 x 1/2 inch

1шт.

16

528360R2

COVER

sending unit

1шт.

17

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

phillips pan, machine No. 10 x 3/8 inch

1шт.

18

222-1014

HYD CONNECTOR,1/2"-20 Inv Fl x 1/8" NPT

ADAPTOR flared tube, 5/16 inch, used with underslung exhaust, Serial Range: -18001

1шт.

19

539938R1

VENTILATION PIPE

TUBE tank breather, used with underslung exhaust, Serial Range: -18001

1шт.

20

1502069C1

PIPE

clearance

2шт.

21

1502067C2

PIPE,0.312" OD, 811.5, 96.5 mm Length

TUBE crossover

1шт.

21

1333089C1

PIPE

TUBE crossover (Orchard tractor)

1шт.

22

530107R1

FUEL HOSE,0.31" ID x 10.00"

Balance Tube Spacer 0.31" ID x 10.00"

1шт.

23

528926R1

VALVE,1/2" - 20 x 3/8" - 18 NPTF

shut-off

1шт.

24

3129561R1

PIPE,8 mm OD, 932.2, 259.1 mm Length

TUBE union to shut-off valve

1шт.

25

137422

ELBOW

90 degree, rear fuel return tube

1шт.

26

3129262R2

PIPE

TUBE fuel return, rear

1шт.

27

442337

NUT

UNION inverted flared tube, 5/16 inch

2шт.

27

442395

FITTING

UNION inverted flared tube, 5/16 inch, Serial Range: (Optional-442337)

2шт.
