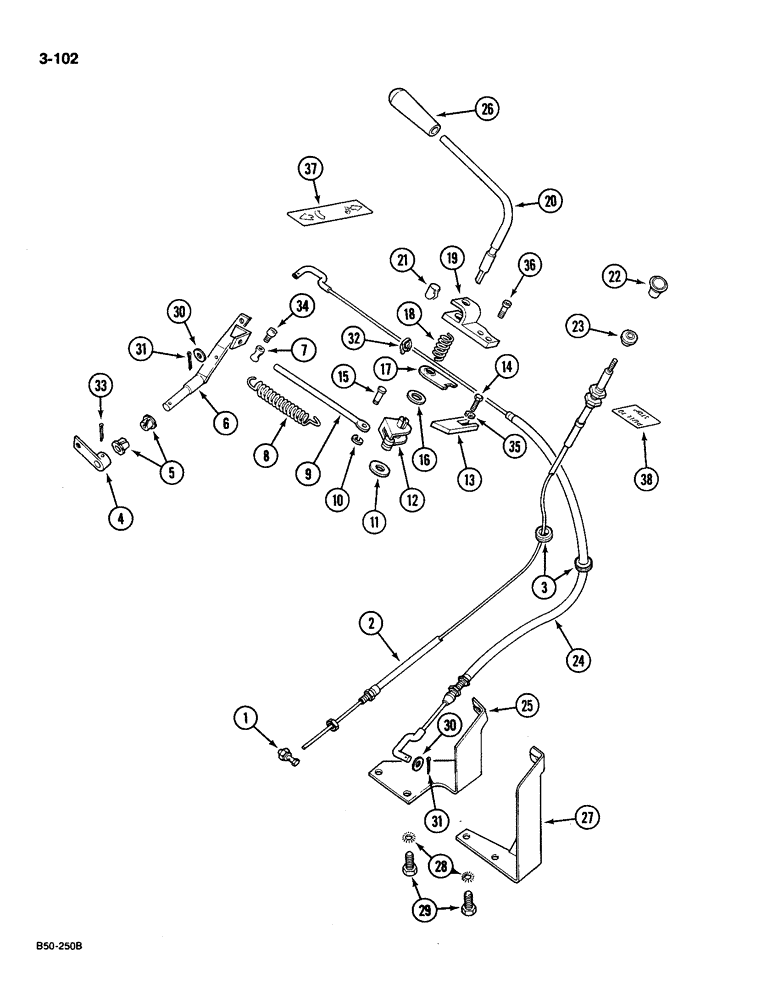

Запчасти Case IH 585 (3-102) - GOVERNOR AND FUEL SHUT OFF CONTROL, WITH CAB (03) - FUEL SYSTEM

1

787190R1

COLLAR

PIVOT fuel shut-off lever

1шт.

2

3234947R2

CABLE

fuel shut-off control (VA injection pump)

1шт.

2

1333003C1

CABLE ASSY.

CABLE fuel shut-off control, 980 mm (VE injection pump)

1шт.

3

117959

GROMMET,5/16" ID x .719" x .062"

rubber, 5/16 x 23/32 x 5/16 inch

2шт.

4

3234928R1

ARM ASSY.

ARM governor control

1шт.

5

3234944R1

BUSHING

governor control lever

2шт.

6

3234940R4

LEVER ASSY.

LEVER governor control

1шт.

7

3234925R3

BUSHING

COLLAR stop

1шт.

8

3234916R1

SPRING

tension

1шт.

9

3234939R2

ROD

governor control

1шт.

10

934030R1

CIRCLIP,M7

RING retaining, external, 5.26 mm

1шт.

11

3229934R1

DISC

WASHER friction, lower

1шт.

12

3229938R1

LEVER ASSY.

LEVER governor control

1шт.

13

3234923R1

STOP

adjustable

1шт.

14

717797R1

BOLT,Hex, M6 x 1 x 18mm, Cl 8.8, Full Thd

hex, M6 x 18 mm

1шт.

15

3234920R1

PIN

headed

1шт.

16

3229935R1

FRICTION WASHER

WASHER friction, upper

1шт.

17

3234919R1

PLATE

governor control

1шт.

18

3229932R1

SPRING

compression

1шт.

19

3234926R1

SUPPORT ASSY.

SUPPORT governor control handle

1шт.

20

3234942R1

ROD,10mm OD

ROD handle, governor control

1шт.

21

3234968R1

SPRING CLIP

CLIP governor control handle

1шт.

22

3221357R1

BUTTON

KNOB fuel shut-off control

1шт.

23

3223919R1

CAP

GROMMET instrument panel

1шт.

24

3401585R2

CABLE ASSY.

CABLE hand throttle

1шт.

25

1500101C1

SUPPORT

BRACKET governor control, used with 3234947R2 (VA injection pump)

1шт.

26

3221355R1

KNOB

HANDLE governor control

1шт.

27

1332947C1

SUPPORT

BRACKET governor control (VE injection pump)

1шт.

28

934491R1

LOCK WASHER,Ext Tooth, M10

WASHER lock, external tooth, 10mm

2шт.

29

931695R1

BOLT,Hex, M10 x 1.5 x 12mm, Cl 8.8, Full Thd

2шт.

30

934948R1

WASHER,M6

flat, 6.4 x 12.5 x 1.6 mm

2шт.

31

934790R1

COTTER PIN,M3.2 x 16

PIN cotter, 3.2 x 16 mm

2шт.

32

3221347R2

CIRCLIP

RING retaining

1шт.

33

932196R1

LOCK PIN,M5 x 20, Slotted

PIN spring slotted, 5 x 20 mm

1шт.

34

931381R1

HEX SOC SCREW,M5 x 8mm, Cl 8.8

hex socket, M5 x 8 mm, grade 8.8

1шт.

35

934055R1

WASHER,M6.4

lock, 6 mm

1шт.

36

934600R1

HEX SOC SCREW,M8 x 25mm, Cl 8.8

2шт.

37

533592R1

PRODUCT GRAPHIC

DECAL governor control

1шт.

38

1333014C1

DECAL

fuel control (VE injection pump)

1шт.

38

1135126R2

DECAL

fuel control (VA injection pump)

1шт.
