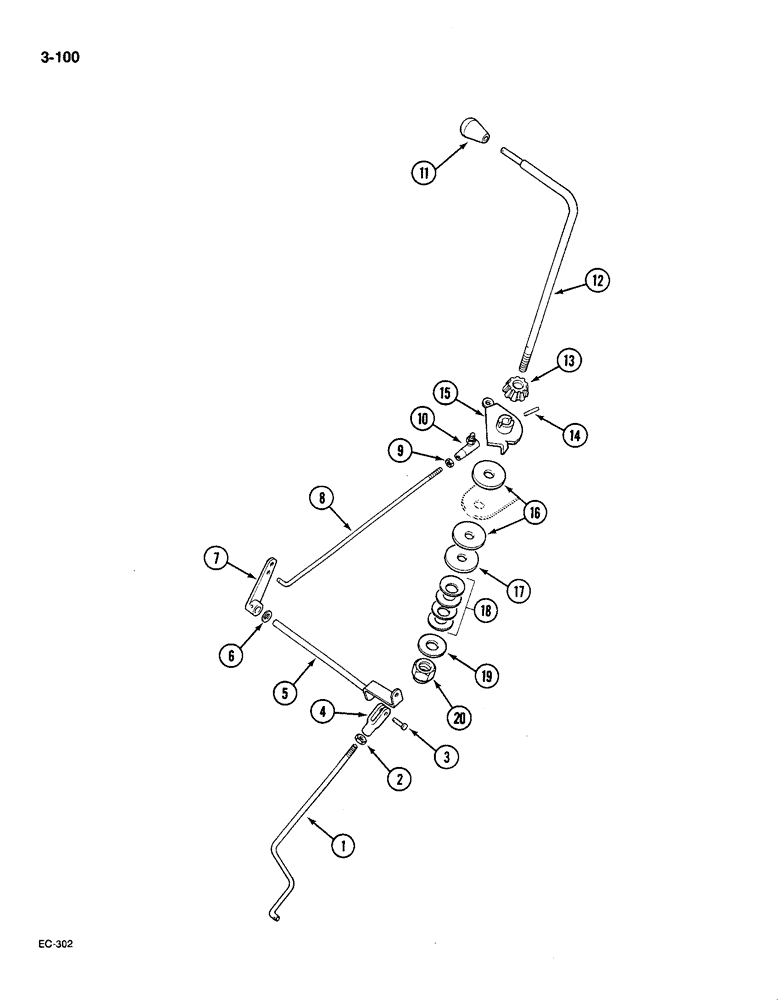

Запчасти Case IH 585 (3-100) - GOVERNOR CONTROLS, BOSCH, WITHOUT CAB (03) - FUEL SYSTEM

1

1332945C1

ROD

front governor control, version with VE injection pump

1шт.

1

528334R4

ROD

front governor control, version with VA injection pump

1шт.

103361

PIN, SPLIT (COTTER)

PIN cotter, 1/16 x 1/2 inch

1шт.

2

114492

JAM NUT,Jam, 1/4"-28, G5

hex, 1/4 inch NF, grade 5

1шт.

3

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN clevis, 1/4 x 0.770 inch

1шт.

4

213-124

ADJUSTABLE CLEVIS,1/4"-28

CLEVIS - adjustable, 1/4 NF x 1-11/16 inch

1шт.

4

1500842C1

YOKE

CLEVIS adjustable, Serial Range: (Optional-116534)

1шт.

5

528325R2

ARM

idler, governor control

1шт.

6

Q1597

WASHER

plain, 0.406 x 0.734 x 0.056 inch

1шт.

6

20285H

WASHER

plain, 0.406 x 0.75 x 0.105 inch, Serial Range: (Optional-Q1597)

1шт.

7

539572R2

LEVER

idler arm

1шт.

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

8

528336R2

ROD

rear governor control

1шт.

NLS

NO LONGER SERVICED

PIN cotter, 1/16 x 1/2 inch

1шт.

9

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

10

191474

BALL JOINT

JOINT ball, 1/4 inch NF, type C

1шт.

10

192227

BALL JOINT

JOINT ball, 1/4 inch NF, type A, Serial Range: (Optional-191474)

1шт.

10

27258R1

BALL JOINT

JOINT ball, 1/4 inch NF, type G, Serial Range: (Optional-191474)

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

hex, 1/4 inch NF, grade 5

1шт.

25-114

NUT,1/4"-28, G5

hex, 1/4 inch NF

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

402584R1

BUTTON

KNOB control handle

1шт.

12

3121391R3

ROD

control handle

1шт.

12

1333062C1

ROD

control handle (Orchard version)

1шт.

13

528290R1

GUIDE RING

COLLAR control handle

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

SCREW set, hex socket, No. 8 x 3/8 inch

1шт.

14

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

15

528291R3

ARM ASSY.

ARM governor control rod

1шт.

16

3123275R1

FRICTION WASHER

DISC governor control friction

2шт.

17

22042R1

WASHER

flat, 17/32 x 2 x 7/64 inch

1шт.

18

1500778C1

DISC

spring, 24.4 x 12.9 x 0.90 mm

4шт.

19

22187R1

WASHER

flat, 17/32 x 1-1/8 x 3/64 inch

1шт.

20

894980H1

LOCK NUT

hex, self locking, 1/2 inch NF

1шт.
