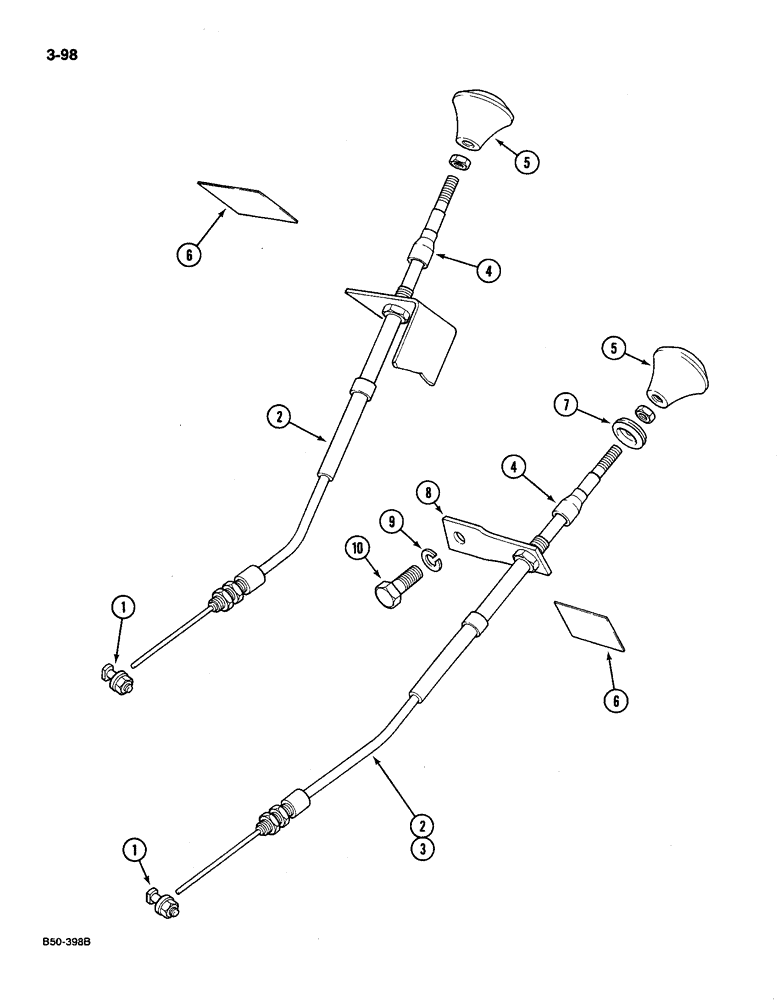

Запчасти Case IH 585 (3-098) - FUEL SHUT OFF CONTROL, WITHOUT CAB (03) - FUEL SYSTEM

1

787190R1

COLLAR

PIVOT fuel shut-off lever

1шт.

2

3234947R2

CABLE

fuel shut-off control (VA injection pump)

1шт.

2

1333179C1

CABLE

fuel shut-off control, 1254 mm (VE injection pump)

1шт.

3

1333003C1

CABLE ASSY.

CABLE fuel shut-off control, 980 mm, repositioned control - left lower instrument housing side panel

1шт.

4

1288353C1

BOOT

rubber

1шт.

5

3221357R1

BUTTON

KNOB fuel shut-off control

1шт.

6

1135126R2

DECAL

fuel control (VA injection pump)

1шт.

6

1333014C1

DECAL

fuel control (VE injection pump)

1шт.

7

1333007C1

GROMMET

diaphram, 3/4 inch, repositioned control - left lower instrument housing side panel

1шт.

8

1333002C1

BRACKET

mounting, fuel shut-off control, repositioned control - left lower instrument housing side panel

1шт.

9

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

hex, 3/8 NC x 3/4 inch, grade 5

1шт.
