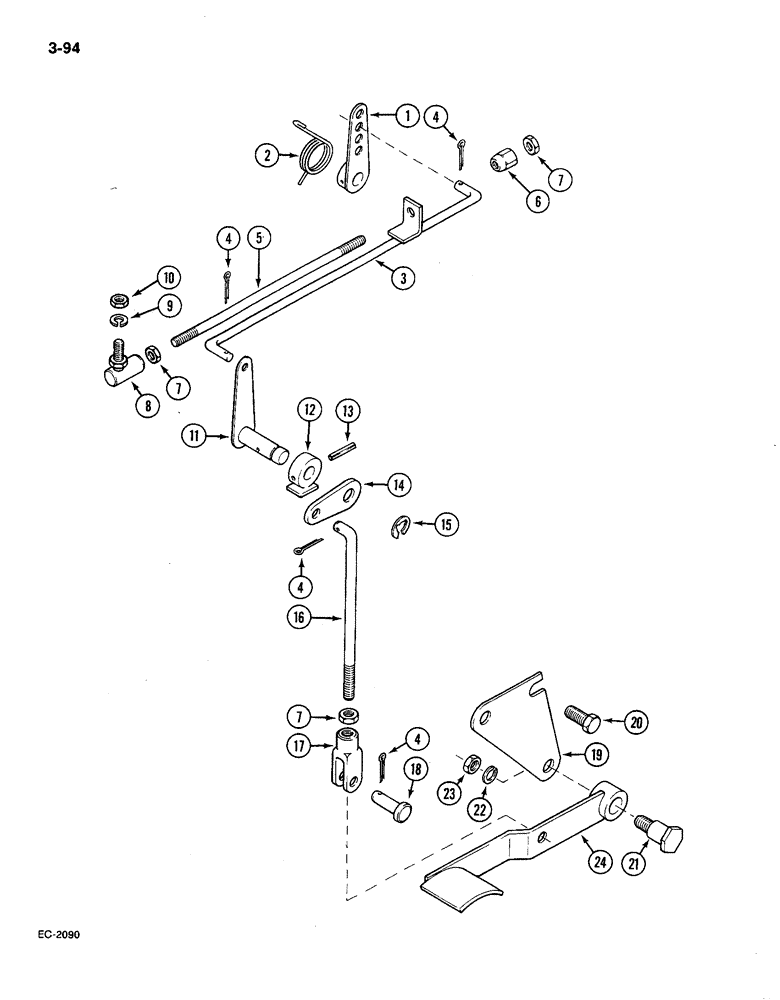

Запчасти Case IH 585 (3-094) - FOOT PEDAL ACCELERATOR, WITHOUT CAB (03) - FUEL SYSTEM

1

539572R2

LEVER

idler arm

1шт.

2

539012R1

SPRING

torsion

1шт.

3

528767R1

ROD ASSY.

ROD pull, bellcrank

1шт.

4

NLS

NO LONGER SERVICED

PIN cotter, 1/16 x 1/2 inch

4шт.

5

528775R1

ROD

pick-up, foot accelerator

1шт.

5

1333041C1

ROD

pick-up, foot accelerator (Orchard version)

1шт.

6

528776R1

NUT

swivel, foot accelerator pick-up rod

1шт.

7

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

3шт.

8

19318R1

BALL JOINT

JOINT ball, 1/4 inch NF, type F

1шт.

8

191474

BALL JOINT

JOINT ball, 1/4 inch NF, type C, Serial Range: (Optional-19318R1)

1шт.

8

192227

BALL JOINT

JOINT ball, 1/4 inch NF, type A, Serial Range: (Optional-19318R1)

1шт.

8

27258R1

BALL JOINT

JOINT ball, 1/4 inch NF, type G, Serial Range: (Optional-19318R1)

1шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

120367

NUT,Hex, 1/4" - 28, Gr 5

hex, 1/4 inch NF, grade 5

1шт.

11

528760R3

ARM

bellcrank

1шт.

12

532967R2

ARM

actuating

1шт.

13

19368R1

PIN,5/32" x 1", Coiled

1шт.

14

528764R3

LEVER

bellcrank

1шт.

15

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

1шт.

16

528759R5

ROD

pull, foot accelerator

1шт.

16

1333120C1

ROD

pull, foot accelerator (Orchard version)

1шт.

17

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS adjustable, 1/4 inch NF

1шт.

17

1500842C1

YOKE

CLEVIS adjustable, Serial Range: (Optional-104036)

1шт.

18

138083

PIN

clevis, 1/4 x 25/32 inch

1шт.

19

528754R2

SUPPORT

BRACKET support, foot accelerator pedal

1шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

hex, 3/8 NC x 3/4 inch, grade 5

2шт.

21

532965R3

BOLT,3/8" - 16 x 1.7"

foot pedal pivot

1шт.

22

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

23

120377

NUT,3/8" - 16, Gr 5

1шт.

24

69409C91

PACKAGE

KIT service, foot pedal accelerator

1шт.
