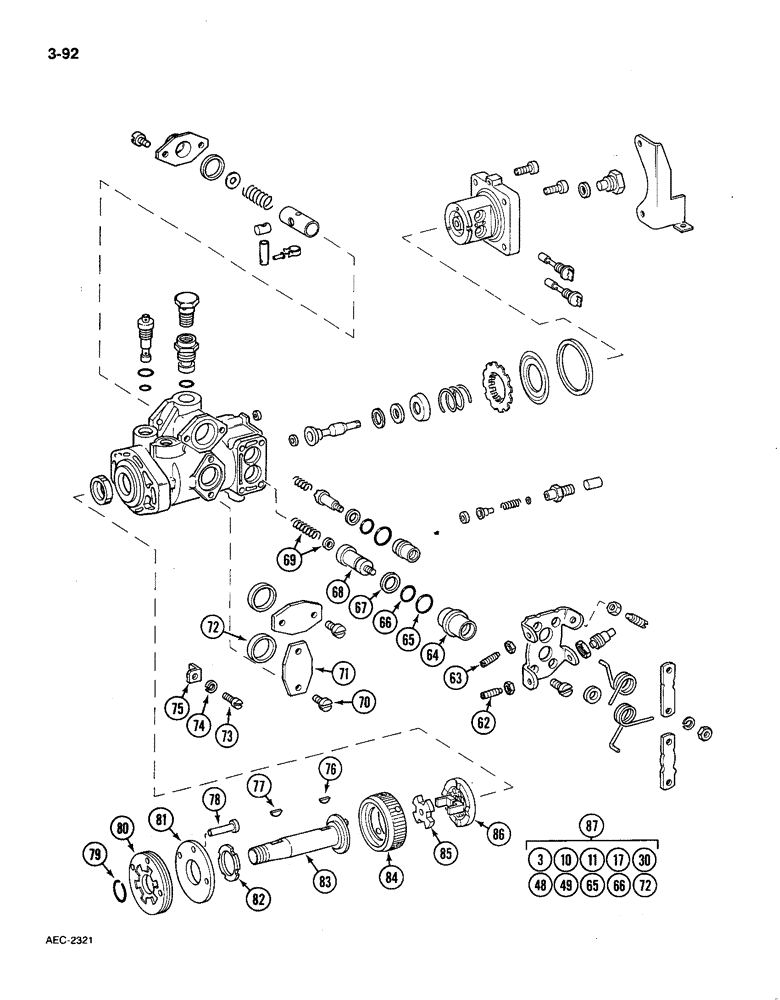

Запчасти Case IH 585 (3-092) - FUEL INJECTION PUMP, VA, BOSCH INJECTION C.R. PUMP CONTD (03) - FUEL SYSTEM

62

3059074R1

SCREW

stop

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6, zinc plated, class 8

1шт.

63

3079404R1

BOLT

stop

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6, zinc plated, class 8

1шт.

64

3078524R1

BUSHING

1шт.

65

785602R1

O-RING

control plunger and throttle shaft bushing

1шт.

Part of PACKAGE P/N 3078526R91, Ref. 87, see Figure 3-92

1шт.

66

3078363R1

O-RING

control plunger shaft

1шт.

Part of PACKAGE P/N 3078526R91, Ref. 87, see Figure 3-92

1шт.

67

3078523R1

WASHER

control plunger shaft

1шт.

68

3078521R1

SHAFT

control plunger

1шт.

69

3079144R91

PACKAGE

service, control plunger spring

1шт.

70

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

machine, pan head, M6 x 12 mm

2шт.

71

3078486R1

COVER

timing window

1шт.

72

3078485R1

RING

packing, timing window cover

1шт.

Part of PACKAGE P/N 3078526R91, Ref. 87, see Figure 3-92

1шт.

73

931326R1

SCREW,Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8

pan head, machine, M4 x 5 mm

1шт.

74

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER lock, 4 mm

1шт.

75

3132598R1

INDICATOR

POINTER timing

1шт.

76

3132395R1

KEY

woodruff

1шт.

77

3079101R1

WOODRUFF KEY

KEY woodruff

1шт.

78

3078477R1

BOLT,CSK

supporting ring

2шт.

79

3078474R1

RING

retaining

1шт.

80

3078475R91

PUMP

charge

1шт.

81

3078476R1

RING

support, charge pump

1шт.

82

3078479R1

THRUST WASHER

thrust roller retainer

1шт.

83

3078473R1

SHAFT

drive

1шт.

84

3078478R91

RETAINER

roller assembly

1шт.

85

3059007R1

DISC

cam face, cross type

1шт.

86

3078480R1

CAM

face

1шт.

87

3078526R91

GASKET KIT

PACKAGE gasket, injection pump, see Figures 3-86 to 3-92, Includes: Ref. 3, 10, 11, 17, 30, 48, 49, 65, 66 and 72

1шт.
