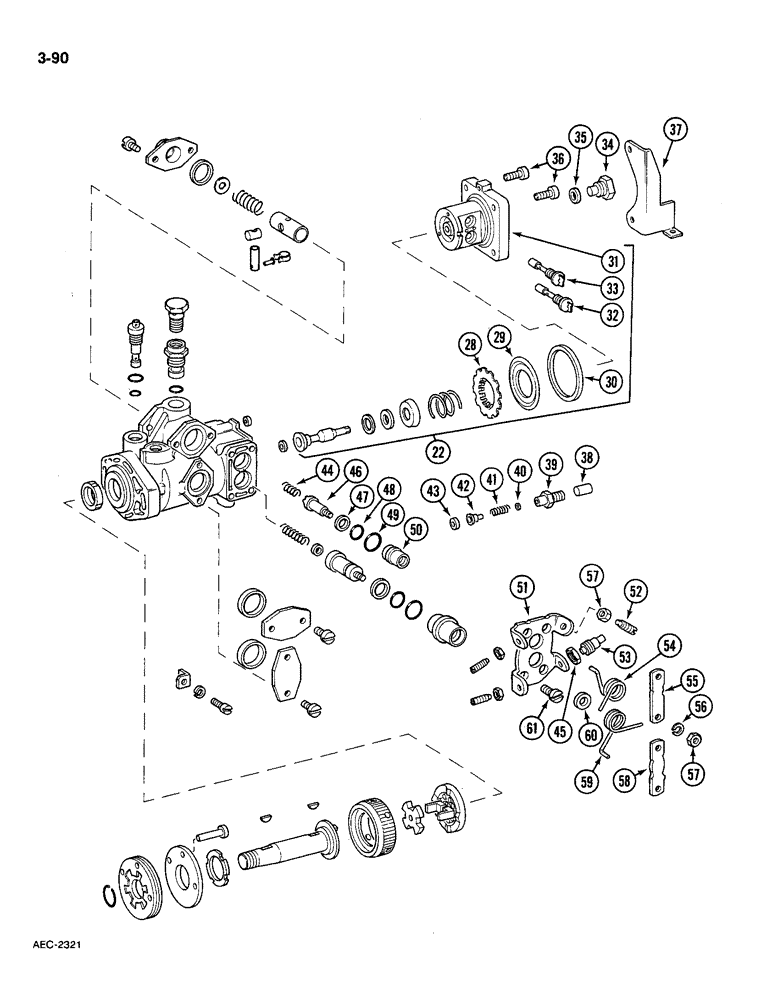

Запчасти Case IH 585 (3-090) - FUEL INJECTION PUMP, VA, BOSCH INJECTION C.R. PUMP CONTD (03) - FUEL SYSTEM

28

3078576R1

SPRING WASHER

spring

1шт.

29

3078578R1

FILTER, FUEL

FILTER

1шт.

30

3078366R1

O-RING

distributor head

1шт.

Part of PACKAGE P/N 3078526R91, Ref. 87, see Figure 3-92

1шт.

31

NSS

NOT SOLD SEPARAT

HEAD

1шт.

32

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

33

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

34

3078514R1

PLUG

Includes: Ref. 35

1шт.

35

3078915R1

RING

packing

1шт.

36

3078600R1

SCREW

pump to distributor head

4шт.

37

3078549R1

SUPPORT

BRACKET support, fuel shut-off cable

1шт.

38

3079097R2

CAP

CAB protection

4шт.

39

3059067R2

HYD CONNECTOR

HOLDER delivery valve

4шт.

40

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

delivery valve

4шт.

41

3132408R1

SPRING

delivery valve

4шт.

42

3059064R1

VALVE

delivery

4шт.

43

3079378R1

WASHER

delivery valve

4шт.

44

3078555R1

SPRING

throttle

1шт.

46

3078517R1

SHAFT

throttle

1шт.

47

3078519R1

WASHER

throttle shaft

1шт.

48

3078354R1

O-RING,2mm Thk x 6.5mm ID

throttle shaft

1шт.

Part of PACKAGE P/N 3078526R91, Ref. 87, see Figure 3-92

1шт.

49

785602R1

O-RING

control plunger and throttle shaft bushing

1шт.

Part of PACKAGE P/N 3078526R91, Ref. 87, see Figure 3-92

1шт.

50

3078556R1

BUSHING

throttle shaft

1шт.

51

3078557R1

PLATE

stop

1шт.

52

3132885R1

BOLT

stop

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6, zinc plated, class 8

1шт.

53

3132251R1

STOP LOCK

SCREW stop

1шт.

3079141R1

NUT

hex, stop screw

1шт.

54

3132588R1

SPRING

torsion throttle shaft

1шт.

55

3132590R1

LEVER

throttle

1шт.

55

3132591R1

LEVER

throttle, Serial Range: (Optional-3132590R1)

1шт.

56

933987R1

LOCK WASHER,M6

WASHER lock, 6 mm

2шт.

57

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6, zinc plated, class 8

1шт.

58

3059077R1

LEVER

control plunger

1шт.

58

3059078R1

LEVER

control plunger, Serial Range: (Optional-3059077R1)

1шт.

59

3132589R1

SPRING

torsion control plunger shaft

1шт.

60

3059076R1

WASHER

control plunger shaft

1шт.

61

931320R1

SCREW,M6 x 12mm, Cl 8.8

flat head, M6 x 12 mm

4шт.
