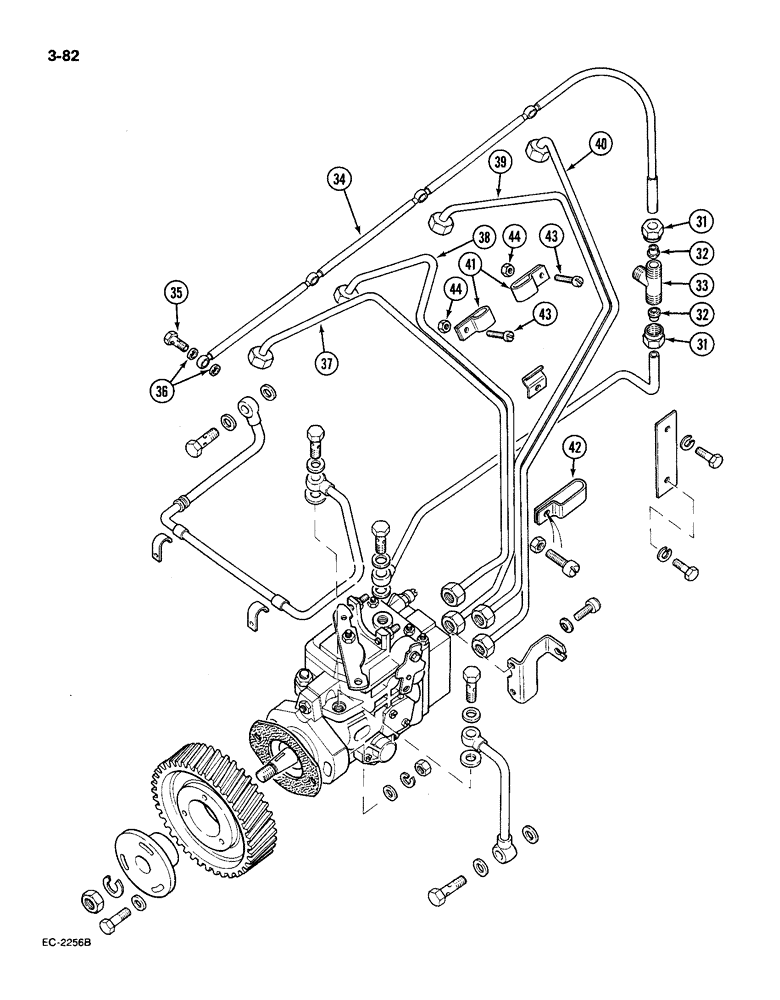

Запчасти Case IH 585 (3-082) - FUEL INJECTION PUMP AND TUBES CONTD (03) - FUEL SYSTEM

31

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT coupling

2шт.

32

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

compression

2шт.

33

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

tee, special

1шт.

34

3218124R1

HOSE

line leak

1шт.

35

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

hollow, inlet union

4шт.

36

933696R1

SEALING RING,M6 x 10 x 1

RING, 6 x 10 mm - sealing

8шт.

37

3218481R1

LINE

PIPE injection, No. 1 cylinder, Engines with VA pump

1шт.

37

1329150C1

INJECTION PIPE

PIPE injection, No. 1 cylinder, Engines with VE pump

1шт.

38

3218482R1

PIPE

injection, No. 2 cylinder, Engines with VA pump

1шт.

38

1329151C1

INJECTION PIPE

PIPE injection, No. 2 cylinder, Engines with VE pump

1шт.

39

3218483R1

PIPE

injection, No. 3 cylinder, Engines with VA pump

1шт.

39

1329152C1

INJECTION PIPE

PIPE injection, No. 3 cylinder, Engines with VE pump

1шт.

40

3218484R1

PIPE

injection, No. 4 cylinder, Engines with VA pump

1шт.

40

1329153C1

INJECTION PIPE

PIPE injection, No. 4 cylinder, Engines with VE pump

1шт.

41

3132770R1

COLLAR

CLAMP pipe

2шт.

41

3218241R1

CLAMP

pipe, Serial Range: (Optional-3132770R1)

2шт.

42

3132768R1

CLAMP

pipe

1шт.

42

3218243R1

CLAMP

pipe, Serial Range: (Optional-3132768R1)

1шт.

43

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

machine, pan head, M6 x 12 mm

3шт.

44

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6, zinc plated, class 8

3шт.
