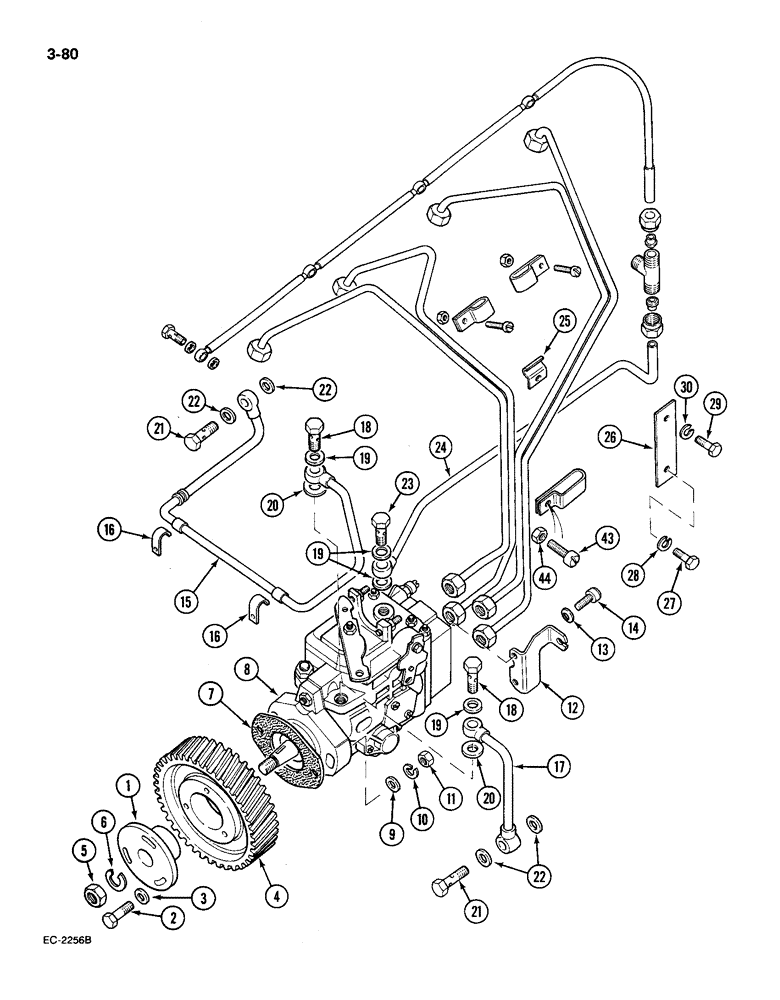

Запчасти Case IH 585 (3-080) - FUEL INJECTION PUMP AND TUBES (03) - FUEL SYSTEM

1

3055067R2

HUB

injection pump gear

1шт.

2

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

hex, 5/16 NC x 3/4 inch

3шт.

3

30183R1

WASHER,M8 x 21.5 x 2.5, HT

flat, 8 mm

3шт.

4

3056885R3

PINION

GEAR injection pump

1шт.

5

933981R1

NUT,M12 x 1.75, Cl 5

Hex M12 x 1.75, Cl 5

1шт.

6

933834R1

LOCK WASHER,M12

WASHER lock, 12 mm

1шт.

7

3055384R1

GASKET

fuel injection pump

1шт.

8

3218604R91

PUMP

fuel injection (VA 4110h 1150 CR 8/3) Engines with VA pump, see Figure 3-86

1шт.

8

1329137C1

PUMP, FUEL INJECTION

PUMP fuel injection, Engines with VE pump

1шт.

9

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

flat, 5/16 inch

2шт.

10

3050129R1

LOCK WASHER

WASHER lock, 5/16 inch

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

2шт.

12

3228735R1

SUPPORT

BRACKET, fuel shut-off cable, Engines with VE pump

1шт.

12

3078549R1

SUPPORT

BRACKET, fuel shut-off cable, Engines with VA pump, see Figure 3-90

1шт.

13

905176R1

WAVE WASHER,M6.4 ID x 11 OD x .5 Thk

- spring bent M6.4 ID x 11 OD x .5 Thk

2шт.

14

930679R1

HEX SOC SCREW,M6 x 25mm, Cl 8.8

- cap, hex socket, M6 x 25 mm, class 8.8

2шт.

15

3228005R1

HOSE

PIPE fuel, Engines with VA pump

1шт.

16

3132052R1

CLIP

CLAMP pipe

2шт.

17

3132324R1

HOSE,8mm ID x 275mm L

PIPE fuel, Engines with VE pump

1шт.

18

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW hollow

1шт.

19

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

3шт.

20

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

21

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW hollow

1шт.

22

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

2шт.

23

3059086R1

BANJO BOLT

SCREW hollow, pump inlet union

1шт.

24

3144382R1

TUBE ASSY.

PIPE overflow, Engines with VA pump

1шт.

24

1329112C1

TUBE

PIPE overflow, Engines with VE pump

1шт.

25

3055386R1

CLAMP

CLIP fuel line

2шт.

26

3132174R1

LINK

fuel line clamping

2шт.

27

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

28

3052189R1

BELLEVILLE WASHER

lock, 1/4 inch

2шт.

29

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

30

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3079101R1

WOODRUFF KEY

KEY woodruff

1шт.
