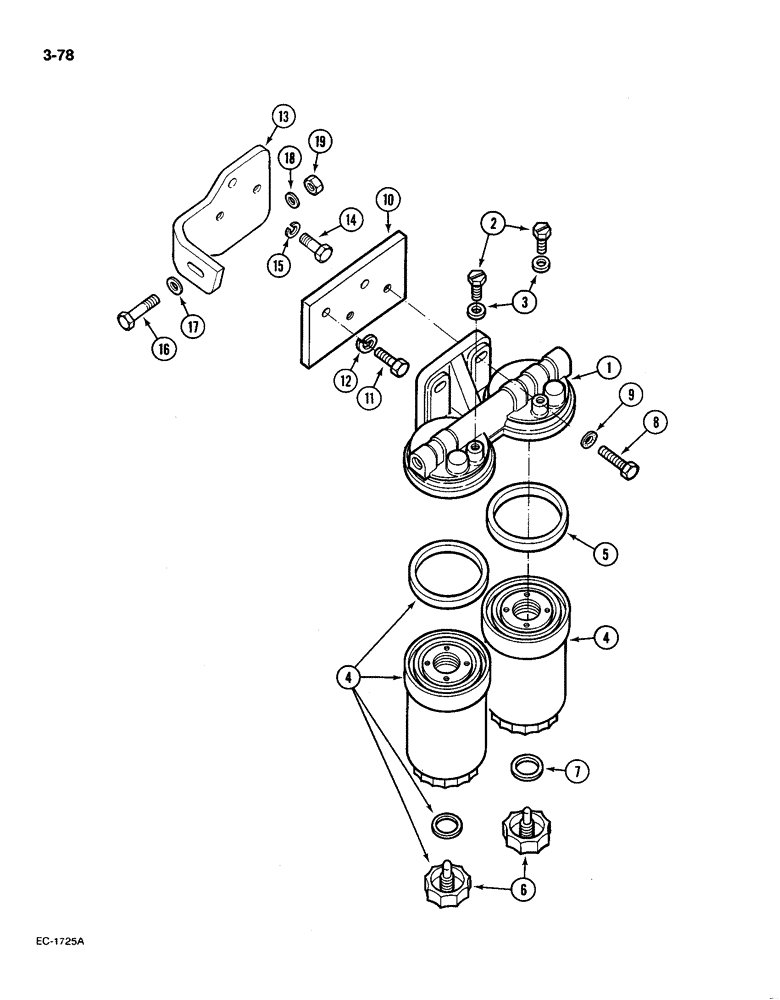

Запчасти Case IH 585 (3-078) - FUEL FILTER, BOSCH, P.I.N. 18001 AND AFTER (03) - FUEL SYSTEM

3144992R91

FILTER, FUEL

FILTER ASSEMBLY Bosch (Replaces 3136300R92)

1шт.

3144992R91

FILTER, FUEL

FILTER fuel (Replaces 3136300R92) Includes: Ref. 1-6

1шт.

1

3132491R1

FILTER HEAD

HEAD filter, has 4 mtg. holes (used with 3136300R92 fuel filter)

1шт.

1

3218072R1

HEAD

filter, has 2 mtg. holes (used with 3144992R91 fuel filter)

1шт.

2

3144780R1

SCREW

2шт.

If 4 holes in head, also use 712616R1 Filler Plug & 933610R1 Packing Ring

1шт.

3

757760R1

RING

packing

2шт.

4

3132428R2

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order 3132428R2MP

ELEMENT filter, with seal, Includes: Ref. 5 and 6

2шт.

5

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING packing

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG drain, 9.8 mm (Champion element)

1шт.

6

3228407R1

PLUG

drain, 7.8 mm (Bosch element) Includes: Ref. 7

1шт.

7

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

sealing (used with 3228470R1)

1шт.

8

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

hex, 3/8 NC x 7/8 inch, grade 5

2шт.

9

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Disc M10.2 ID x 20 OD x 1.1 Thk

2шт.

10

3144225R1

BAR

PLATE filter mounting (engines with VA injection pump

1шт.

11

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

hex, 3/8 NC x 7/8 inch, grade 5

2шт.

12

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

1329085C1

SUPPORT

BRACKET fuel filter (engines with VE injection pump)

1шт.

14

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

hex, 3/8 NC x 7/8 inch, grade 5

1шт.

15

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

17

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

1шт.

18

25543R1

WASHER,.344" x 11/16" x .098", HDN

5/16 inch

1шт.

19

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

1шт.
