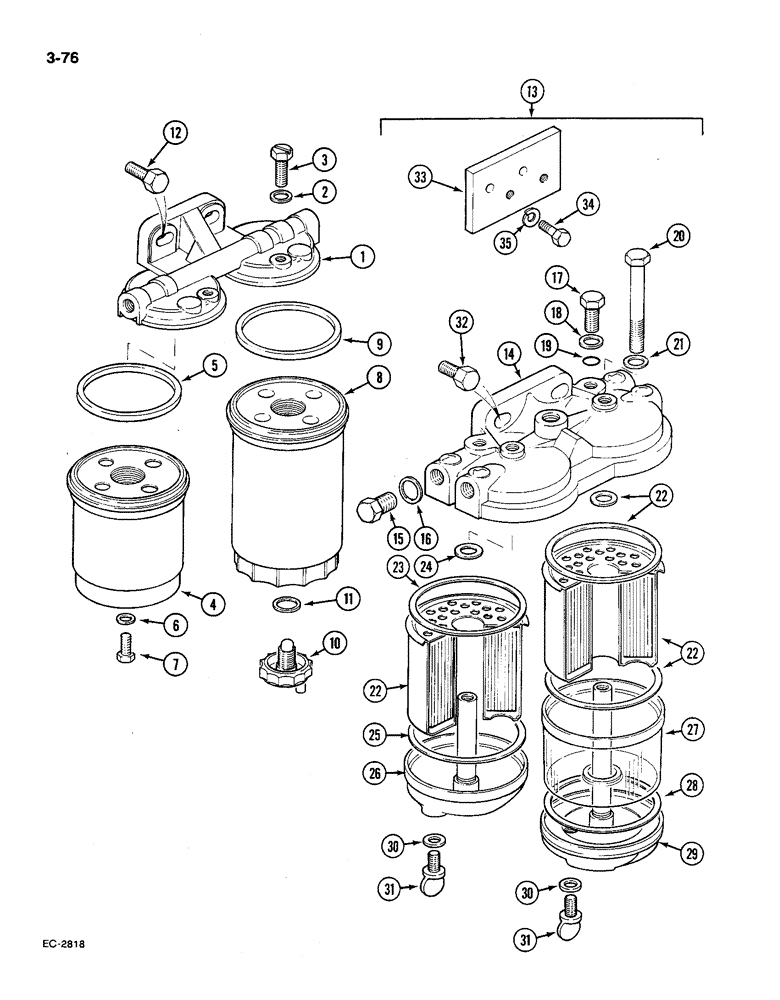

Запчасти Case IH 585 (3-076) - FUEL FILTERS, TWIN, PRIOR TO P.I.N. 18001 (03) - FUEL SYSTEM

3218705R93

FILTER

assembly, fuel, Includes: Ref. 1-11

1шт.

1

3218898R1

HEAD

COVER housing

1шт.

2

757760R1

RING

packing

2шт.

3

3144780R1

SCREW

2шт.

4

3218794R91

FILTER

ELEMENT with seals, Includes: Ref. 5-7

1шт.

5

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING packing

1шт.

6

933696R1

SEALING RING,M6 x 10 x 1

RING, 6 x 10 mm - sealing

1шт.

7

3144780R1

SCREW

1шт.

8

3132428R2

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order 3132428R2MP

ELEMENT with seal, Includes: Ref. 9-11

1шт.

9

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING packing

1шт.

10

3228407R1

PLUG

drain, 7.8 mm, Includes: Ref. 11

1шт.

11

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

sealing

1шт.

12

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex, 3/8 NC x 1-1/8 inch, grade 5

2шт.

13

3138816R93

FILTER ASSY

FILTER fuel, twin, C.A.V. filter, Includes: Ref. 14-31

1шт.

14

3078687R3

COVER ASSY

COVER housing, C.A.V. filter

1шт.

15

3078689R1

PLUG

closing, C.A.V. filter

2шт.

16

3078690R1

SEALING WASHER

sealing, closing plug, C.A.V. filter

2шт.

17

3070770R1

PLUG

air vent, C.A.V. filter

2шт.

18

3049111R1

SEALING WASHER

sealing, vent plug, C.A.V. filter

2шт.

19

796020R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

C.A.V. filter

2шт.

20

3070771R2

BOLT

centre, C.A.V. filter

2шт.

21

3144668R1

SEALING WASHER

C.A.V. filter

2шт.

22

3044506R93

FILTER, FUEL

ELEMENT with seal, C.A.V. filter, Includes: Ref. 23-25

2шт.

23

312890R1

RING filter sealing, C.A.V.

1шт.

24

3044505R1

SEAL

RING element sealing, C.A.V. filter

1шт.

25

3123889R1

SEALING WASHER

WASHER filter bowl sealing, C.A.V.

1шт.

26

3078691R91

COVER

BASE filter (includes studs), C.A.V.

1шт.

27

3069610R1

BOWL

glass, C.A.V. filter

1шт.

28

3123889R1

SEALING WASHER

WASHER filter bowl sealing, C.A.V.

1шт.

29

3078688R91

COVER

BASE filter (includes studs), C.A.V.

1шт.

30

3117039R1

SEALING WASHER

seal, drain plug, C.A.V. filter

2шт.

31

3117038R91

PLUG

drain, with washer, C.A.V. filter

2шт.

32

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8"-16 NC x 1-1/4", G5, C.A.V. filter

2шт.

33

3144225R1

BAR

PLATE filter mounting, C.A.V.

1шт.

34

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

hex, 3/8 NC x 7/8 inch, grade 5, C.A.V. filter

2шт.

35

103321

LOCK WASHER,3/8"

WASHER, LOCK, , C.A.V. filter 3/8"

2шт.
