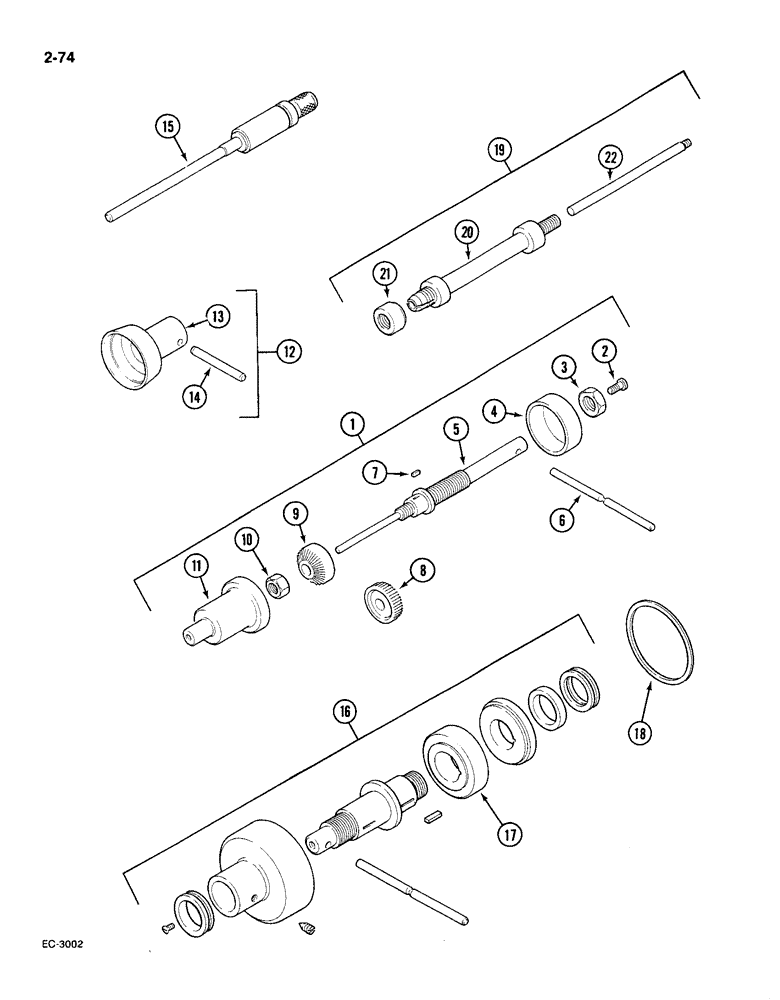

Запчасти Case IH 585 (2-74) - TOOLS, ENGINE SERVICE (02) - ENGINE

1

3132120R91

TOOL KIT

TOOL exhaust valve seat, Includes: Ref. 2-11

1шт.

2

138201

SHAFT

cap, hex socket, 1/4 NC x 3/4 inch

1шт.

3

425-1516

JAM NUT,Jam, 1"-14, G5

hex, 1 inch NF, grade 5

1шт.

4

3132355R1

SPACER

reamer

1шт.

5

3132357R1

SHAFT

reamer

1шт.

6

3132356R1

REAMER

ROD reamer shaft

1шт.

7

932666R1

KEY

1шт.

8

3132358R1

REAMER

TOOL, 0.40 mm oversize

1шт.

8

3132359R1

TOOL

reamer, 0.15 mm oversize

1шт.

9

3132363R1

CUTTER

TOOL tapered reamer

1шт.

10

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

11

3132360R1

BUSHING

ADJUSTER bushing

1шт.

12

3228637R91

TOOL complete crankshaft rear seal, Includes: Ref.13 and 14

1шт.

13

3228638R1

TOOL crankshaft rear seal

1шт.

14

322870R1

PIN, 6 x 70 mm

1шт.

15

3132005R1

TOOL

DRIFT for nozzle holder sleeve, 3055406R1

1шт.

16

3218536R91

REAMER

TOOL cylinder sleeve, Includes: Ref. 17

1шт.

17

3218537R1

CUTTER

cylinder sleeve rework tool

1шт.

18

3218538R1

SHIM

0.05 mm

1шт.

18

3218539R1

SHIM

0.10 mm

1шт.

18

3218540R1

SHIM,112.06mm ID x 118.6mm OD x 0.25mm Thk

0.25 mm

1шт.

18

3218541R1

SHIM

0.50 mm

1шт.

18

3218542R1

SHIM

0.80 mm

1шт.

19

1329159C1

TOOL

ADAPTER dial indicator (VE injection pump static timing), Includes: Ref. 20-22

1шт.

20

1329156C1

BRACKET

SUPPORT dial indicator

1шт.

21

1329157C1

RING

COUPLING dial indicator adapter

1шт.

22

1329158C1

PIN

distance

1шт.
