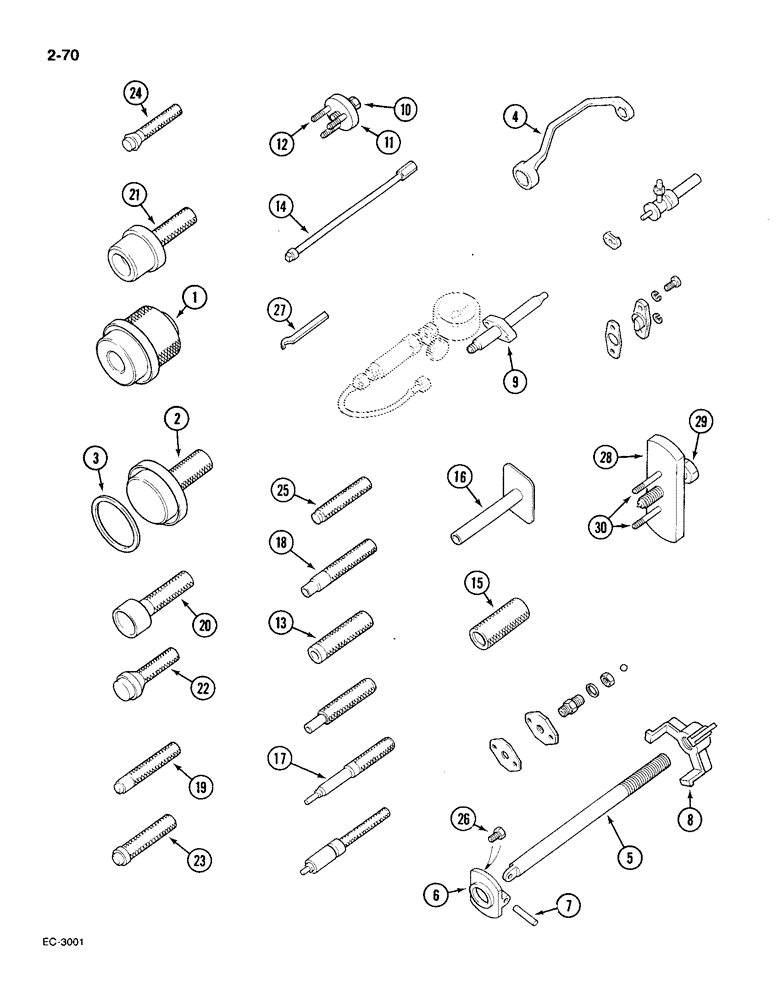

Запчасти Case IH 585 (2-70) - TOOL KITS, ENGINE SERVICE (02) - ENGINE

3055714R98

TOOLS set, engine service, Includes: Ref. 1-30 and P/N 3132743R96

1шт.

Order from OTC. Reference service manual for cross reference

1шт.

3132743R96

TOOLS short set, engine service, Includes: Ref. 1-17

1шт.

1

3228341R1

PUNCH

DRIFT crankshaft front oil seal (front cover fitted)

1шт.

2

3055687R1

PUNCH

DRIFT cylinder block oil seal 3055310R91 or 3138701R91

1шт.

3

3055709R1

DISC

SHIM 1.6 mm (for use with drift 3055687R1)

1шт.

3

3055710R1

SHIM

3.2 mm (for use with drift 3055687R1)

1шт.

3

3228602R1

SHIM

4.7 mm (for use with drift 3055687R1)

1шт.

4

3055794R2

TOOL

WRENCH cranked, 19 mm (cylinder head nuts)

1шт.

4

3055795R2

TOOL

WRENCH cranked, 13/16 inch (cylinder head bolts)

1шт.

5

3055690R1

SPINDLE

cylinder sleeve puller

1шт.

6

3055693R1

PLATE

cylinder sleeve puller

1шт.

7

2700167R1

PIN

joint, cylinder sleeve puller

1шт.

8

3055691R1

TOOL

TRIPOD cylinder sleeve puller

1шт.

9

3055712R1

ADAPTER compression gauge

1шт.

10

2700159R1

SCREW

SPINDLE puller plate, M14 x 35 mm

1шт.

11

2711375R1

PLATE

puller

1шт.

12

2711376R1

BOLT

hex, 5/16 x 44 mm

3шт.

13

3055699R1

TOOL

DRIFT for valve guide 3055022R1

1шт.

14

3055700R1

TOOL

EXTENSION

1шт.

15

3055702R1

BUSHING

DRIFT bushing installation

1шт.

16

3055704R1

TOOL spring compression

1шт.

17

3136223R1

TOOL

DRIFT for nozzle holder sleeve 3132025R1

1шт.

17

3055696R1

TOOL

DRIFT for nozzle holder sleeve3055344R1

1шт.

17

1806089C1

SPACER

(not illustrated)

1шт.

18

3055679R1

TOOL

PUNCH for piston pin

1шт.

19

3055684R1

TOOL

DRIFT for plug 933537R1

1шт.

20

3055688R1

DRIFT for expansion plug 172602 or 172604

1шт.

21

3228342R1

TOOL

DRIFT crankshaft front oil seal (front cover fitted)

1шт.

22

3055694R1

TOOL

DRIFT for plug 933574R1 or 934003R1

1шт.

23

3055695R1

TOOL

DRIFT for plug 933573R1

1шт.

24

3055698R1

TOOL

DRIFT for valve insert

1шт.

25

3055703R1

TOOL

MANDREL for bearing 3055294R1

1шт.

26

102376

SCREW set, headless sltd. oval point

1шт.

27

3055706R1

TOOL

WRENCH hook

1шт.

3055707R91

TOOL

PULLER crankshaft pulley, Includes: Ref. 28-30

1шт.

28

3055708R1

PLATE

puller

1шт.

29

2700154R1

SPINDLE pressure

1шт.

30

22340R1

SCREW,Hex, 5/16"-18 x 2 7/8", G5

BOLT hex, 5/16 NC x 2-7/8 inch, grade 5

2шт.

30

179827

FRONT AXLE

2шт.

30

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

2шт.

30

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.
