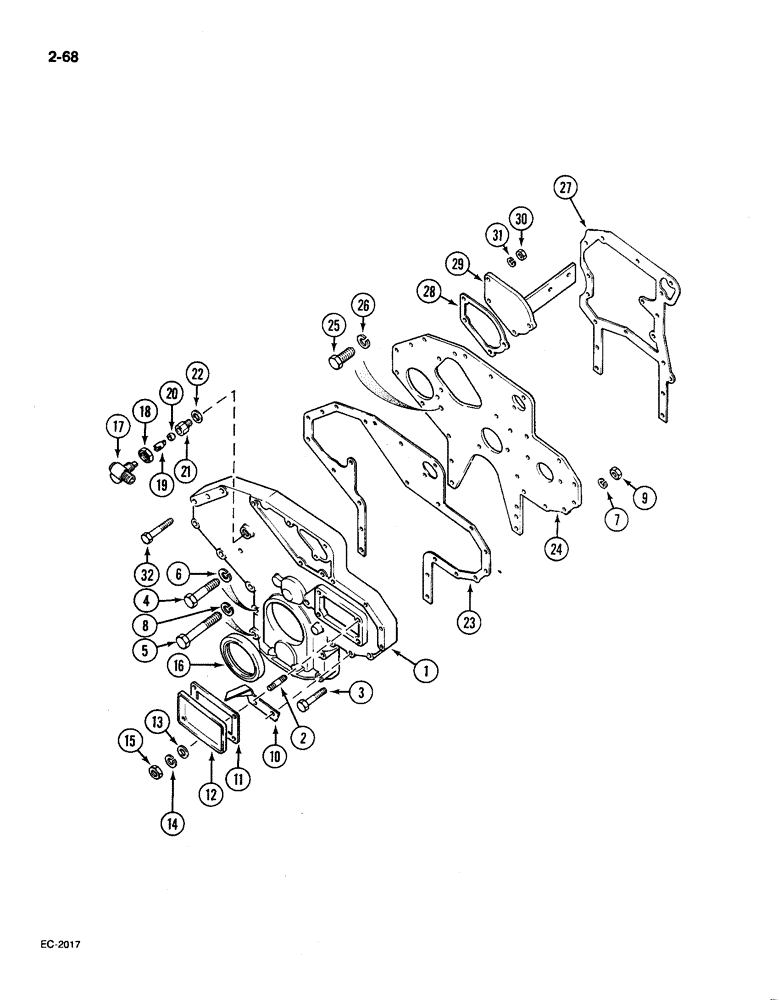

Запчасти Case IH 585 (2-68) - CYLINDER BLOCK FRONT COVER (02) - ENGINE

1

3136057R14

COVER ASSY

COVER cylinder block front, Includes: Ref. 2

1шт.

2

3055242R1

STUD

front cover

4шт.

3

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

8шт.

4

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

5

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

6

3050129R1

LOCK WASHER

WASHER lock, 5/16 inch

4шт.

7

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

6шт.

8

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

6шт.

10

3136040R21

ADJUSTER

INDICATOR timing

1шт.

11

3138640R1

GASKET

injection pump cover

1шт.

12

3055140R1

COVER

injection pump

1шт.

13

131402H

WASHER

plain, 0.344 x 0.562 x 0.054 inch

4шт.

14

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

4шт.

16

3228133R93

SEAL KIT

KIT service, crankshaft oil seal, with instructions (see Figure 2-56)

1шт.

17

3055982R93

DRIVE, ANGLE

DRIVE angle

1шт.

18

3132116R1

NUT

hex, M18

1шт.

19

3056986R1

SUPPORT

COUPLING drive, angle

1шт.

20

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

SEAL oil, radial lip type

1шт.

21

3055983R1

REDUCER FITTING

SPACER

1шт.

22

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

23

3055994R2

GASKET

crankcase front cover

1шт.

24

3055996R11

PLATE ASSY.

PLATE cylinder block front cover

1шт.

25

179814

SPACER

- hex, 5/16 NC x 5/8 inch, grade 5

7шт.

26

3050129R1

LOCK WASHER

WASHER lock, 5/16 inch

7шт.

27

3055239R1

GASKET

front plate

1шт.

28

3132541R2

GASKET

closing cover

1шт.

29

3136049R1

COVER ASSY

COVER closing (Replaces 3132540R1)

1шт.

30

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

4шт.

31

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

32

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.
