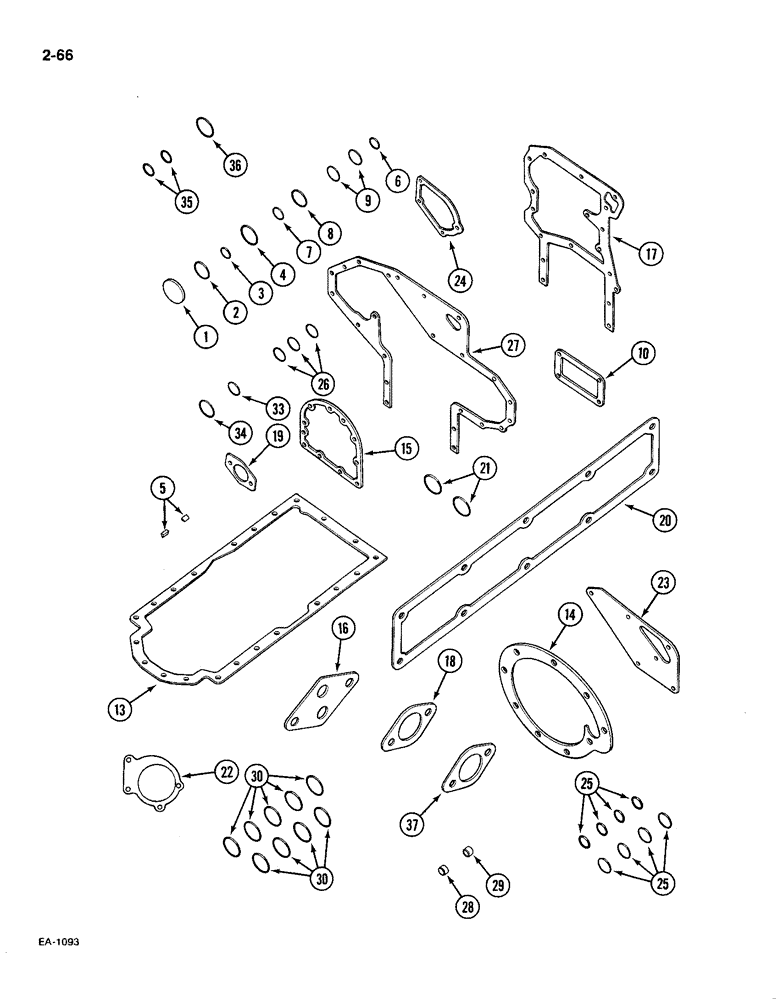

Запчасти Case IH 585 (2-66) - CYLINDER BLOCK GASKET KIT (02) - ENGINE

3136813R99

GASKET KIT

PACKAGE crankcase gasket, Includes: Ref. 1-37

1шт.

1

41-3044

PLUG,Exp, 2 3/4"

expansion, 2-3/4 inch

1шт.

2

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

7/8 x 1-1/16 inch, class 6

1шт.

3

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

Packing M14 x 18 x 1.5

1шт.

4

713778R1

O-RING,3mm Thk x 55mm ID

55 x 61 mm, crankshaft front

1шт.

5

714868R1

SEALING STRIP

sealing

2шт.

6

717222R1

O-RING

11.3 x 16.1 mm

1шт.

7

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

1шт.

8

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, , Oil pan M26 x 31 x 2

1шт.

9

3138687R1

RING

packing

2шт.

10

3138640R1

GASKET

injection pump cover

1шт.

13

3055161R1

GASKET

oil pan

1шт.

14

3055177R1

GASKET

water pump

1шт.

15

3055215R1

GASKET

crankcase oil seal retainer

1шт.

16

3055237R1

GASKET

oil filter socket

1шт.

17

3055239R1

GASKET

front plate

1шт.

18

3138639R1

GASKET

crankcase breather

1шт.

19

3055384R1

GASKET

fuel injection pump

1шт.

20

3055393R3

GASKET

side cover

1шт.

21

3055952R2

O-RING

RING oil pump sealing

2шт.

22

3055961R1

GASKET

oil pump

1шт.

23

3055999R2

GASKET

water pump carrier

1шт.

24

3132541R2

GASKET

closing cover

1шт.

25

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

8шт.

26

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

3шт.

27

3055994R2

GASKET

crankcase front cover

1шт.

28

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

SEAL oil, radial lip type

1шт.

29

784162R91

SEALING RING

SEAL tachometer drive (Optional, Serial Range: -3052295R91)

1шт.

30

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

oil pump sealing

3шт.

33

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

34

3055389R2

O-RING,2.5mm Thk x 32mm ID, 70 Duro

1шт.

35

3132869R1

O-RING

2шт.

36

(Not used this application)

1шт.

37

3136406R1

GASKET

cover

1шт.
