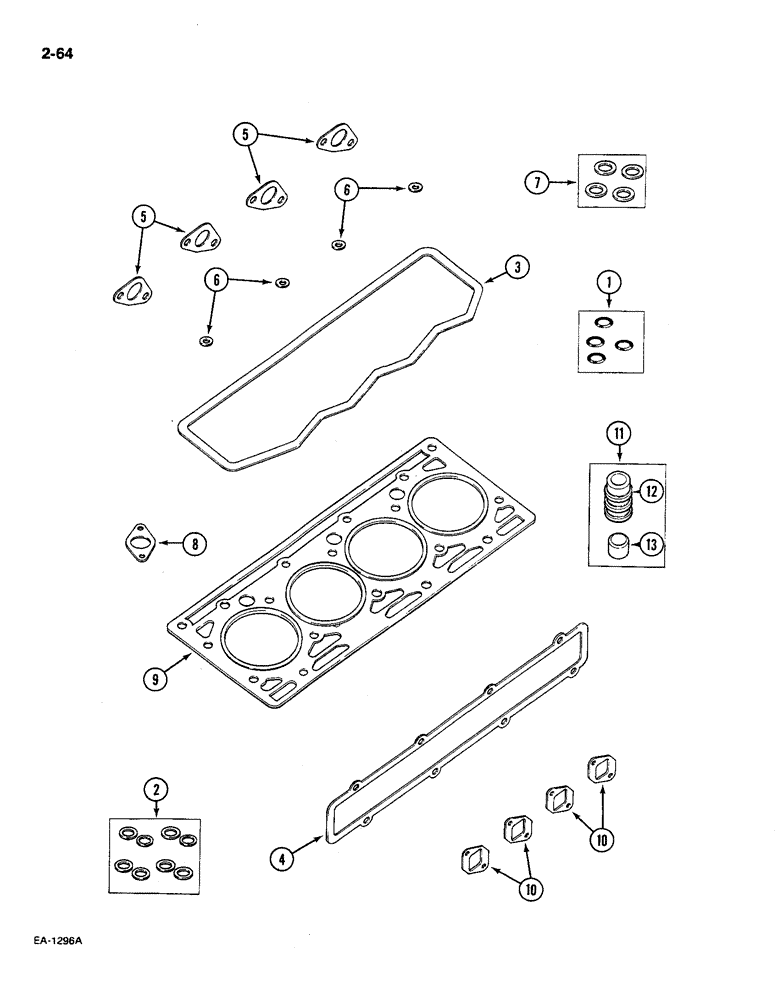

Запчасти Case IH 585 (2-64) - CYLINDER HEAD GASKET KIT (02) - ENGINE

3136799R99

GASKET KIT

PACKAGE cylinder head gaskets (Replaced by 1967014C1)

1шт.

1967014C1

CYLINDER HEAD GASKET

KIT cylinder head gaskets. (Replaces 3136799R99), Includes: Ref. 1-13

1шт.

1

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

4шт.

2

3053133R1

SEALING RING,M8 x 11.5 x 1

RING packing, 8 x 11.5 mm

8шт.

3

3138642R1

GASKET

valve housing cover

1шт.

4

3055398R2

MANIFOLD GASKET

intake manifold

1шт.

5

3055306R2

GASKET

manifold, water collecting

4шт.

6

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

valve cover

4шт.

7

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

RING packing

4шт.

8

3132143R2

GASKET,1mm Thk

water outlet flange

1шт.

9

3228362R2

CYLINDER HEAD GASKET

GASKET cylinder head

1шт.

10

3132434R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold

4шт.

11

3228677R91

SEAL

KIT service, valve stem seal, Includes: Ref. 12 and 13

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL valve stem

8шт.

13

3132420R1

SLEEVE

valve stem installation

1шт.
