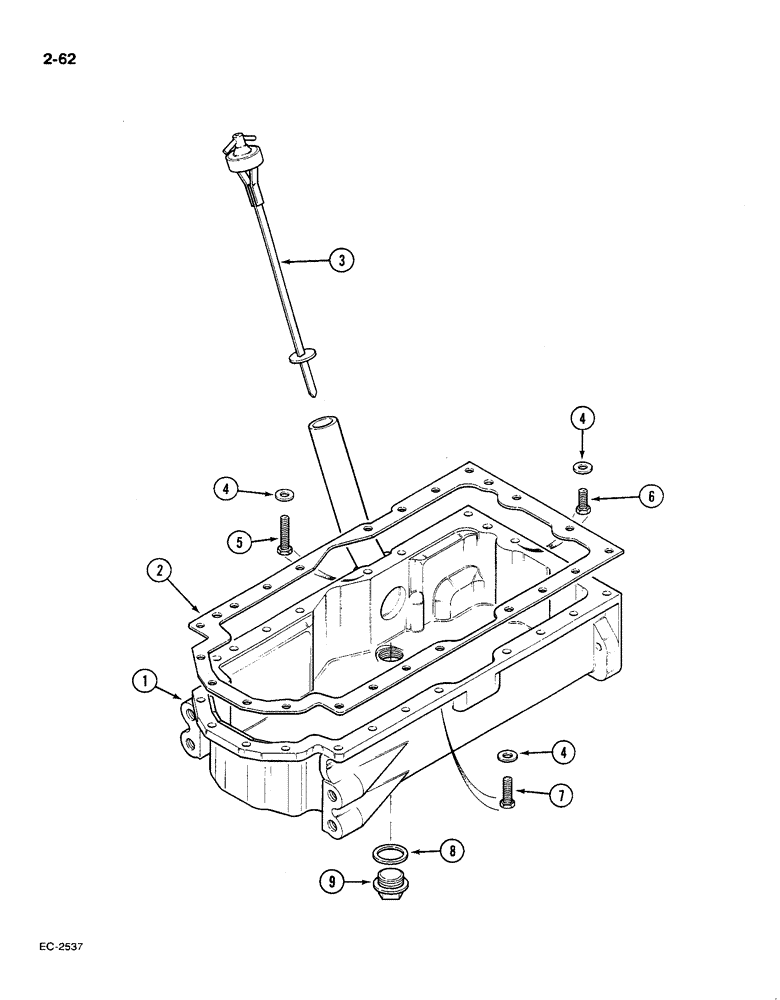

Запчасти Case IH 585 (2-62) - CYLINDER BLOCK OIL PAN (02) - ENGINE

1

1806777C91

PAN, ENGINE OIL

PAN oil. Oil filler tube for this pan is P/N 3136241R1

1шт.

2

3055161R1

GASKET

oil pan

1шт.

3

1329040C1

DIPSTICK

GAUGE oil level

1шт.

4

27326R1

WASHER,.344" x 11/16" x .089", HDN

hardened, 0.344 x 0.688 x 0.089 inch

22шт.

5

181101

BOLT,Hex, 5/16" - 18 x 3", Gr 5

hex, 5/16"-18 NC x 3", grade 5

2шт.

6

181088

BOLT (SPREADER),Hex, 5/16" - 18 x 1", Gr 5

BOLT, hex, 5/16"-18 NC x 1", grade 5

2шт.

7

181089

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

hex, 5/16 NC x 1-1/8 inch, grade 5

18шт.

8

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, (See Figure 2-66) M26 x 31 x 2

1шт.

9

3132544R2

PLUG

1шт.
