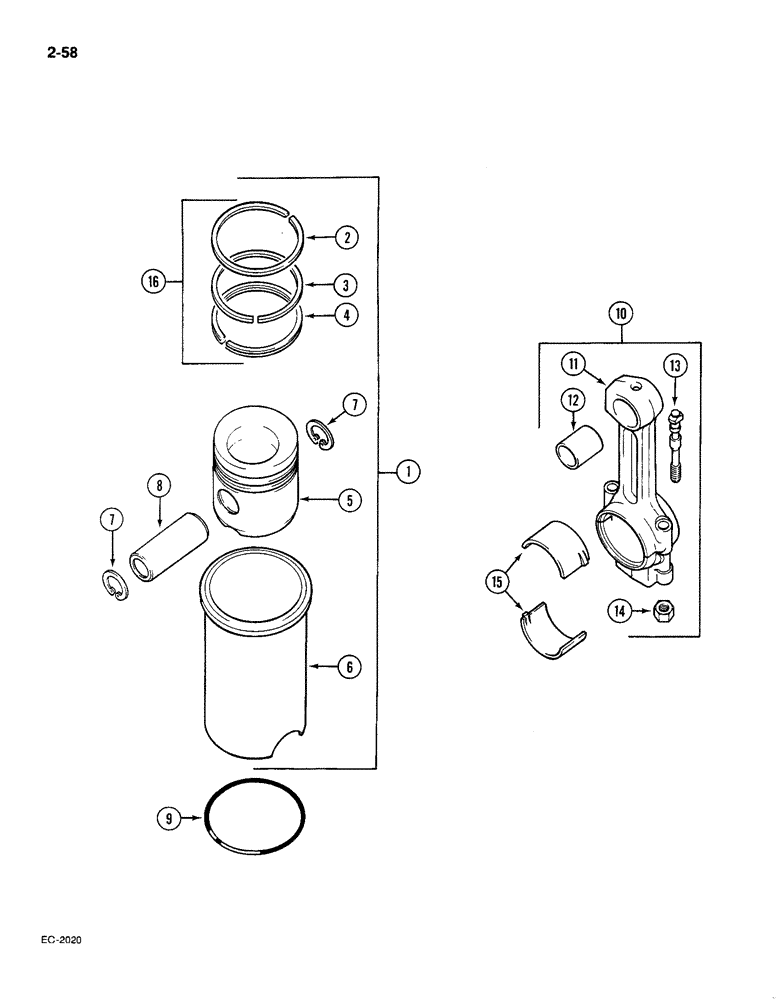

Запчасти Case IH 585 (2-58) - CONNECTING ROD, PISTON AND SLEEVE (02) - ENGINE

1

3218758R95

SLEEVE ASSY

PISTON complete with sleeve, Includes: Ref. 2-8

4шт.

2

NSS

NOT SOLD SEPARAT

RING compression, first (Order set 3218416R92)

1шт.

Part of P/N 3218416R92 piston ring set

1шт.

3

NSS

NOT SOLD SEPARAT

RING compression, second (Order set 3218416R92)

1шт.

Part of P/N 3218416R92 piston ring set

1шт.

4

NSS

NOT SOLD SEPARAT

RING compression, third (Order set 3218416R92)

1шт.

Part of P/N 3218416R92 piston ring set

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON

1шт.

6

3139587R3

SLEEVE CYLINDER

4шт.

7

933327R1

SNAP RING,M36, Int

RING retaining

8шт.

8

3055217R2

PISTON PIN

PIN piston

4шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

packing, cylinder sleeve

4шт.

10

3055029R24

CONNECTING ROD

ROD connecting, complete, Includes: Ref. 11-14

4шт.

11

NSS

NOT SOLD SEPARAT

CONNECTING ROD

1шт.

12

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

piston pin

1шт.

13

3055033R11

BOLT

- Connecting rod, with nut, Includes Ref 14

1шт.

14

NSS

NOT SOLD SEPARAT

NUT connecting rod bolt

1шт.

15

3055351R91

BEARING ASSY

BEARING connecting rod, standard size

4шт.

16

3218416R92

PISTON RING SET

RING SET piston, chrome. Consists of: Ref. 2, 3 and 4

1шт.
