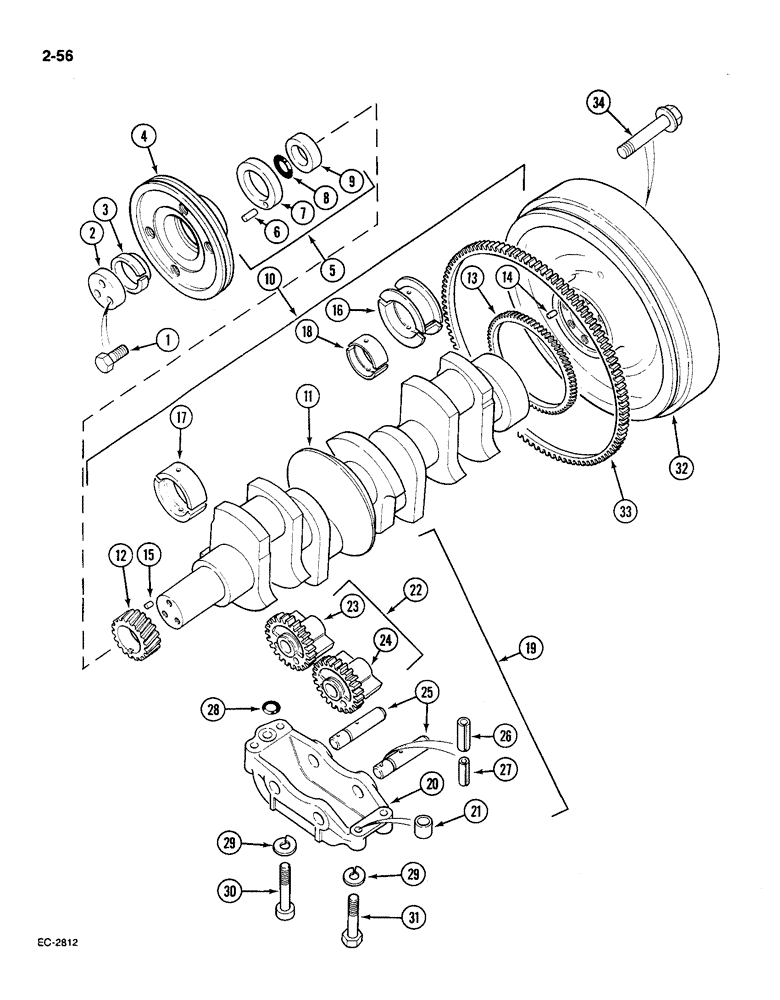

Запчасти Case IH 585 (2-56) - CRANKSHAFT, BALANCER AND FLYWHEEL (02) - ENGINE

1

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

2

3055154R1

WASHER

pressure

1шт.

3

3138874R1

BEARING WASHER

RING clamping

1шт.

4

3138838R3

PULLEY

crankshaft

1шт.

5

3228133R93

SEAL KIT

KIT service, crankshaft oil seal, with instructions, Includes: Ref. 6-9

1шт.

6

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

6

932652R1

DOWEL,4mm OD x 28mm L

PIN dowel, 4 x 28 mm

1шт.

6

932224R1

DOWEL,M4 x 32, Oval

PIN dowel, 4 x 32 mm

1шт.

7

NSS

NOT SOLD SEPARAT

RETAINER distance

1шт.

8

713778R1

O-RING,3mm Thk x 55mm ID

55 x 61mm

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL radial lip, crankshaft front

1шт.

10

1329196C1

CRANKSHAFT

standard, complete (Replaces 3132968R93), Includes: Ref. 11-18

1шт.

You must determine if you have a D206 or a D239 engine, for D206 refer to the 595 book. D239 was used in 585 early production

1шт.

11

NSS

NOT SOLD SEPARAT

CRANKSHAFT standard, Includes: Ref. 12-15

1шт.

12

3055028R1

PINION

GEAR pinion, crankshaft, 33 teeth

1шт.

13

3136237R1

PINION

GEAR balancer drive, 80 teeth

1шт.

14

NLS

NO LONGER SERVICED

PIN dowel, 3/8 x 7/8 inch

1шт.

15

932169R1

LOCK PIN,M4 x 10, Slotted

Spring M4 x 10, Slotted

1шт.

16

3055129R21

CRANKSHAFT BEARING

BEARING main, standard

1шт.

17

3055130R21

CRANKSHAFT BEARING

BEARING main, standard

4шт.

18

3055351R91

BEARING ASSY

BEARING connnecting rod, standard size

4шт.

19

3228366R91

BALANCER

complete assembly, Includes: Ref. 20-27

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING balancer, Includes: Ref. 21

1шт.

21

3055174R1

BUSHING

dowel

2шт.

22

3228372R91

BALANCING WEIGHT

WEIGHT balancer, matched set, Includes: Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

WEIGHT idler

1шт.

24

NSS

NOT SOLD SEPARAT

WEIGHT drive

1шт.

25

3132878R11

PIN,23mm OD x 93mm L

SHAFT balancer weight

2шт.

26

932229R1

SPLIT PIN/SAFETY PIN

PIN slotted spring, 4 x 20 mm

2шт.

27

932299R1

LOCK PIN,M2.5 x 20, Slotted

Spring M2.5 x 20, Slotted

2шт.

28

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

7/8 x 1-1/16 inch, class 6

1шт.

29

3218543R1

LOCK WASHER

lock, 7/16 inch

4шт.

30

24933R1

HEX SOC SCREW,7/16"-14 x 3 3/4"

1шт.

31

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

31

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

hex, 7/16 NC x 2-1/4 inch, grade 5

1шт.

31

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

1шт.

32

3136044R42

FLYWHEEL WITH GEAR

FLYWHEEL (tractors with 11 inch clutch)

1шт.

32

1808412C92

FLYWHEEL WITH GEAR

FLYWHEEL complete with ring gear, for a 12 inch clutch, Includes: Ref. 33

1шт.

33

60883H

RING GEAR

GEAR ring

1шт.

34

3144213R1

BOLT,Hex, 1/2" - 20 x 53mm

- Flywheel mounting (Use with flywheel 1808412C91)

7шт.

34

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

- Flywheel (Use with flywheel 3136044R42)

7шт.
