(2-54) - OIL FILTER, ENGINE

Запчасти Case IH 585 (2-54) - OIL FILTER, ENGINE (02) - ENGINE

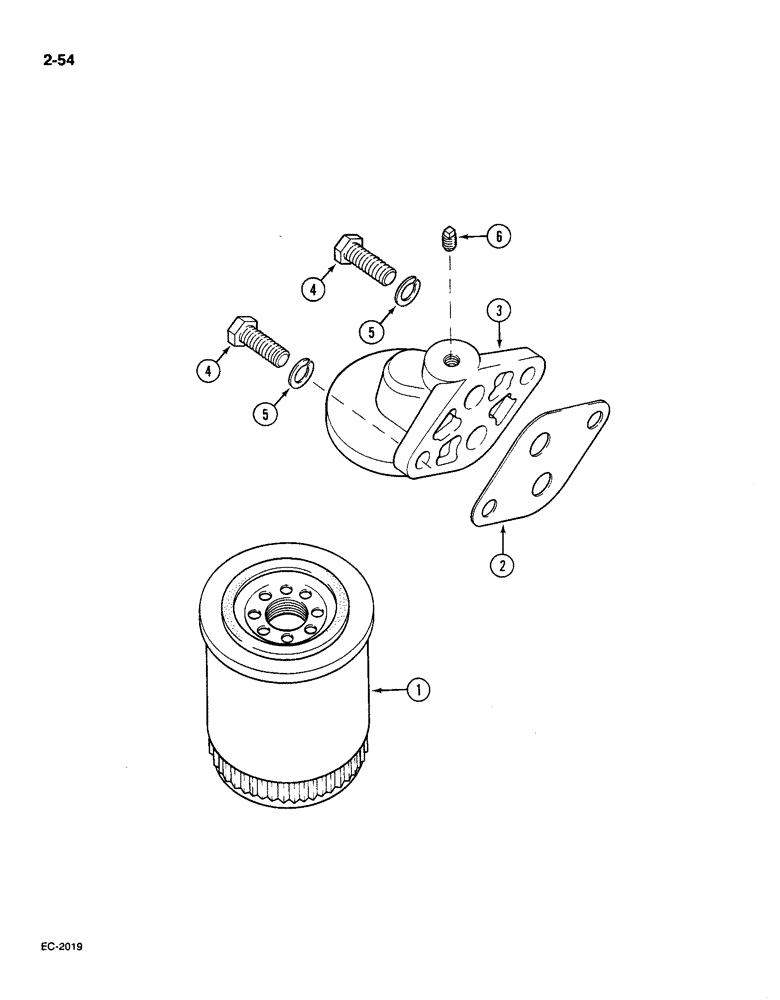

Схема запчастей Case IH 585 - (2-54) - OIL FILTER, ENGINE (02) - ENGINE
2
4
5
5
3
1
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3136046R93

FILTER, ENGINE OIL

FILTER oil

1шт.

1

398080R2

ENGINE OIL FILTER

FILTER oil, Serial Range: (Optional-3136046R93)

1шт.

2

3055237R1

GASKET

oil filter socket

1шт.

3

3136047R1

HEAD

SOCKET oil filter

1шт.

4

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch, grade 5

2шт.

5

3144513R1

SPRING WASHER

WASHER disc spring type

2шт.

6

445684

PLUG

automotive square, 1/8 inch NPTF

1шт.
