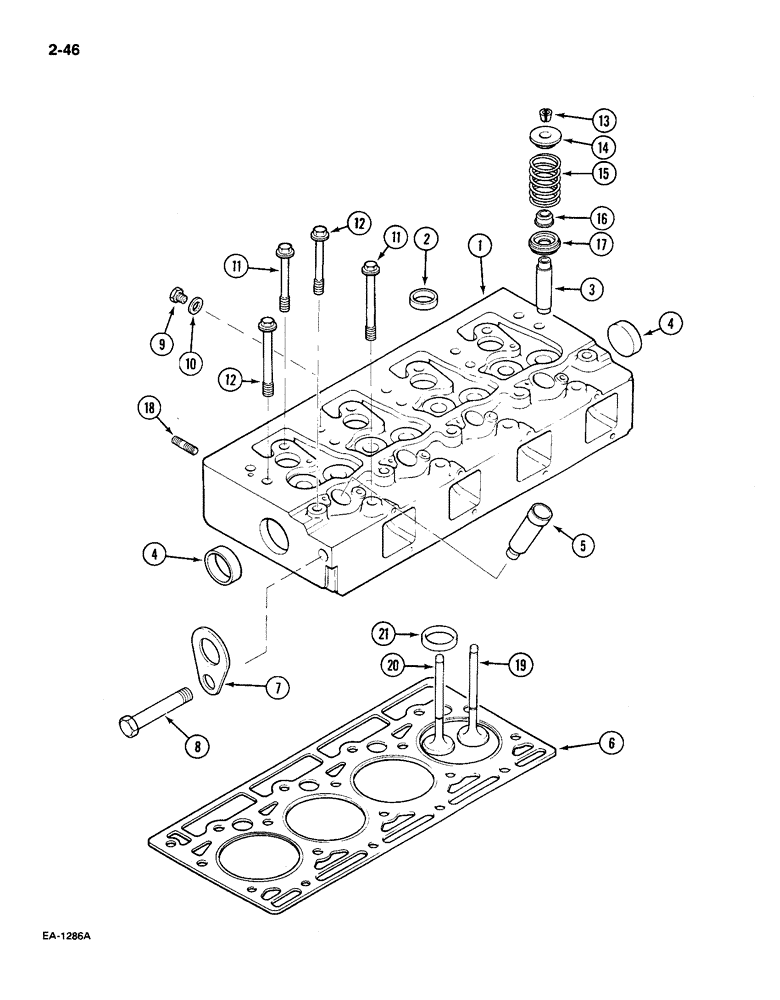

Запчасти Case IH 585 (2-46) - CYLINDER HEAD, VALVES AND STUDS (02) - ENGINE

1

3055367R97

HEAD (CYLINDER)

HEAD cylinder, Includes: Ref. 2-5

1шт.

2

933537R1

PLUG,M25, Conical

cup

4шт.

3

3055022R2

VALVE GUIDE

GUIDE valve stem

8шт.

4

934003R1

PLUG,M52, Conical

expansion

2шт.

5

3055344R1

SLEEVE

INSERT nozzle holder

4шт.

6

3228362R2

CYLINDER HEAD GASKET

GASKET cylinder head (see Figure 2-64)

1шт.

7

3055370R1

STIRRUP

SHACKLE engine mounting, front

1шт.

8

13-1218

BOLT,Hex, 3/4" - 10 x 1-1/8", Gr 5

hex, 3/4 NC x 1-1/8 inch

1шт.

9

934259R1

PLUG,Hex, M10 x 1

1шт.

10

718743R1

SEALING RING,M10 x 16 x 1

Ring M10 x 16 x 1

1шт.

11

3138747R1

BOLT,Cyl Hd, 9/16" - 12 x 123mm

cylinder head

8шт.

12

3138748R1

BOLT,Flng, 9/16" - 12 x 5-3/4"

BOLT cylinder head

10шт.

13

3055057R91

ROCKER ARM COTTER

KEY spring lock valve

16шт.

14

3055058R2

SPRING CUP

CAP valve spring retainer

8шт.

15

3055060R1

SPRING

valve

8шт.

16

3228677R91

SEAL

KIT service, valve stem seal (see Figure 2-64)

1шт.

17

3055059R91

CAP

VALVE rotator

8шт.

18

3055663R1

STUD

exhaust manifold, 3/8 NF x 3/8 NC x 38mm, without coolant filter

8шт.

18

3055663R1

STUD

exhaust manifold, 3/8 NF x 3/8 NC x 38mm, with coolant filter

6шт.

18

3228188R1

STUD

exhaust manifold, with coolant filter

2шт.

19

3055055R2

OVERSIZE INLET VALVE

VALVE intake

4шт.

20

3055056R2

STD EXHAUST VALVE

VALVE exhaust

4шт.

21

3132361R1

INSERT

seat, exhaust valve, 0.016 inch oversize

1шт.

21

3132362R1

VALVE SEAT

INSERT seat, exhaust valve, 0.006 inch oversize

1шт.
