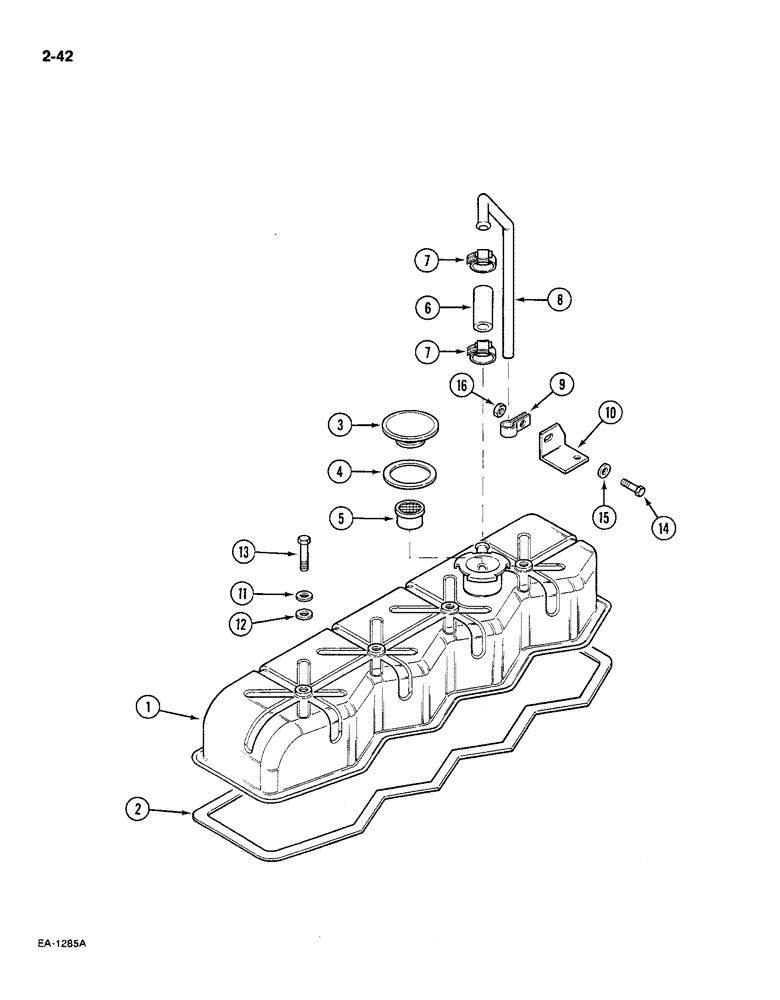

Запчасти Case IH 585 (2-42) - VALVE HOUSING COVER, ENGINE (02) - ENGINE

1

1806831C1

VALVE COVER

COVER valve housing

1шт.

2

3138642R1

GASKET

valve housing cover

1шт.

3

3136337R91

COVER

CAP breather

1шт.

4

3136338R1

GASKET,45mm ID x 68mm OD x 2.3mm Thk

breather cap

1шт.

5

3136336R1

FILTER

STRAINER insert, breather

1шт.

16

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

1шт.

6

1806928C1

HOSE

connecting

1шт.

7

3143364R1

CLAMP,19mm - 23mm

hose

2шт.

8

1806992C1

TUBE,18 mm OD

breather

1шт.

9

3144023R1

CLAMP

1шт.

10

1806993C1

SUPPORT

BRACKET breather tube clamp

1шт.

11

3138637R1

CUP WASHER

WASHER valve cover

4шт.

12

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

valve cover

4шт.

13

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

- hex, 5/16"-18 NC x 4-1/2", grade 5

4шт.

14

181088

BOLT (SPREADER),Hex, 5/16" - 18 x 1", Gr 5

BOLT, hex, 5/16"-18 NC x 1", grade 5

1шт.

15

27326R1

WASHER,.344" x 11/16" x .089", HDN

hardened, 0.344 x 0.688 x 0.089 inch

2шт.
