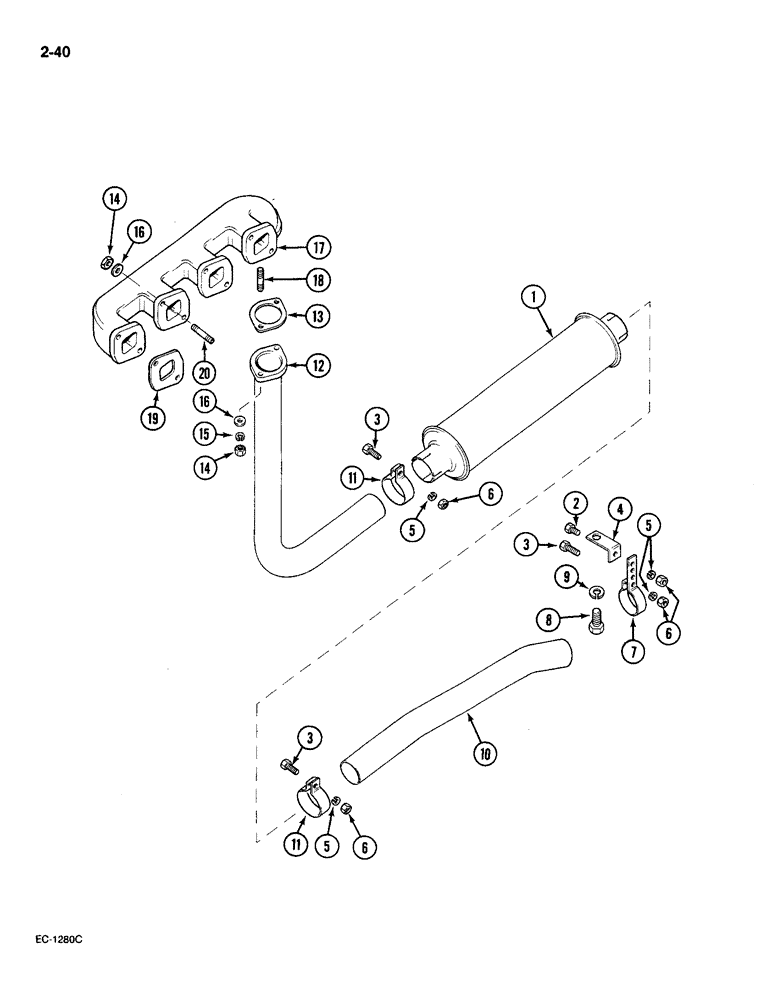

Запчасти Case IH 585 (2-40) - EXHAUST AND MANIFOLD, UNDERSLUNG, P.I.N. 18001 AND AFTER (02) - ENGINE

1

401489R2

MUFFLER

1шт.

2

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

hex, 3/8 NC x 7/8 inch, grade 5

1шт.

3

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

hex, 3/8 NC x 1-1/8 inch, grade 5

3шт.

4

90156C1

GUARD

BRACKET

1шт.

5

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

120377

NUT,3/8" - 16, Gr 5

4шт.

7

90157C1

SUPPORT

tail pipe, rear

1шт.

8

271714

BOLT,Hex, 5/8" - 11 x 7/8", Gr 5

hex, 5/8 NC x 7/8 inch, grade 5

1шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

90155C1

EXHAUST SYSTEM PIPE

PIPE tail

1шт.

11

67672C1

CLAMP

pipe

2шт.

12

82864C1

TUBE,546.5 mm Length

PIPE exhaust manifold

1шт.

13

401486R1

MANIFOLD GASKET

exhaust manifold pipe

1шт.

14

103026

NUT,3/8"-24, G5

8шт.

15

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

20285H

WASHER

plain, 0.406 x 0.75 x 0.105 inch

10шт.

17

3055276R12

MANIFOLD ASSY

MANIFOLD exhaust

1шт.

18

3055663R1

STUD

exhaust manifold, 3/8 NF x 3/8 NC x 38 mm

2шт.

19

3132434R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold

4шт.

20

NSS

NOT SOLD SEPARAT

STUD exhaust manifold (see Figure 2-46)

8шт.
